2 Fan/Fan Transformer Replacement – Frame 6
*PN-36158*
PN-36158

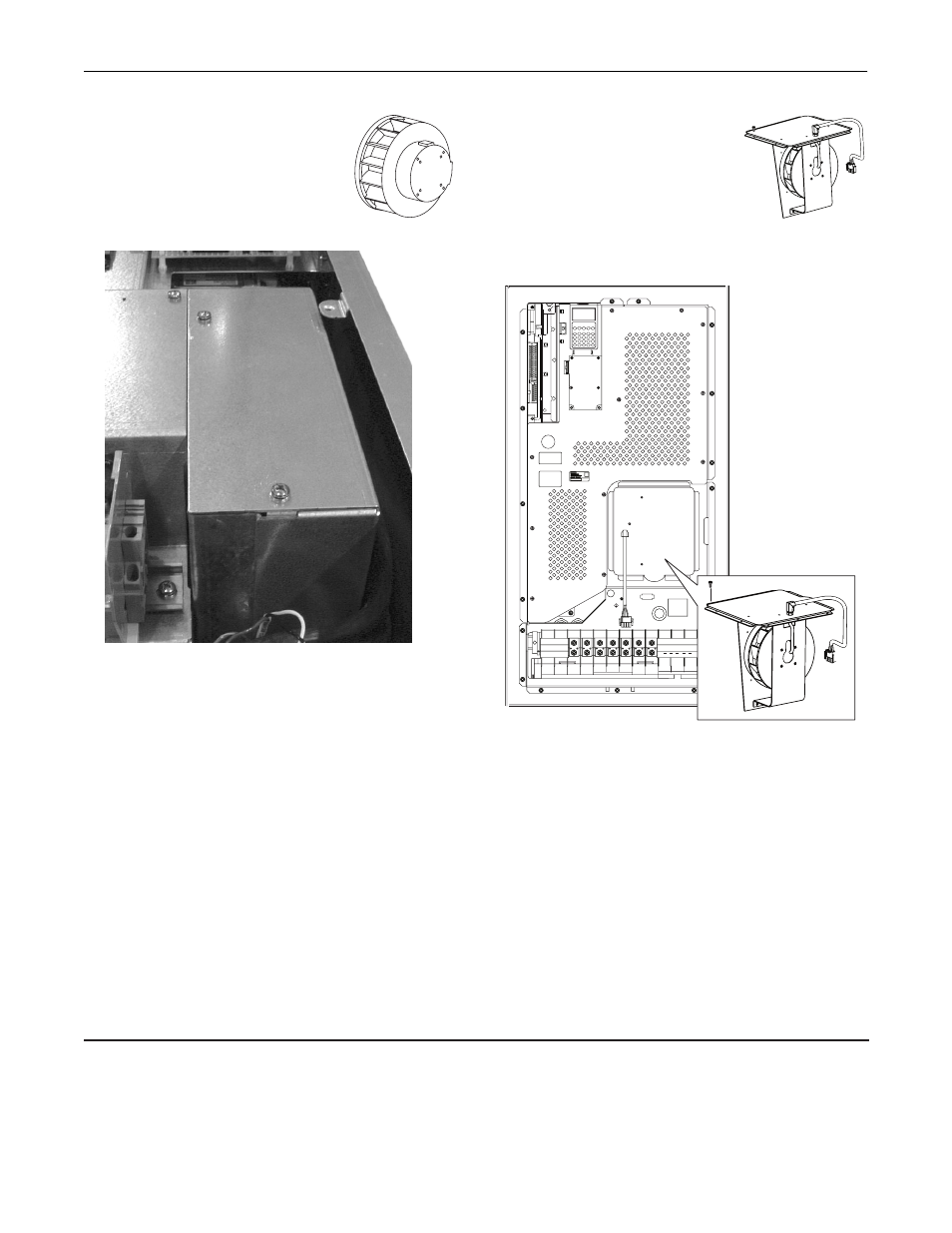

Fan Replacement - IP00, NEMA/UL
Type 1
A. Remove the two screws securing the
fan cover.
Figure 2
B. Pull-up fan enclosure and disconnect wires.
C. Remove fan assembly and replace fan.
D. Re-assemble in reverse order. Tighten all screws to
3.2 N-m (28 lb.-in.).
Fan Replacement - IP54, NEMA/UL
Type 12
A. Locate the Fan Assembly and
disconnect the cable. Remove the
10 screws that secure the assembly.
Pull the Fan Assembly straight out
and discard.
Figure 3
B. Install the new fan in reverse order.
C. Tighten all screws to 3.2 N-m (28 lb.-in.).
U
T1
DC- DC+ BR1 BR2 V
T2
W
T3
R
L1
S
L2
OUTPUT
T
L3
PE PE
USE 75C COPPER WIRE ONLY, TORQUE 52 IN-LB (6 N-M) 22-12 A
W G
5.3 IN-LB (0.6 N-M)
PS+ PS-
WIRE STRIP
x 10
