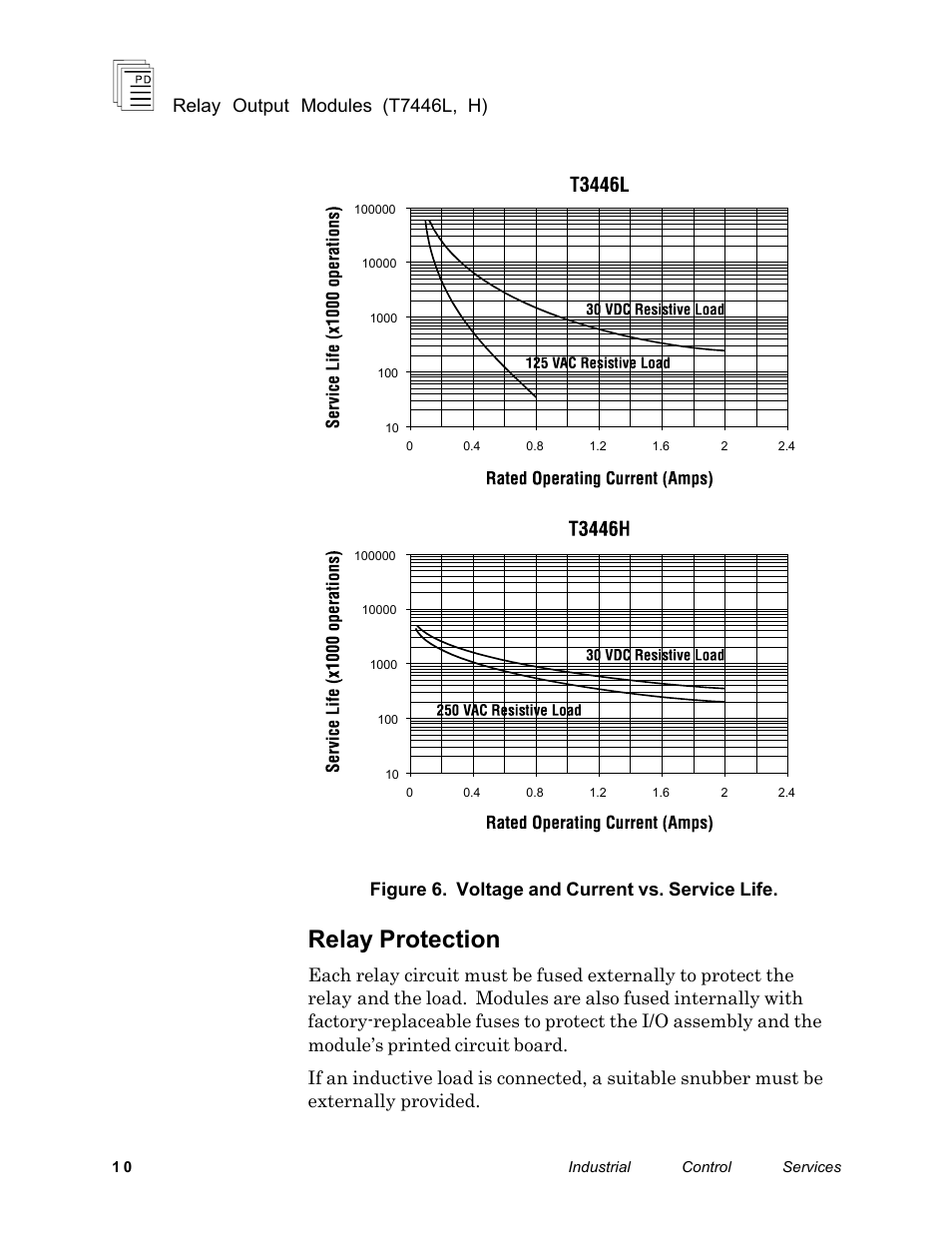

Relay protection, Relay output modules (t7446l, h), Figure 6. voltage and current vs. service life – Rockwell Automation T7446L_H ICS Regent+Plus Relay Output Modules User Manual
Page 10
