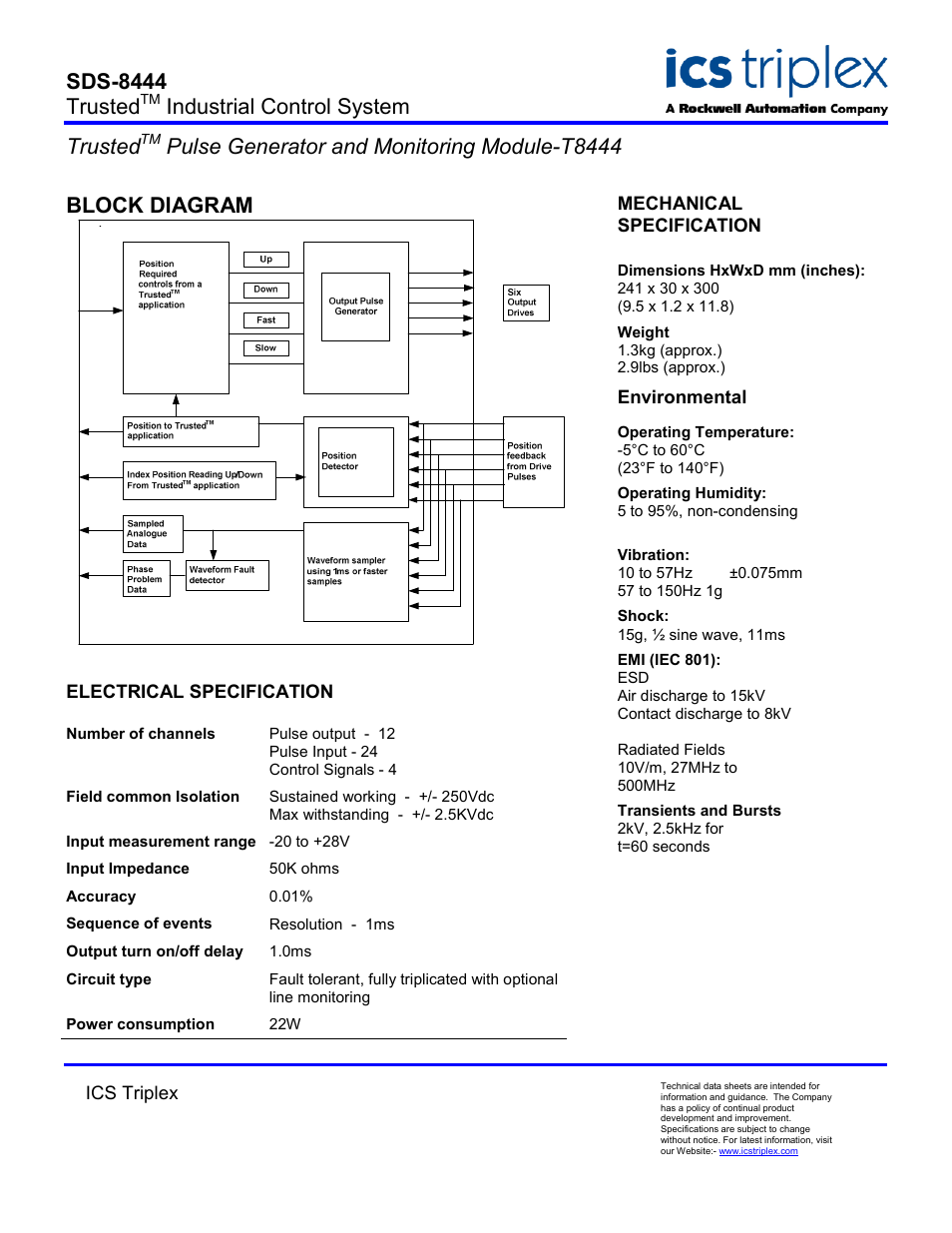

Block diagram, Electrical specification, Sds-8444 trusted – Rockwell Automation T8444 Trusted Pulse Generator and Monitoring Module User Manual
Page 2: Industrial control system trusted, Pulse generator and monitoring module-t8444
