Rockwell Automation T8845 Trusted 40 Channel Analogue or Digital Output Versatile FTA - Manual (Page 7)

Trusted
TM
Digital Output Versatile FTA T8845
Issue 5 Sep 05 PD-T8845 7
1. Description
The T8845 Trusted TM 40 Channel Analogue or Digital Output Versatile FTA provides termination for a
maximum of 40 output field loops. The 40 channels are arranged in five groups each comprising eight
identical channels. Figure 2 below shows the configuration of a single channel within a group.

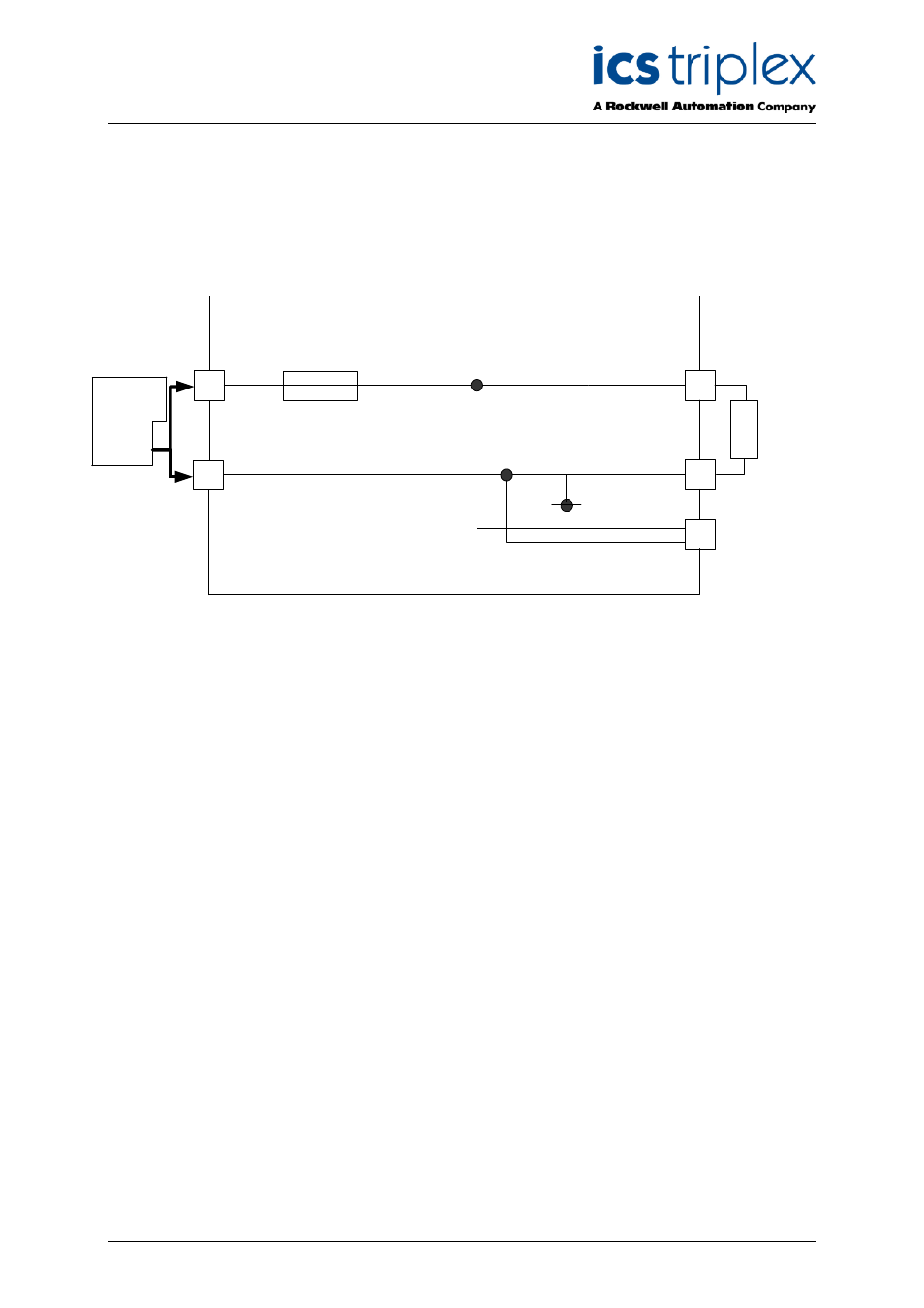

Figure 2 Single Channel Schematic
The field power supply terminals available on the VFTA are not used in this application.
The output signal to the field device is fed via the 2A fuse.
The cable linking the 40 channels on the output module to the VFTA is terminated at five 10-way
connectors (TBG1 to TBG5). SmartSlot (Version 1) signals from the module are connected to a single
7-way connector (TBGSS). Forty 3-way connectors are used for the field loops (TB1 to TB40).
2A
OV
SmartSlot Version 1 Connector (SK1)
T8845 Trusted 40 Channel Analogue or Digital Output Versatile FTA
Trusted
TMR
Digital
Output
Module
From Trusted TMR 24Vdc Digital Output Module -
40 Channel Integration Cable Via Plugs
(TBGN and TBSS)
Where N Indicates Power Group Numbers 1 to 5
TBn Plugs
Where n equals
channel number
Field
Load
