RTD Input Equipment (T7432)
2 2
Industrial Control Services
Configuration
Each input module is configured using the W INTERPRET I/O
Configuration Editor. In the editor, you will perform the
three steps described below to configure the input module.
1) Set the Module Type:
Position the cursor on the module slot you wish to define.
Choose Set Module Type from the Edit Menu and select
the RTD input module from the list.
2) Edit the Module Definition:
Choose Edit Module Definition from the Edit Menu. A
dialog box will open where you can define the input point
definitions.

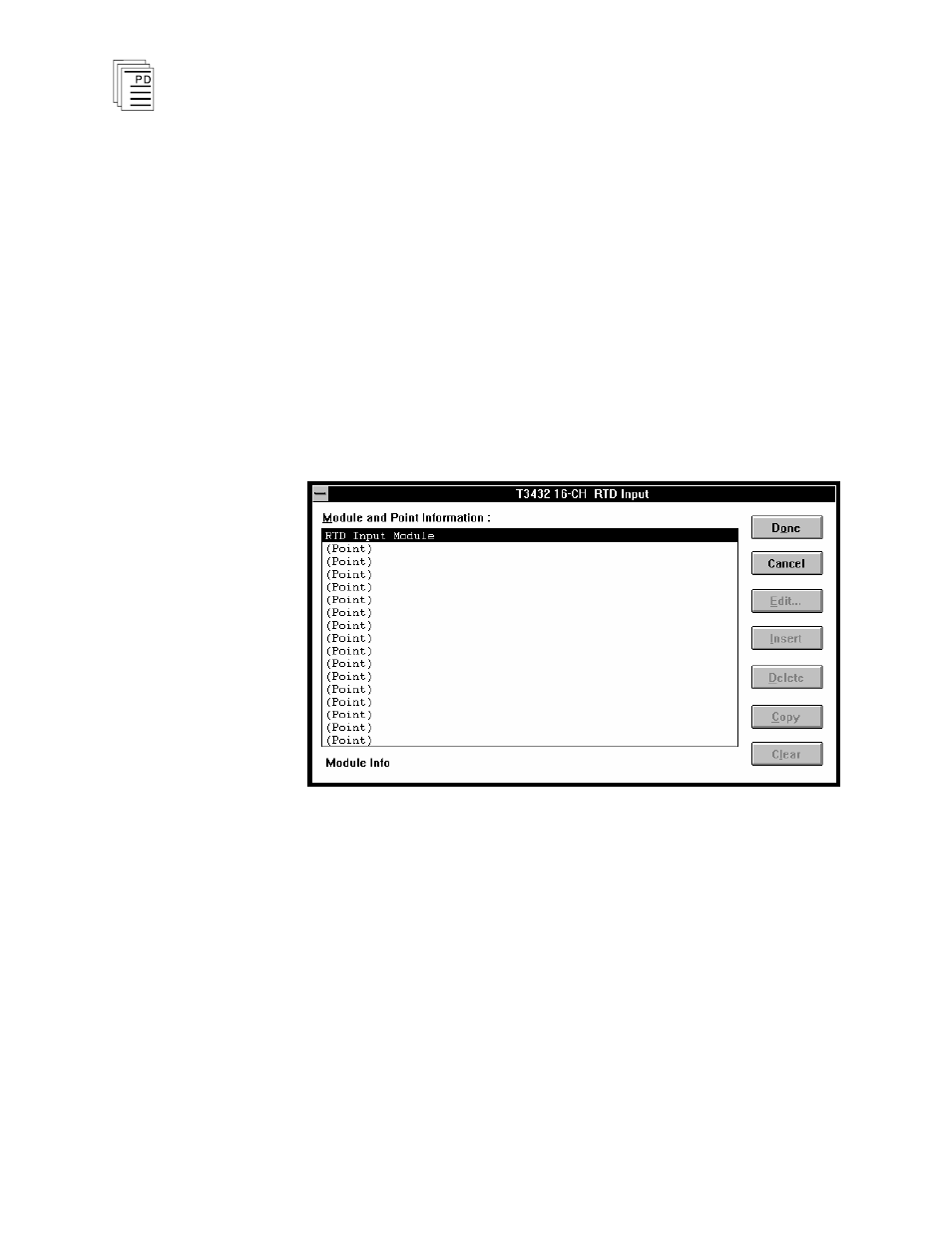

Figure 18. RTD Input Module Definition.
3) Edit each point:
Position the cursor on a Point definition and choose Edit
from the Module Definition dialog box to define a name
and description for each input point. In the RTD Input
Point dialog, enter a tag name (up to 12 characters) and a
description (up to 40 characters). The tag names are used
in the application program to represent the value of the
RTD input in your control algorithms and interlocks. The
input data is in the units and format as configured on the
RTD Mux. For more information, see RTD Multiplexer
Configuration, starting on page 11.
