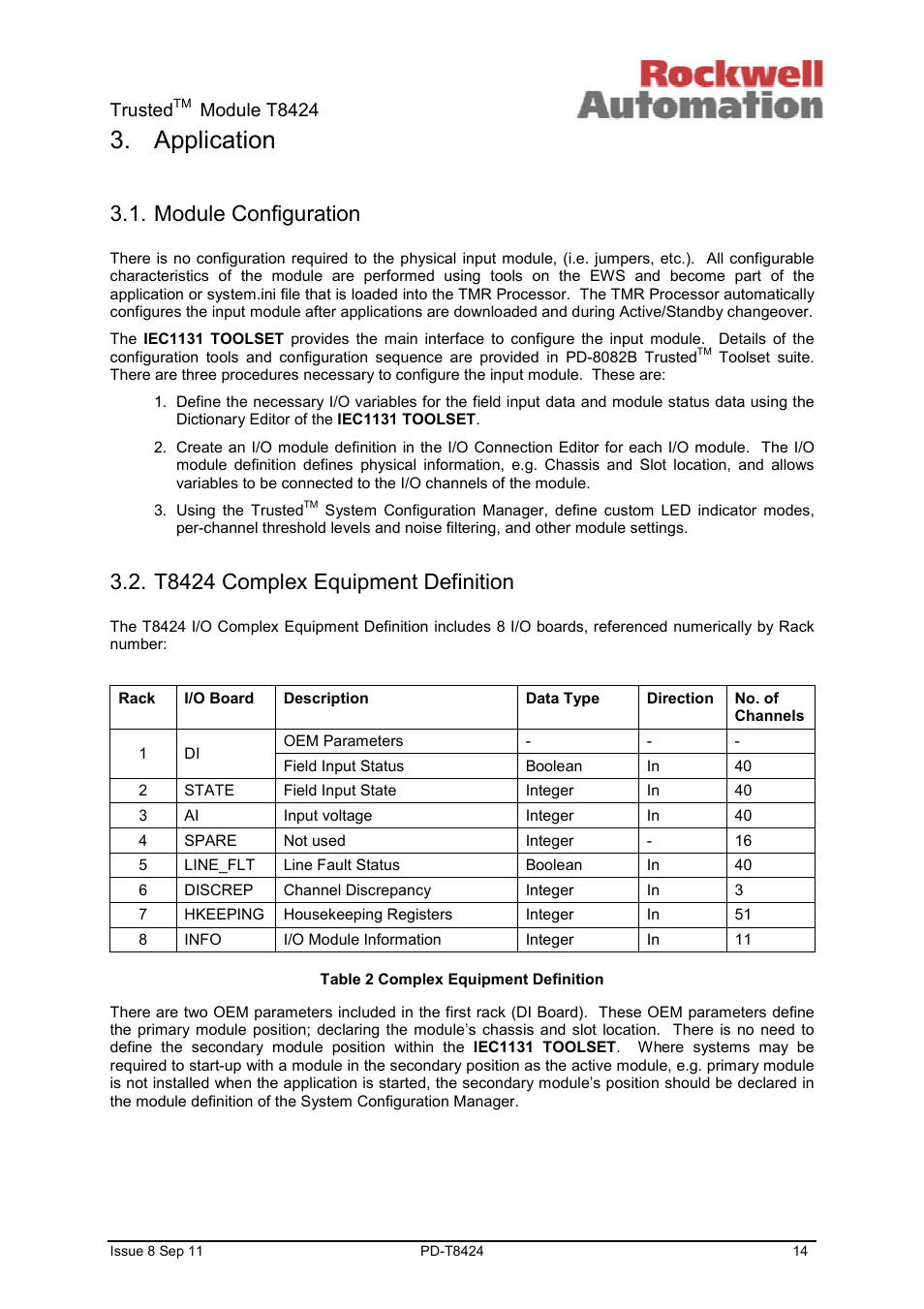

Application, Module configuration, T8424 complex equipment definition – Rockwell Automation T8424 Trusted TMR 120Vac Digital Input Module User Manual
Page 14: Trusted, Module t8424
