For greater installation flexibility, you can attach the scan head to an optional
Swivel Mounting Base. The installation dimensions of the Swivel Base and
its associated “T” Mounting Plate are shown in Figure
4.2.

Swivel Mounting Base Catalog No. 2755–NM1

“T” Mounting Plate Catalog No. 2755–NM2

2.00
(5.08)

3.19 (8.10)

2.812 (7.14)

1.88 (4.78)

1.500
(3.81)

.187
(4.75)

.180 (4.57)
4 places

.19 (4.83)

3.63
(9.22)

3.75
(9.53)

.13 (3.3)

7/16–20
UNF–2A

1.625
(4.13)

.30 (7.62)

1.00
(2.54)

.75
(19.05)

.38 (9.65)

.25
(6.35)

3.000
(7.62)

5.50
(13.97)

1.50 (38.1)

7/16–20 UNF–2B
5/8 Deep

0.213 Dia.
2 Holes

1.25 (3.18)

1.00 (2.54)

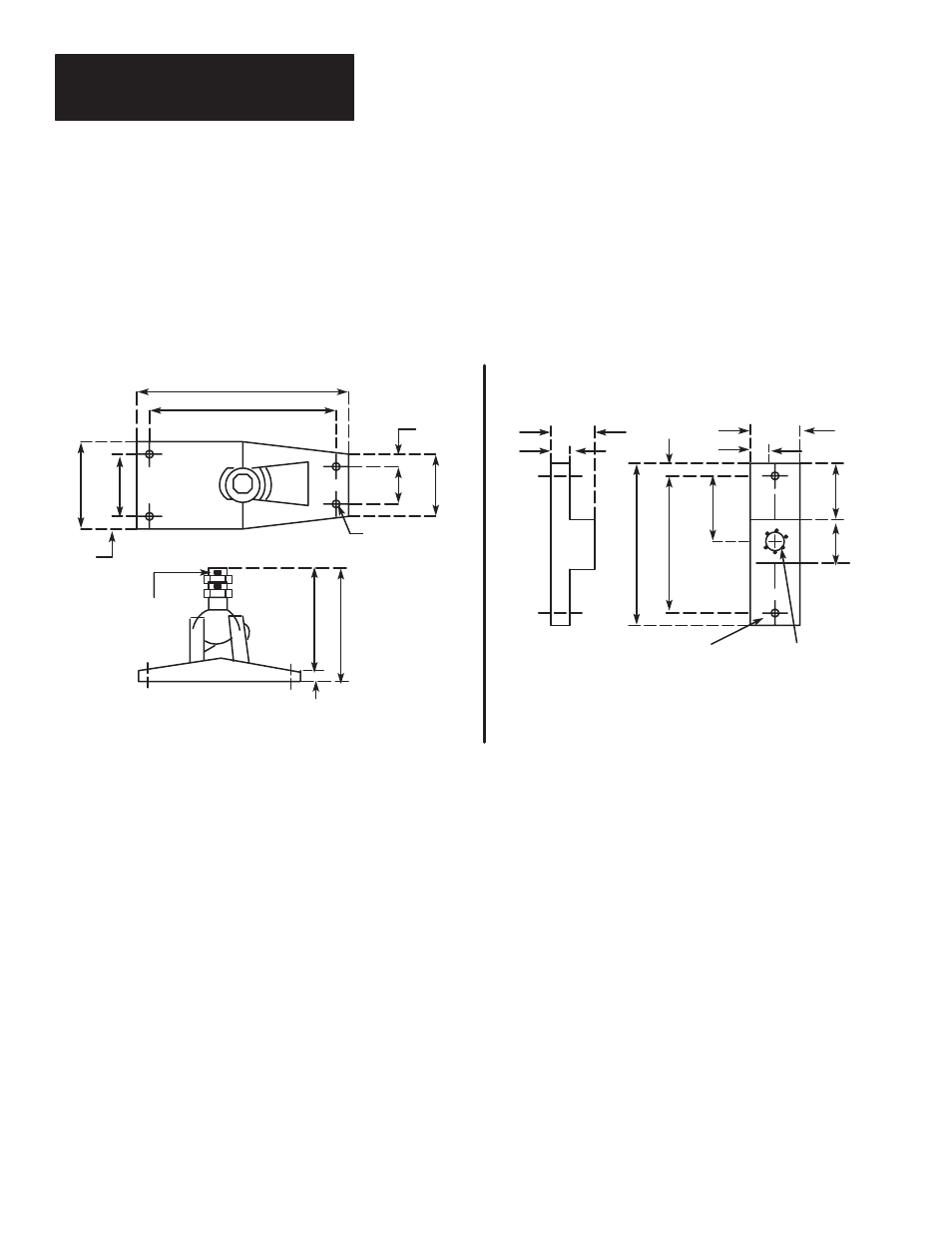

Figure 4.2
Mounting Dimensions of Swivel and “T” Mounting Plate
Inches (Centimeters)

How to Install the Swivel
Mounting Base (Catalog No.
2755-NM1 and 2755-NM2)
