Rockwell Automation 2100H-UNTLKx Replacing the Unit Interlock for CENTERLINE 2100 Motor Control Centers User Manual
Page 6
Publication 2100-IN068A-EN-P - July 2009
6 Replacing the Unit Interlock for CENTERLINE 2100 Motor Control Centers
3. Move the interlock, if necessary, until the bottom of the interlock
can be inserted into the slot in the side of the operator handle
assembly.
It may be necessary to manipulate the interlock up and down to
position it into the slot. Make sure the tab on the interlock is not
bent away from the interlock. This could affect the interlock
being placed into the slot. In addition, make sure that the
interlock is not caught behind the handle linkage.
4. Slide the interlock down to the bottom of the slot.
5. Move the handle to the ON and OFF position to help ensure that
the interlock is functioning properly.
Refer to the CENTERLINE 2100 Low Voltage Motor Control
Centers Instruction Manual, publication
r
information regarding unit interlock functionality.
6. Uncompress the tab on the interlock to the approximate
thickness of the interlock.
7. Tighten the taptight on the side of the unit, if used.

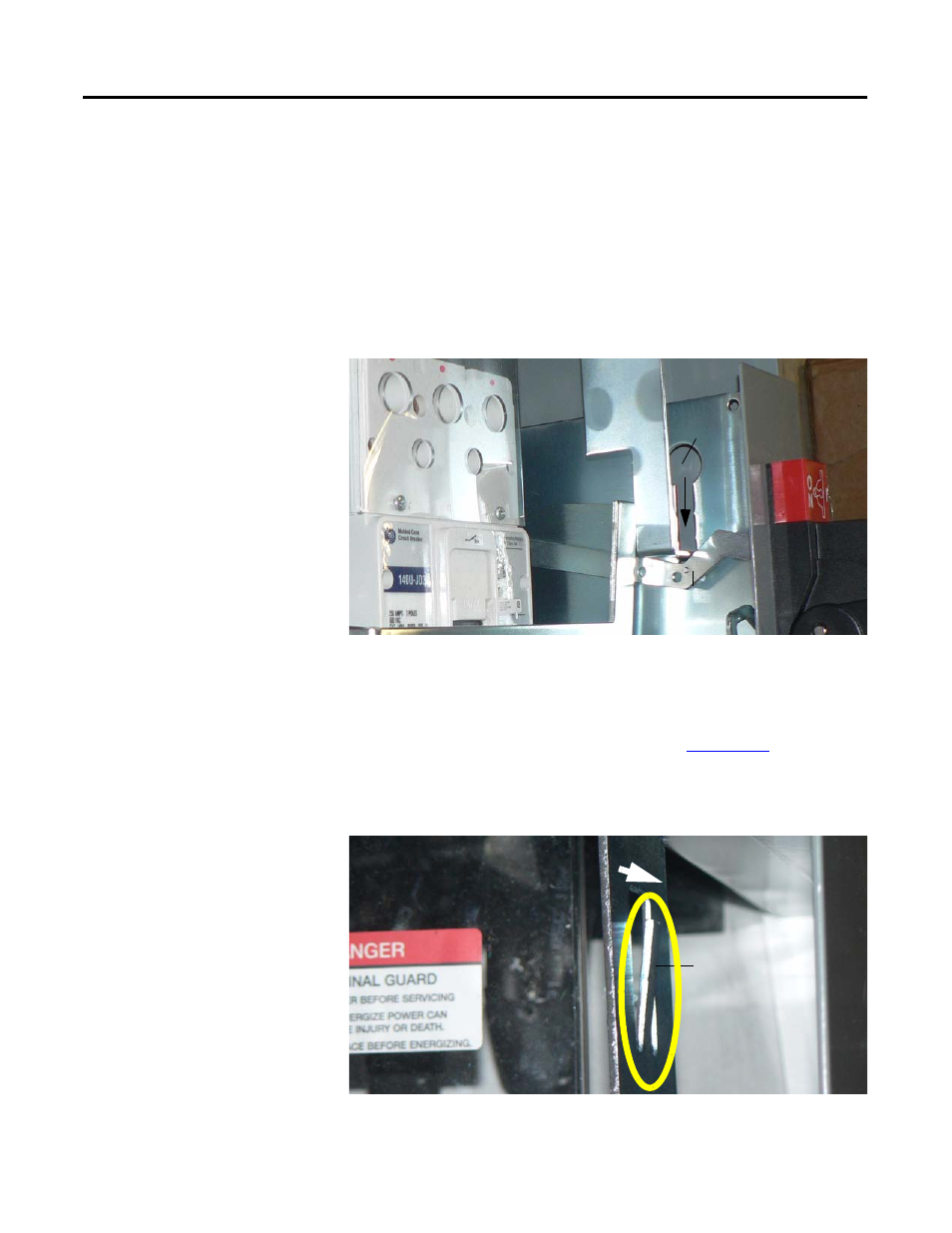

Slot
Interlock
Handle
Linkage
Interlock Tab
