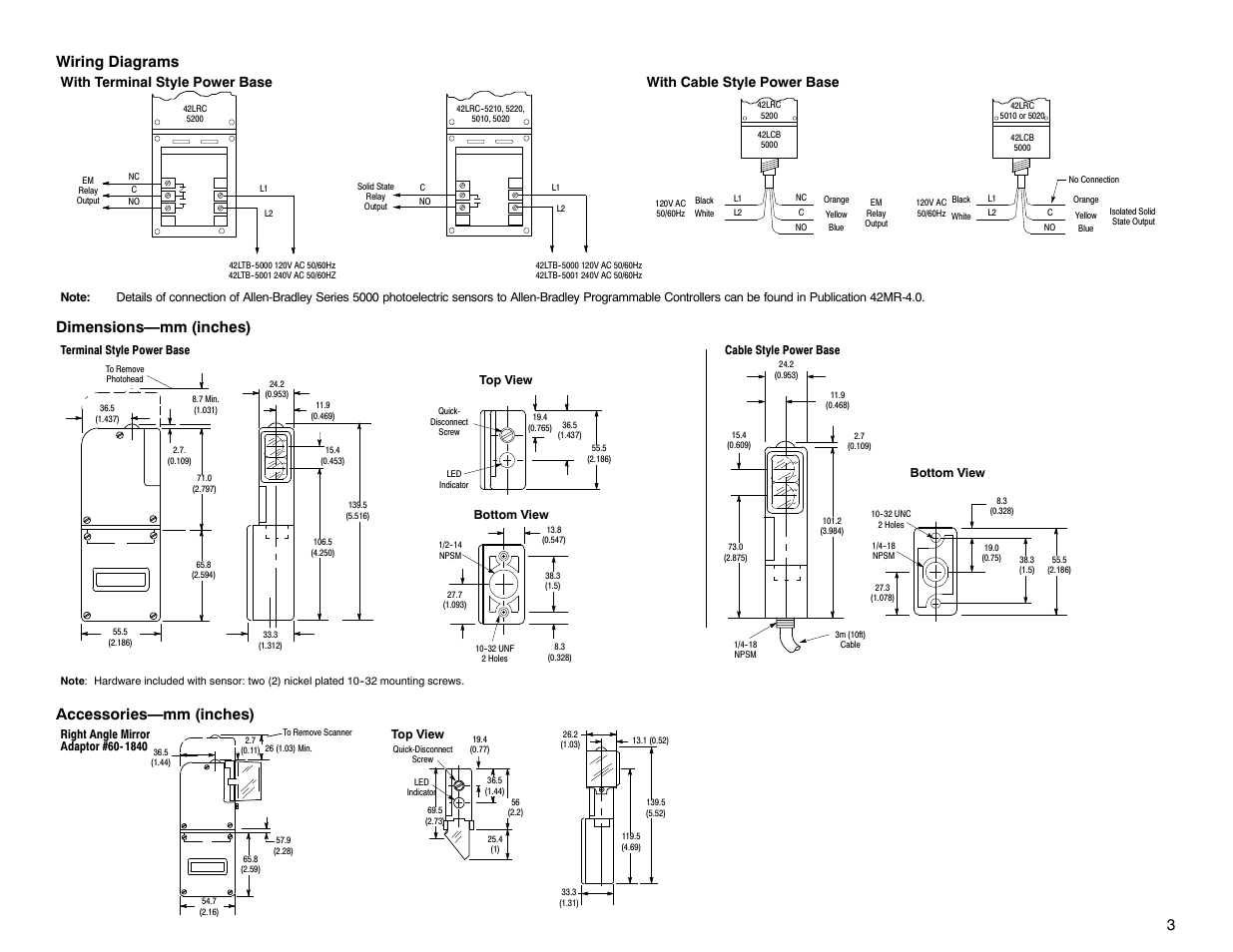

3wiring diagrams, Dimensions—mm (inches), Accessories—mm (inches) – Rockwell Automation 5000 Red Line User Manual
Page 3
