Removing the Bus Indicator PCB Use this procedure to remove the bus indicator PCB:
1. Remove all Lexan™ guards that shield the PCB.
2. Disconnect all power wiring from the bus indicator PCB, as des-
ignated by arrows in Figure 1.
3. Remove the PCB from the 5 plastic standoff supports.

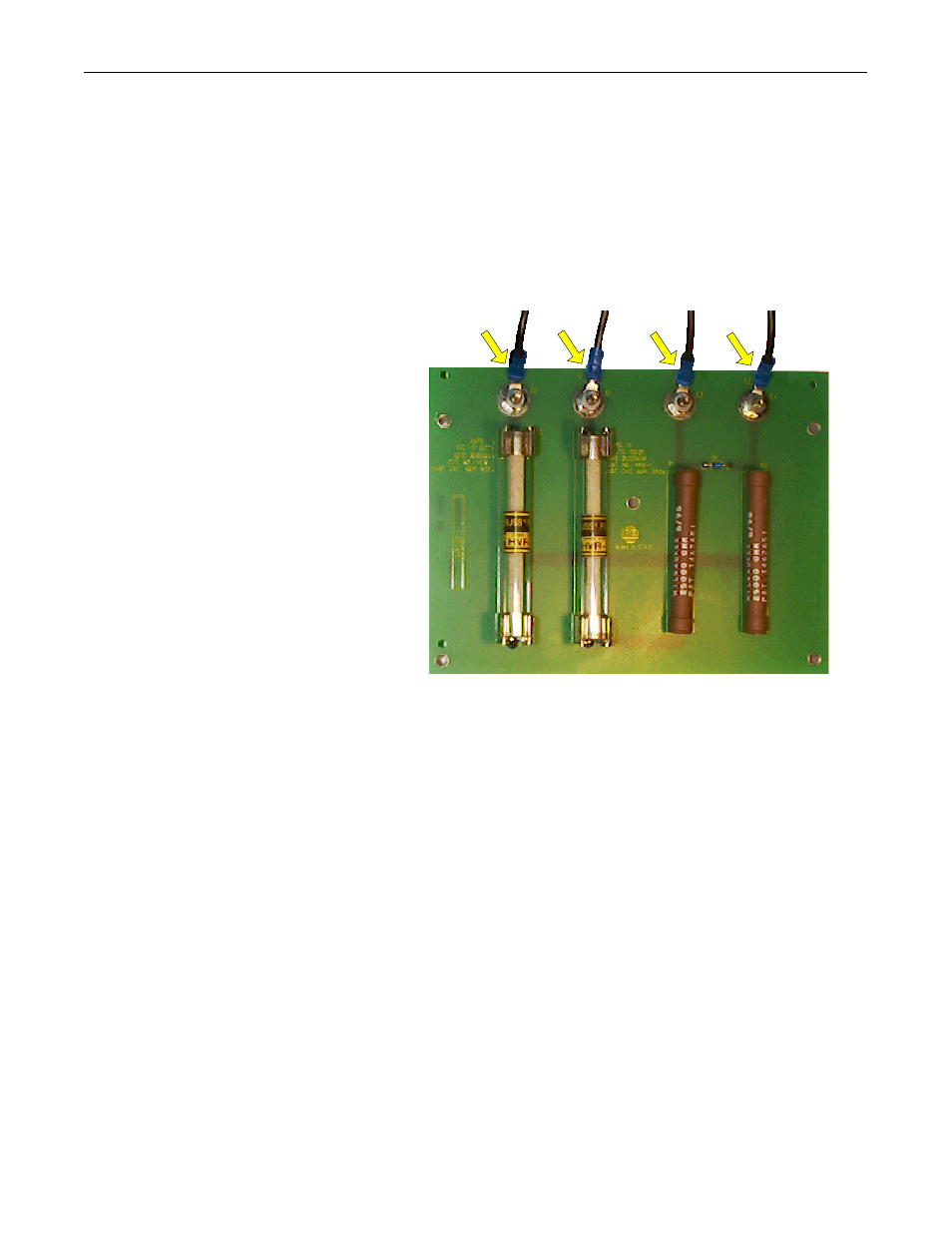

Figure 1
Bus Indicator PCB
Installing a Bus Indicator PCB Use this procedure to install the bus indicator PCB:
1. Position the PCB inside the unit.
2. Secure the PCB with the 5 plastic standoff supports.
3. Connect all power and ground wiring to the PCB.
4. Verify that wiring has been reconnected per schematic.
5. Install any Lexan guards that were removed.
6. Dispose of the removed part according to your company’s proce-
dures and local ordinances.
