Rockwell Automation 60-2213 Mounting Assemblies - Manual (Page 2)

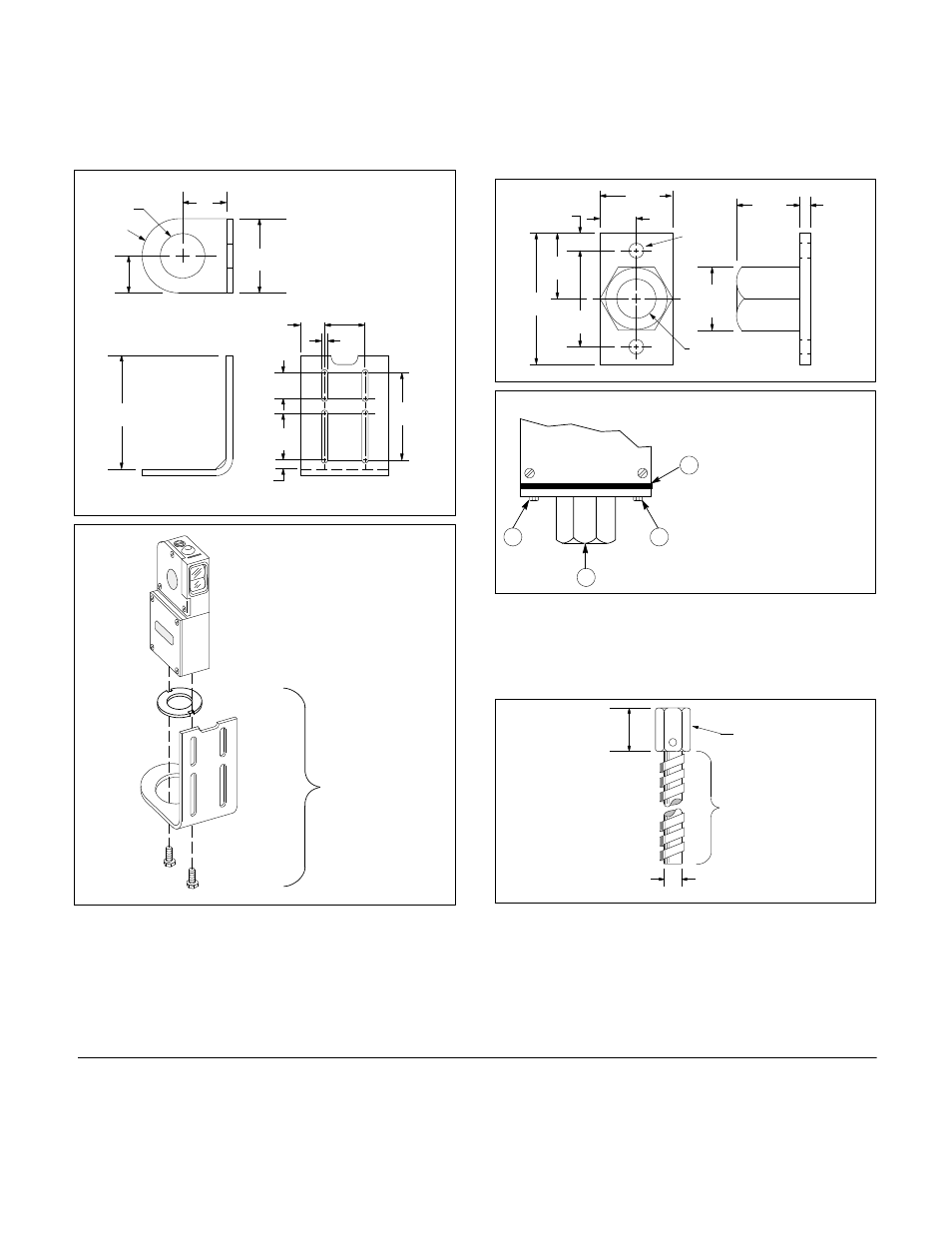

LIMIT SWITCH TYPE MOUNTING ASSEMBLY #60-2230
#60-2230 Limit Switch Type Mounting Bracket combines the
possibility of mounting the bracket using standard limits with
mounting holes with a 360
o horizontal adjustment for aligning
the Series 5000 Control.
2.650
(67)
1.450
(37)
1.325
(34)
FULL RAD.
1.720 DIA.
(44)
4.000
(102) 3.220
(82)
0.850
(21)
1.935
(49)
0.375
(4.5)
1.180
(30) 0.735
(19)
0.225
(6)
Series 5000 Control
Washer
Bracket
Whizlock Bolts
Exploded View
of #60-2230
Bracket
CONDUIT MOUNTING ADAPTOR #60- 2213
#60-2213 Conduit Mounting Adaptor is recommended for in­
stallation where the controls will be mounted directly on 1/2 ‐ inch
conduit. Two Whiz Lock type screws secure the control to the
adaptor while the gasket between the control and adaptor main­
tain the NEMA 4 rating.
0.325
(8.3)
1/2‐14 NPT
1.500
(38.1)
1.075
(27.3)
2.150
(54.6)
1.120
(28.4)
0.560
(14.2)
1.00 HEX.
REF.
(25.4)
1.000
(25.4)
0.120
(3.0)
0.220 DIA.
2 PLCS. (5.6)
1
3
2
3
1. Mount gasket (item 2) and
conduit adaptor (item 1) to
terminal base with two (2) screws
(item 3) provided with power base.
2. Caution: Use wrench on hex flats
(item 1) only. When mounting to con­
duit, do not twist mounting flange or
twist power base.
Installation Instructions
ARMOURED CABLE ADAPTOR #60-1577
#60-1577 Armoured Cable Adaptor is recommended for use
with all Series 5000 Cable Base where protection against mechani­
cal damage to the PVC cable is required. 10 ft. (3m) of armoured
cable is supplied.
0.438
(11.1)
1.06
(27)
HEX NUT
0.687 (17.45)
ACROSS FLATS
10 FT. (3m)
FLEXIBLE
CONDUIT
Publication PA-8310(C)
October 1991
2
www.rockwellautomation.com
