Remove the backlight – Rockwell Automation 2711-NL7_NL9_NL10 Display Backlight for PanelView 1000 (Series C) User Manual
Page 4
4 Display Backlight for PanelView 1000 Terminals
Publication 2711-IN020E-EN-P - July 2007

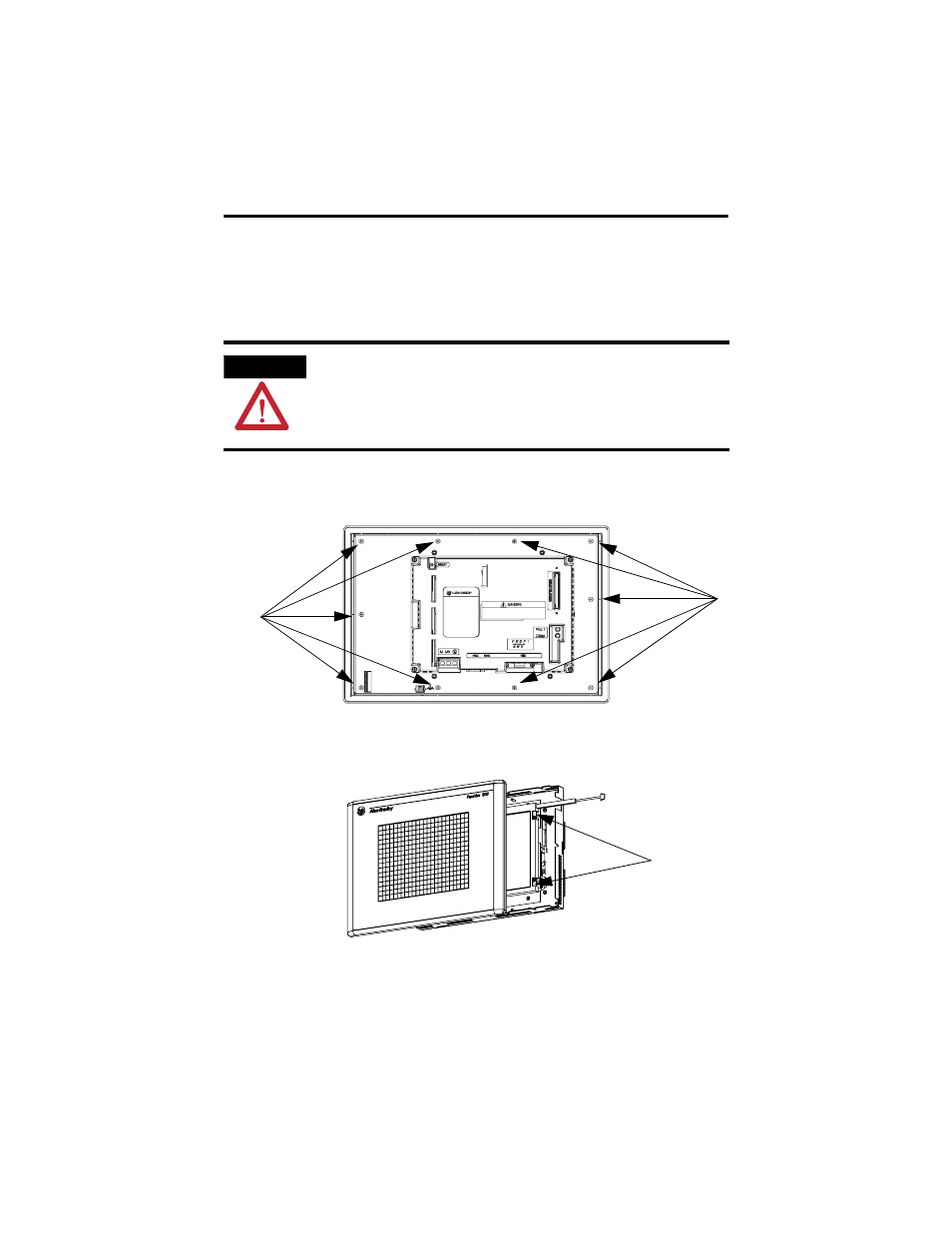

Remove the Backlight
Follow these steps to remove the existing backlight.
1. Turn off the power to the PanelView terminal.
2. Lay the terminal display side down on a flat stable surface and remove 10
bezel screws from the shroud.
3. Turn the terminal over and rest it on the back cover.
4. Lift the bezel up and slide it slightly over to the side.
5. Detach the backlight power connector from the backlight.
6. Lift up on the retaining clip that secures the bulb and then pull the backlight
out.
ATTENTION
Wear a properly grounded ESD wristband before touching any of the electronic
components in the logic module.
Be careful when touching any of the exposed electronic components to prevent
damage from ESD.
Bezel
Screws
Bezel
Screws
Retaining
Clip
