4 Shaft Seal Kits
Rockwell Automation Publication 2090-IN012C-EN-P - February 2014

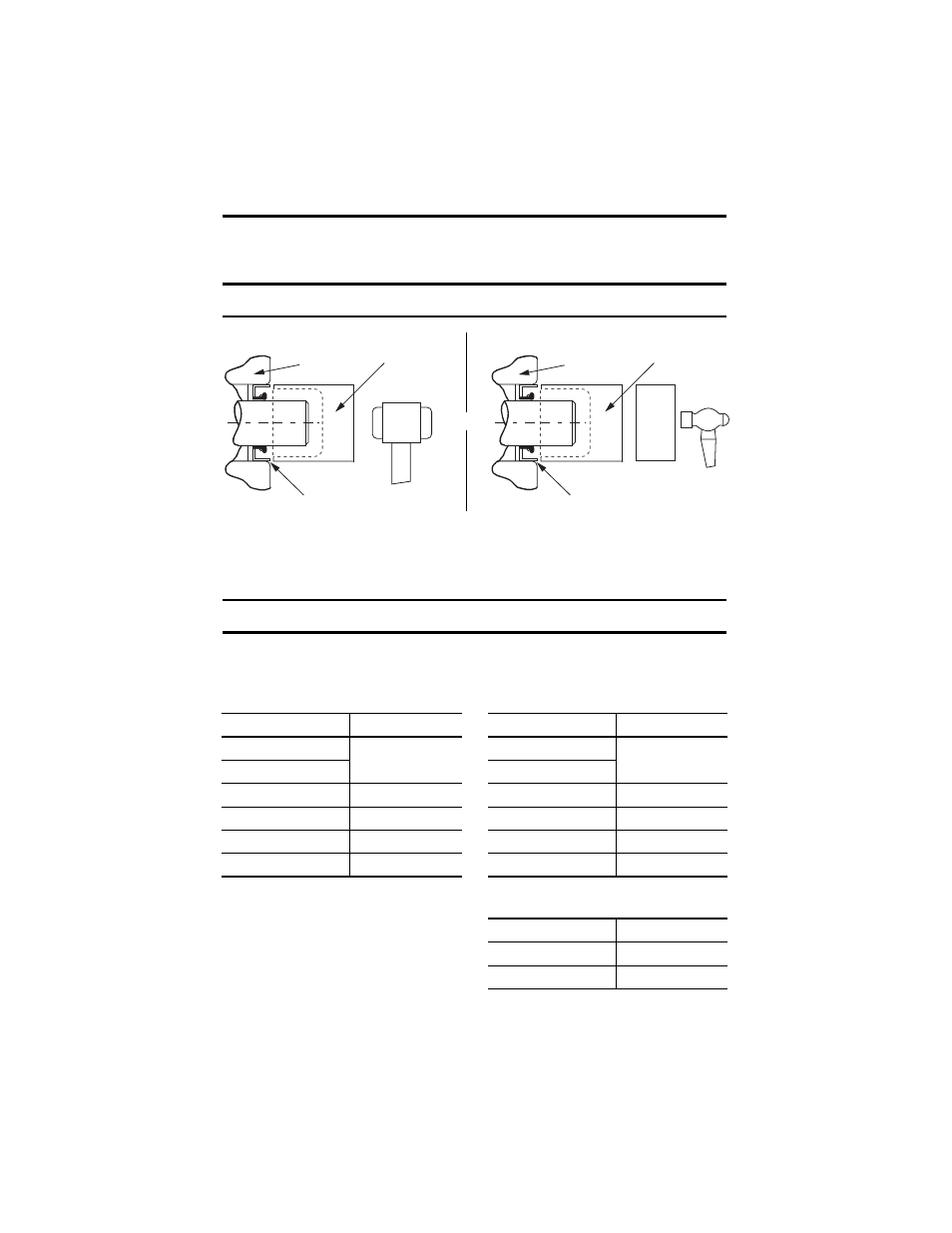

Shaft Seal Installation Methods
This section shows the recommended installation methods for the shaft seals.
Shaft Seal Kit Catalog Numbers
IMPORTANT Do not hammer directly on the shaft seal. Gently tap the socket, pipe, or tubing evenly around the outer
edge of the shaft seal until the shaft seal is pressed into place.
IMPORTANT Third-party shaft seals are not approved for use with these motors. The use of third-party shaft seals voids any
implied or expressed warranties.
Socket, Pipe, or Tubing
(supplied by the customer)
Motor
Metal
Hammer Shaft Seal
Wooden
Work
Piece
Rubber or
Wooden Mallet
Motor
Shaft Seal
Socket, Pipe, or Tubing
(supplied by the customer)
Or
Kinetix VP Low Inertia Motors
Motor Cat. No. Shaft Seal Kit Cat. No.
VPL-A063
xx and VPL-B063xx
VPL-SSN-F063075
VPL-A075 xx and VPL-B075xx
VPL-A100 xx and VPL-B100xx MPL-SSN-A3B3
VPL-A115 xx and VPL-B115xx MPL-SSN-A4B4
VPL-A130 xx and VPL-B130xx MPL-SSN-A5B5
VPL-B165
xx
MPL-SSN-F165
Kinetix VP Food Grade Motors
Kinetix VP Stainless Steel Motors
Motor Cat. No. Shaft Seal Kit Cat. No.
VPF-A063 xx and VPF-B063xx
VPF-SSN-F063075
VPF-A075 xx and VPF-B075xx
VPF-A100 xx and VPF-B100xx MPF-SST-A3B3
VPF-A115 xx and VPF-B115xx MPF-SST-A4B4
VPF-A130 xx and VPF-B130xx MPF-SST-A45B45
VPF-B165
xx MPF-SST-F165
Motor Cat. No. Shaft Seal Kit Cat. No.
VPS-B1304D MPS-SST-A45B45
VPS-B1653D MPS-SST-F165
