Chapter
4
Publication 2755-6.7
DEC VT520 Keyboard Wedge
(Communication Setup)
This chapter provides the configuration bar codes for the DEC
keyboard Synapse cable:
•
(Catalog No. 2755-HFC-SV2-01)
DEC VT520 Keyboard Wedge Synapse Cable Defaults
Scan the following bar code to set the IBM Keyboard Wedge Cables
to their default values. Defaults are indicated with an asterisk.

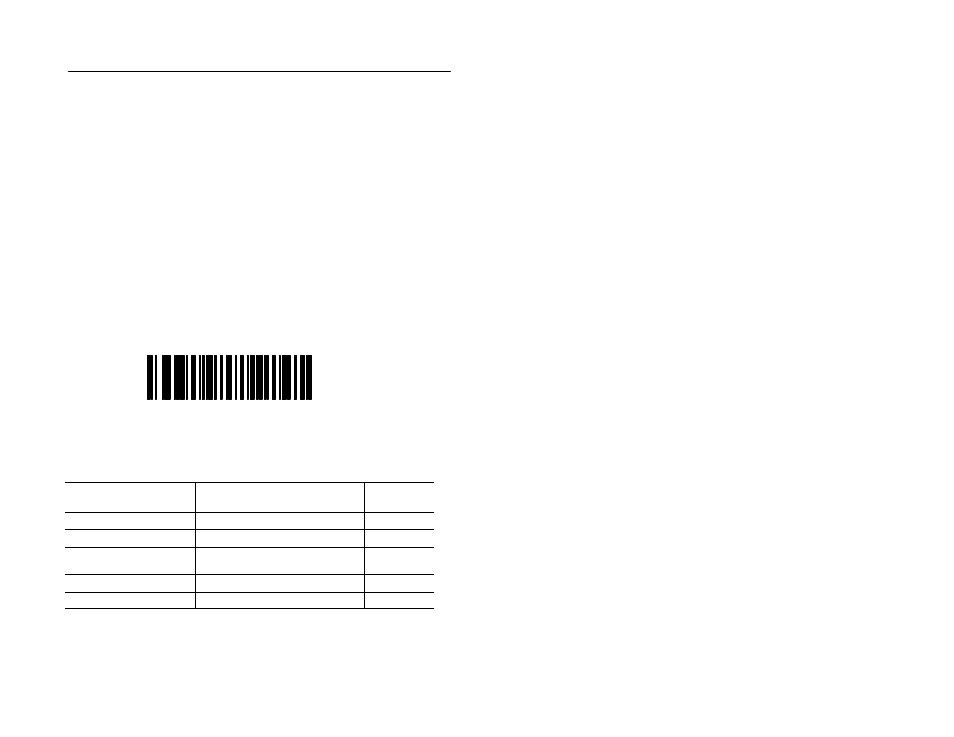

Set DEC VT520 Keyboard Wedge Synapse Cable Defaults
Scan this label to set the DEC VT520 Synapse cable to the default
settings shown below.
DEC VT520 Keyboard
Wedge Cable Parameters
Default Setting
Code on
Page:
Host DEC VT520 4–2
Country North American 4–2
Bar Codes with Unknown
Characters
Send Bar Codes With Unknown
Characters
4–4
Intercharacter Delay 5 milliseconds 4–4
Parameter Set Parameter Set 1 4–5
Scan the bar code symbols for the settings you need to change.
