MessageView 421 Display Terminals Series A: RS-232 Port Adapter 2
Publication 2706-5.1 – January 1997
To install the RS–232 Port Adapter, follow these steps:
1. Turn off power to the MessageView terminal.
2. Locate the RS-232 port (a 9-pin D connector).
3. Insert the female end of the RS-232 Port Adapter into the
terminal’s male RS-232 port connector.
4. Tighten the locking screws finger tight.
5. Turn on power to the terminal.
The Adapter is used to swap the RTS/CTS handshake signals on the
RS-232 port. This converts the MessageView terminal into a
standard DCE device.

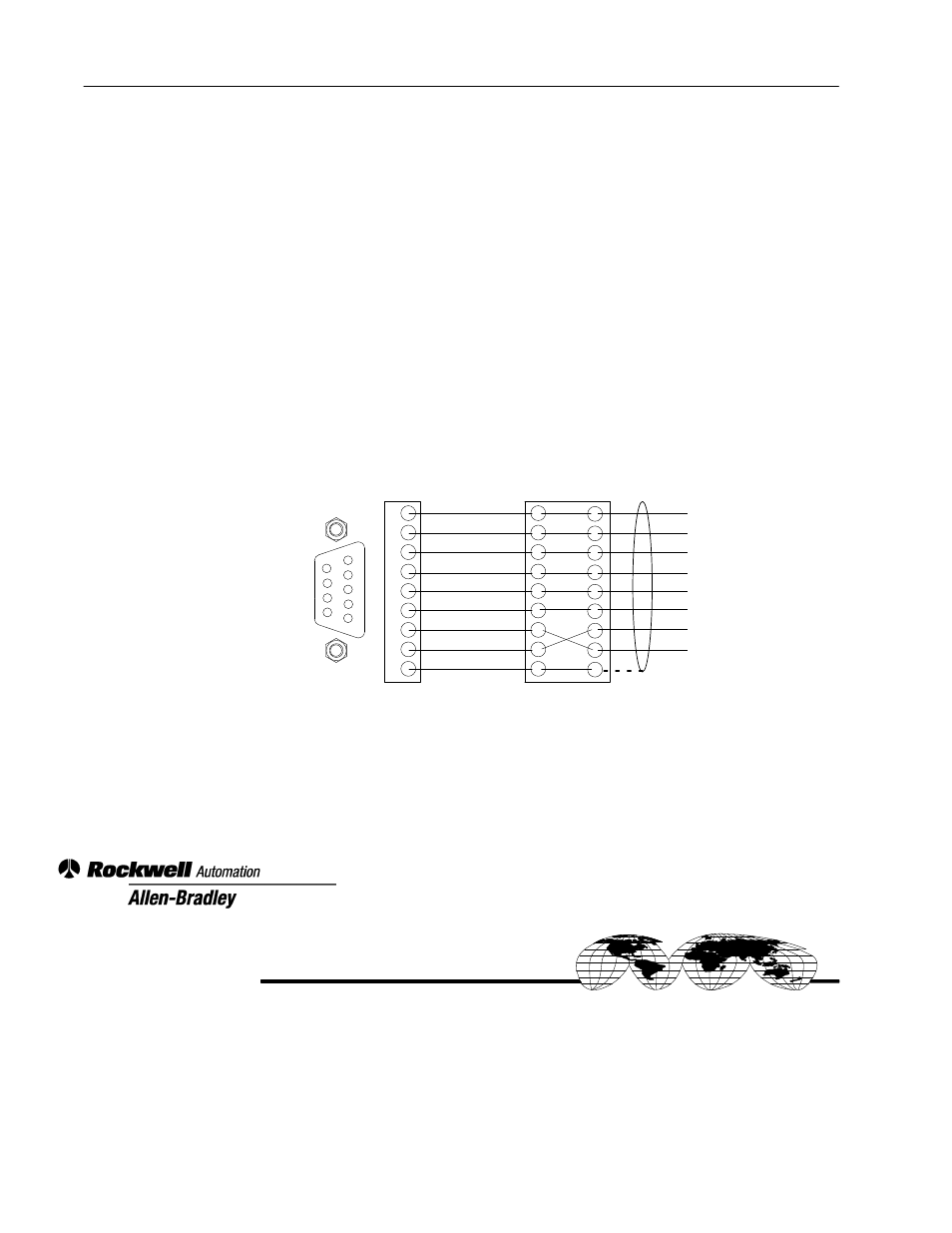

DB-9 Connector (Female)
(DCE)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
TXD
RXD
Common
RTS
CTS
DCD
DTR
DSR
MessageView Terminal RS-232 Port
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
RS-232 Port Adapter
(Part #W77128-144-52)
Pinout of the RS-232 Port
Adapter
