Packing Data
PK
Attaches de fixation
(référence 2711-NP2)
Ces instructions expliquent comment installer le terminal PanelView
600/900/1000 sur un panneau ou dans une armoire en utilisant des attaches de
fixation (2711-NP2).
Installation
Les attaches de fixation maintiennent le terminal
serré sur le support de fixation.
Pour installer les attaches de fixation :

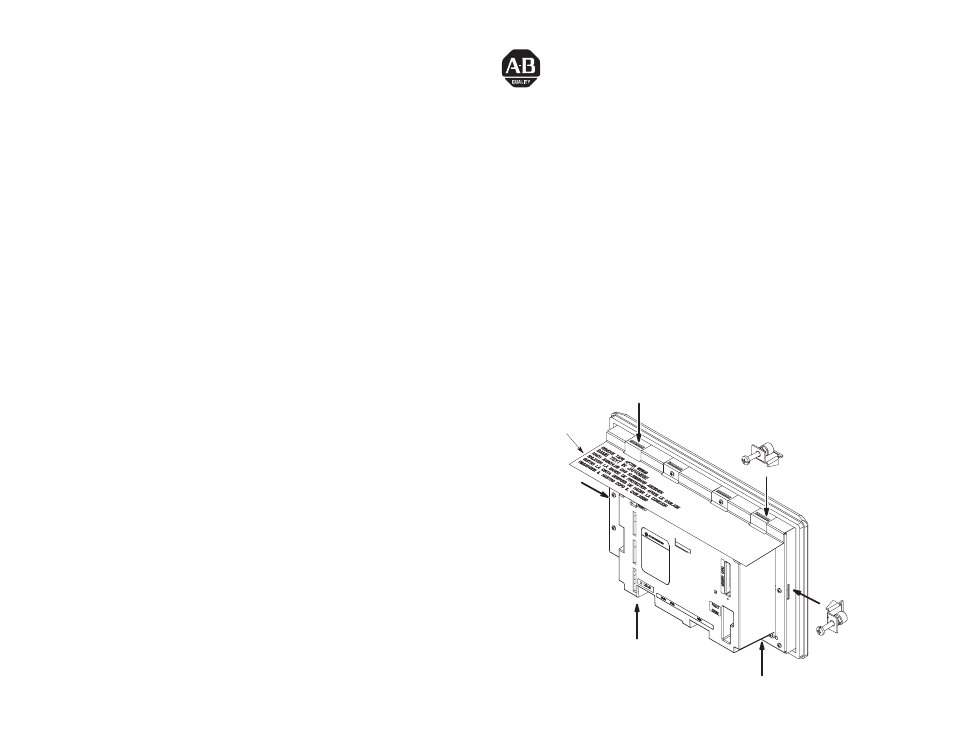

1. Installer les attaches sur le PanelView, leurs extrémités glissant dans des
encoches du terminal. Serrer à la main les vis des attaches jusqu’à ce que le
contact du joint sur la surface de montage soit bien uniforme.
Etiquette protectrice
pour l’installation
PV900/1000
Installer 6 attaches de fixation:
Haut - Encoches gauche et droite
Bas - Encoches gauche et droite
Côtés - Gauche et droit
PV600
Installer 4 attaches de fixation:
Haut - Encoches gauche et droite
Bas - Encoches gauche et droite
Notice d’installation
