Rockwell Automation 1738-IA2M12AC4 ArmorPoint AC Input Modules, Series A - Manual (Page 4)

Publication 1738-IN006B-EN-E - July 2004
4 ArmorPoint AC Input Modules, Series A
Mount the I/O Base To mount the ArmorPoint I/O base on a wall or panel, use the screw
holes provided in the ArmorPoint base.

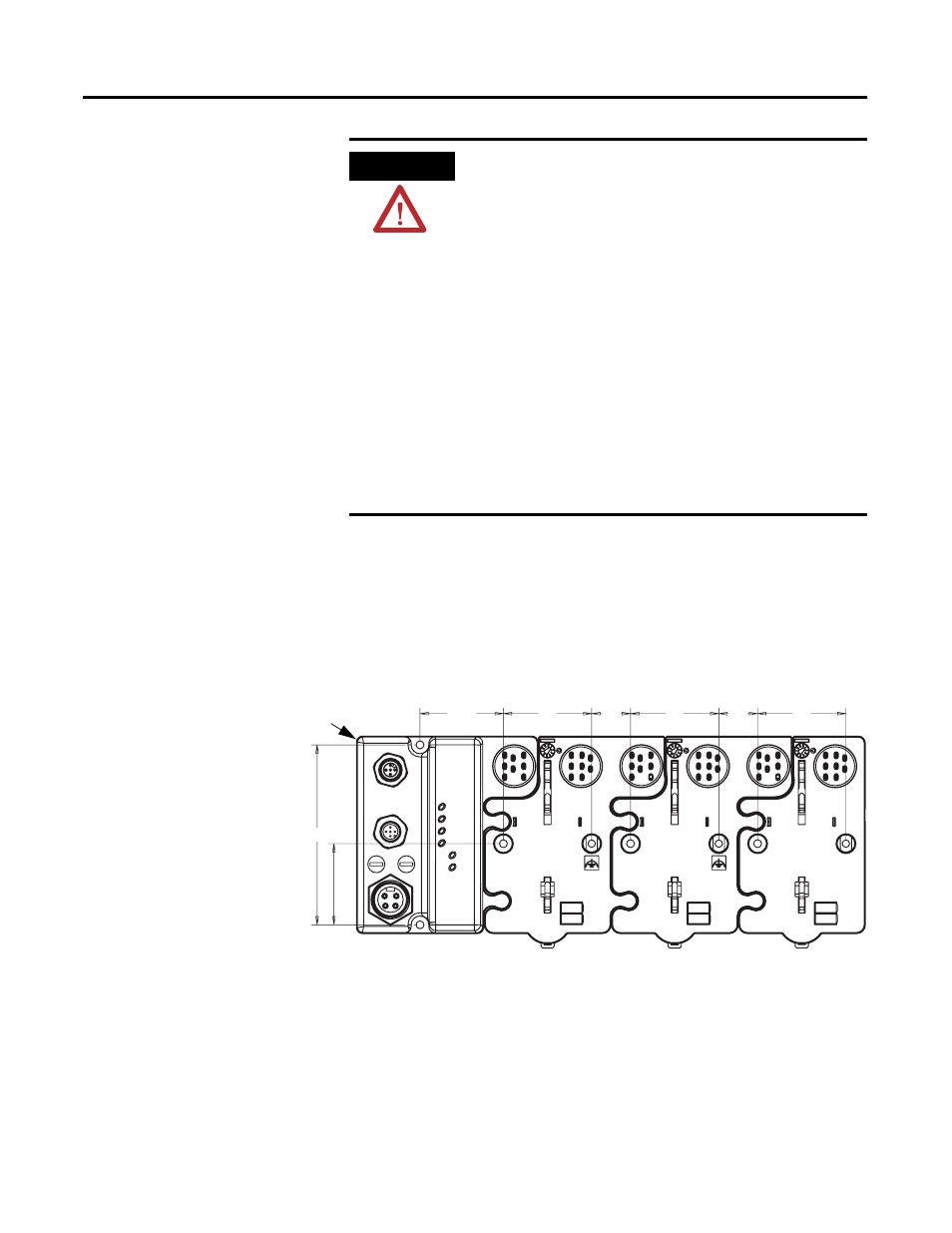

A mounting illustration for the ArmorPoint base with an adapter is
shown below.
ATTENTION
Preventing Electrostatic Discharge
This equipment is sensitive to electrostatic discharge,
which can cause internal damage and affect normal
operation. Follow these guidelines when you handle
this equipment:
• Touch a grounded object to discharge potential
static.
• Wear an approved grounding wriststrap.
• Do not touch connectors or pins on component
boards.
• Do not touch circuit components inside the
equipment.
• If available, use a static-safe workstation.
• When not in use, store the equipment in
appropriate static-safe packaging.
43769
4.02 in.
102 mm
1.81 in.
46 mm
Adapter
1.9 in.
47.2 mm
2.0 in.
50 mm
0.87 in.
22 mm
2.0 in.
50 mm
0.87 in.
22 mm
2.0 in.
50 mm
