Page 17
CompactLogix EtherNet/IP Web Server Module 17
Rockwell Automation Publication 1768-IN007B-EN-P - August 2010

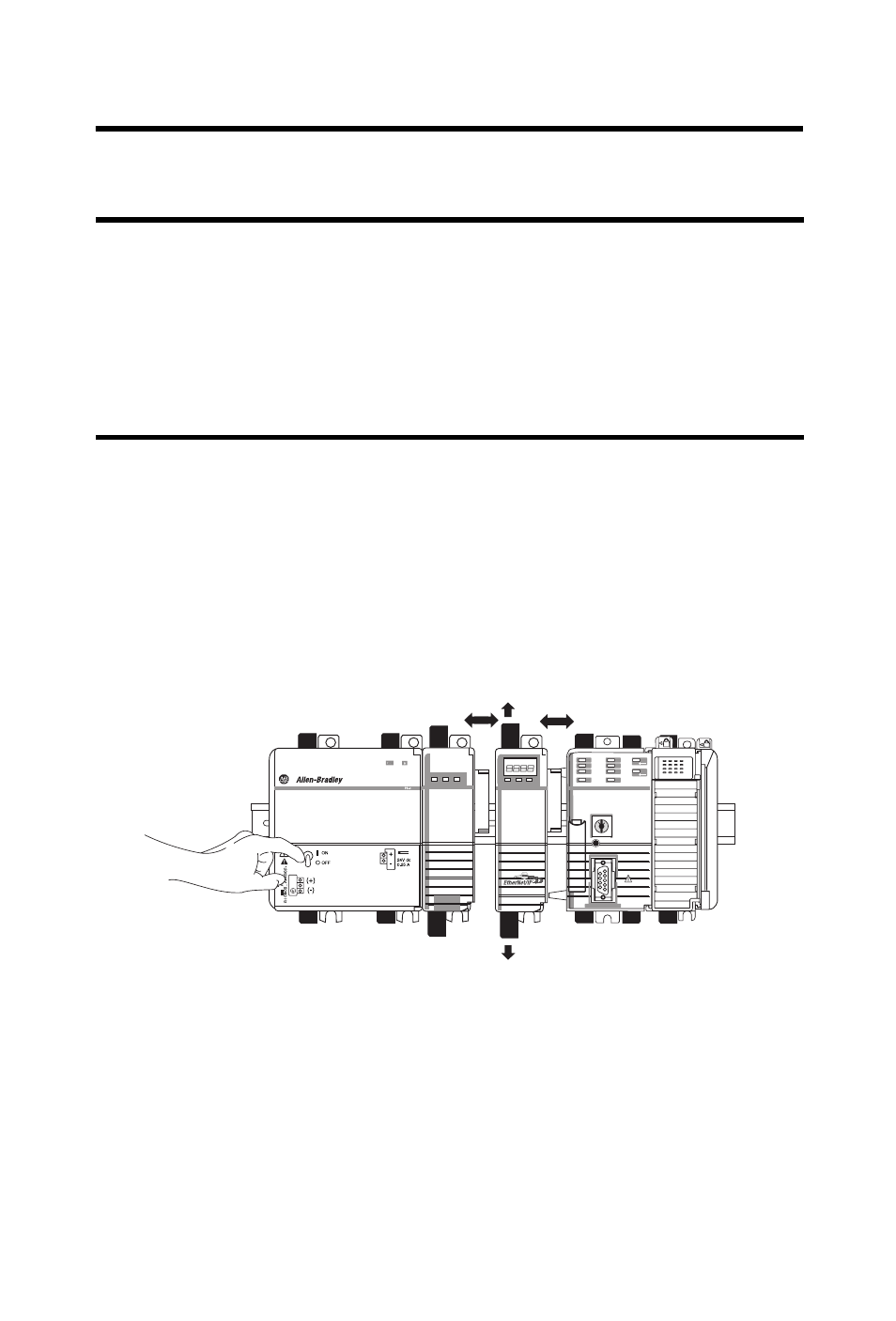

Remove the EtherNet/IP Web Server Module
1.
Turn off power.
2.
Open the DIN rail latches of the EtherNet/IP Web Server Module and
the module directly left of the EtherNet/IP Web Server module.
3.
Slide the EtherNet/IP module to the right with other modules.
4.
Slide the controller away from the EtherNet/IP module.
5.
Pull the EtherNet/IP module forward off the DIN rail.
IMPORTANT
When you turn the CompactLogix power supply off, make sure
you wait for all status indicators on the power supply and
controller to turn off before disconnecting any part from the
system.
If you disconnect the CompactLogix system while the controller
is still writing its program to memory, the program write will not
be completed and you will lose your program.
Power
OUT
L1
L2/N
