12 ControlNet Coax Taps
Rockwell Automation Publication 1786-IN007C-EN-P - October 2010
Connect the Taps
After you have completed mounting your taps, you need to connect the taps.
Choose the tap connection procedure that best suits your installation
requirements.
Connect Taps with a Jumper

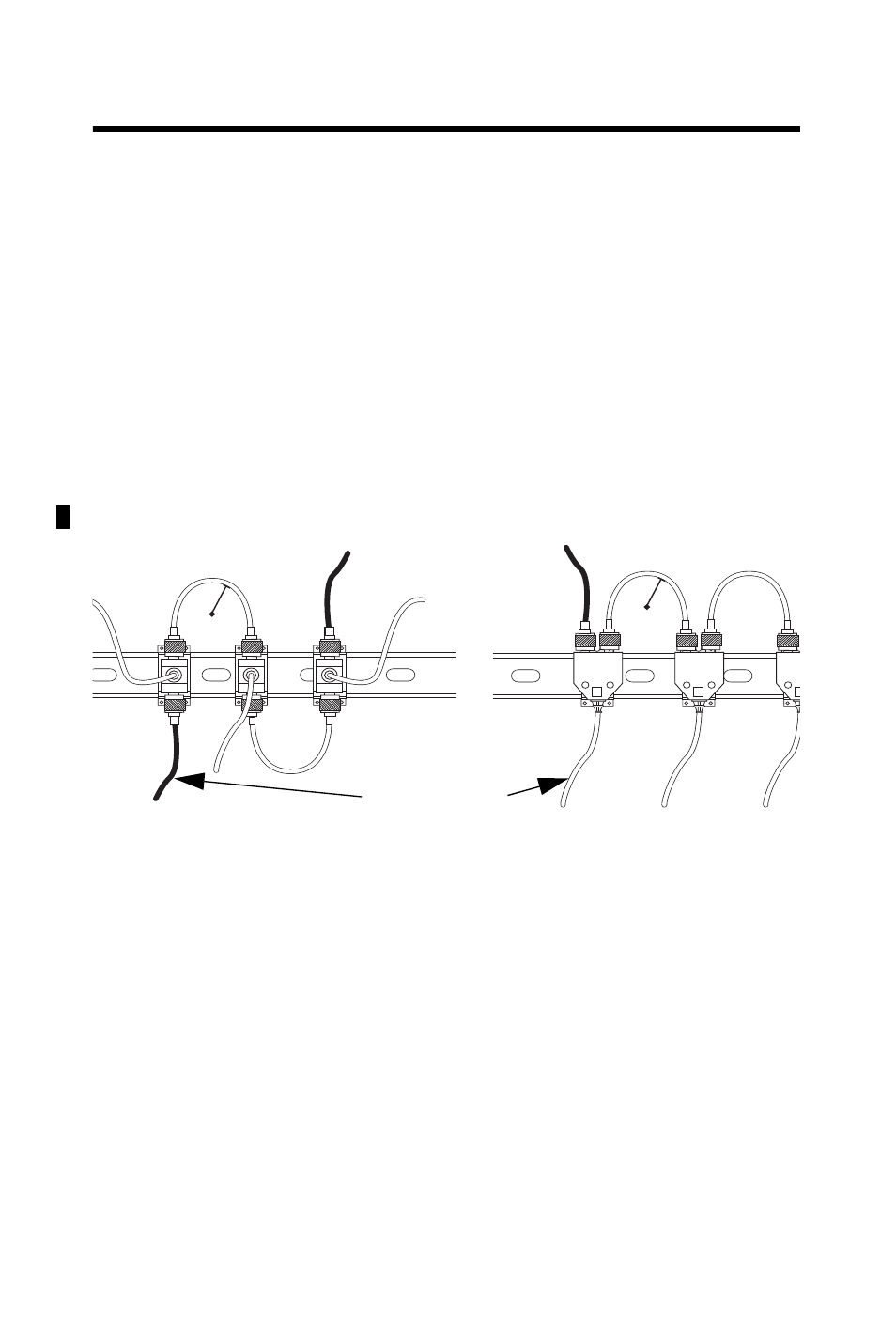

You can connect T-taps and Y-taps by using a plug-to-plug jumper (catalog no.
1786-TJPR, not included) when these considerations are made:
•
No more than 70 jumpers can be used per ControlNet segment.
•
Plug-to-plug jumpers cannot be bent beyond a 3.81 cm (1.5 in.) radius.
•
Drop cable cannot be bent beyond a 3.81 cm (1.5 in.) radius.
3.81 cm (1.5 in.)
3.81 cm (1.5 in.)
3.81 cm (1.5 in.)
