Rockwell Automation 1791-16A0 16 INPUT AC BLOCK User Manual
Page 2
Installation Instructions
Block I/O
Cat. No. 1791-16A0 Series B
2
Figure 2

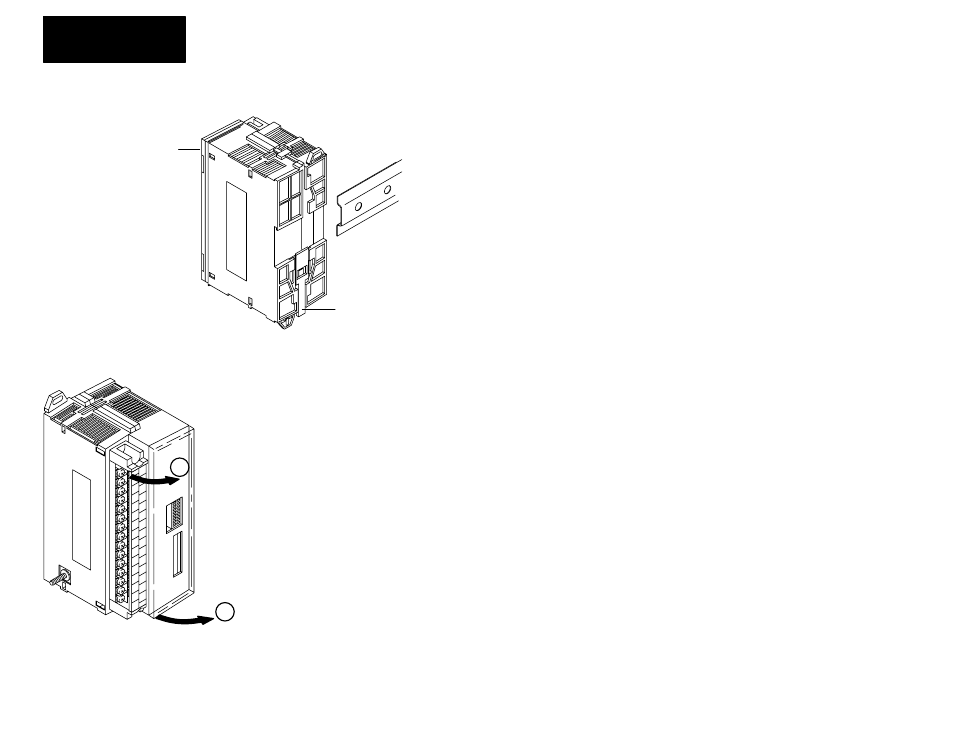

Mounting on a DIN Rail
1. Hook top of slot over DIN rail.
2. While pressing block against rail,
pull down on locking lever.
3. When block is flush against rail,
push up on locking lever to secure
block to rail.
Locking Lever
Block
12382–I
DIN Rail
A-B Pt. No. 199-DR1
46277-3
EN 50022
(35 x 7.5mm)
Figure 3
Inserting Labels
1. Remove die-cut labels from package. Select correct
labels for your application. (PLC label is numbered
00–07 and 10–17. SLC label is numbered 00–07
and 08–15.)
3. Open clear front door. Insert module designation
label into slots that secure it to the door.
A set of labels is supplied with your module. Select the
proper module designation labels (PLC or SLC) for the front
door and terminal strip.
12384–I
2. Remove plastic cover on terminal strip by flexing
in middle. Slip the terminal designation label into
built-in holders in terminal strip cover. Flex cover
slightly to install.
