Connect the power supply, Power supply pinouts – Rockwell Automation 1783-US8T Stratix 2000 Ethernet Unmanaged Switch Installation Instructions User Manual

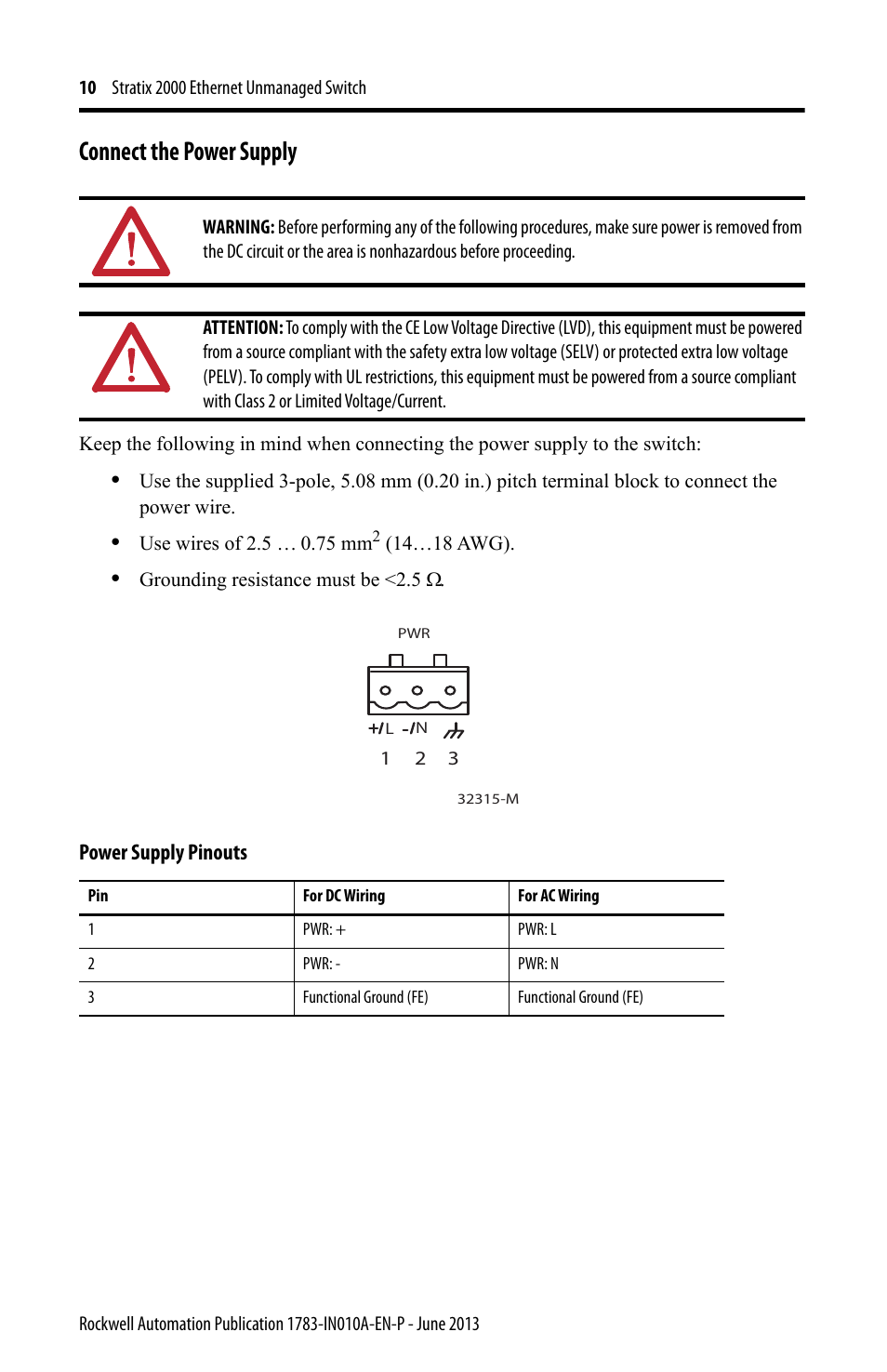

Page 10
