Configuration
Complete the following instructions to configure the 1788-CN2PAR linking device.
Configure the ControlNet Node Address

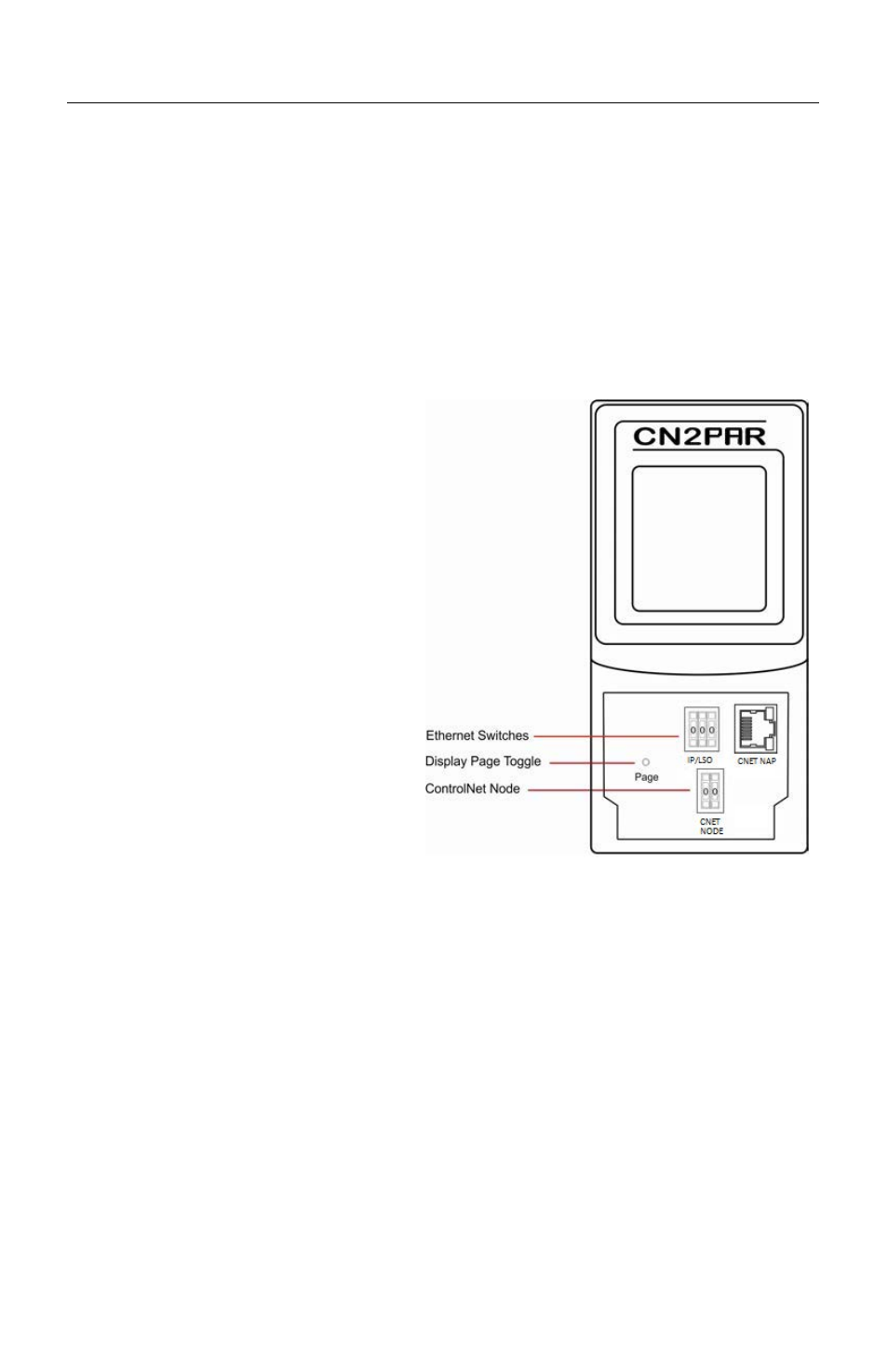

Use the switches found under the front cover on the module to set the ControlNet node
address for the 1788-CN2PAR linking device.
Configure an Ethernet Address
The module has BOOTP enabled when
shipped. You can set an address via a
BOOTP server or set the hardware
switches to a specific IP address. See
on page
Use Switches to Set the IP Address
on page
for details. The switches can be
found under the front cover of the
module.
Use BOOTP to Set the IP Address
1. Set the Ethernet switches to
888 (factory default).
2. Apply power to the linking device.
3. Set the IP address by using any BOOTP server.
4. Once the new IP address has been set, power down the linking device.
5. Return the switches to 000.
6. Apply power to the linking device.
Use Switches to Set the IP Address
To set the IP address of the linking device to the 192.168.1.xxx sub net, set the switches to the
required last three digits.
