Barrel Temperature Control Module 7

Publication 1746-IN020B-EN-P - July 2002

Remove/Install the Removable Terminal Block

The module ships with an attached an 18-position removable terminal block (RTB). When
you install the module, it is not necessary to remove the RTB. If you ever need to remove it,
follow this procedure:

1.

Alternately loosen the two retaining screws to avoid cracking the RTB.

2.

Grasp the RTB at the top and bottom and pull outward and down. When removing
the RTB, be careful not to damage the CJC sensors.

3.

Use the write–on label to identify the slot, chassis and module type.

To install the RTB:

1.

Remove power from the SLC 500 chassis.

WARNING

!

When you connect or disconnect the Removable Terminal Block
(RTB) with field side power applied, an electrical arc can occur. This
could cause an explosion in hazardous location installations. Be sure
that power is removed or the area is nonhazardous before proceeding.

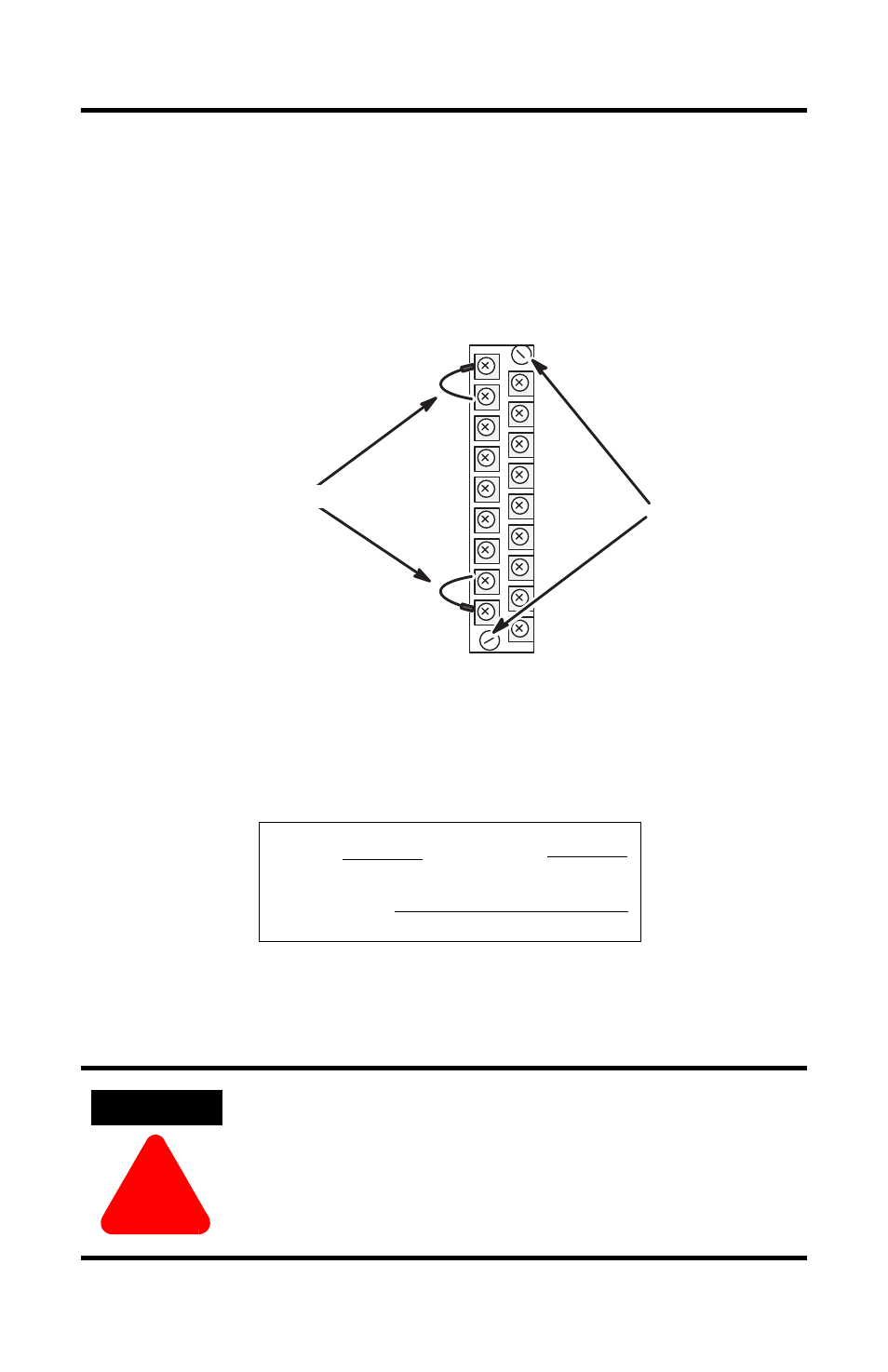

CJC sensors

retaining screws

RTB

SLOT

RACK

MODULE
