Wire the rtb, Cold junction compensation (cjc) – Rockwell Automation 1746-BTM Barrel Temperature Control Module Installation Instructions User Manual

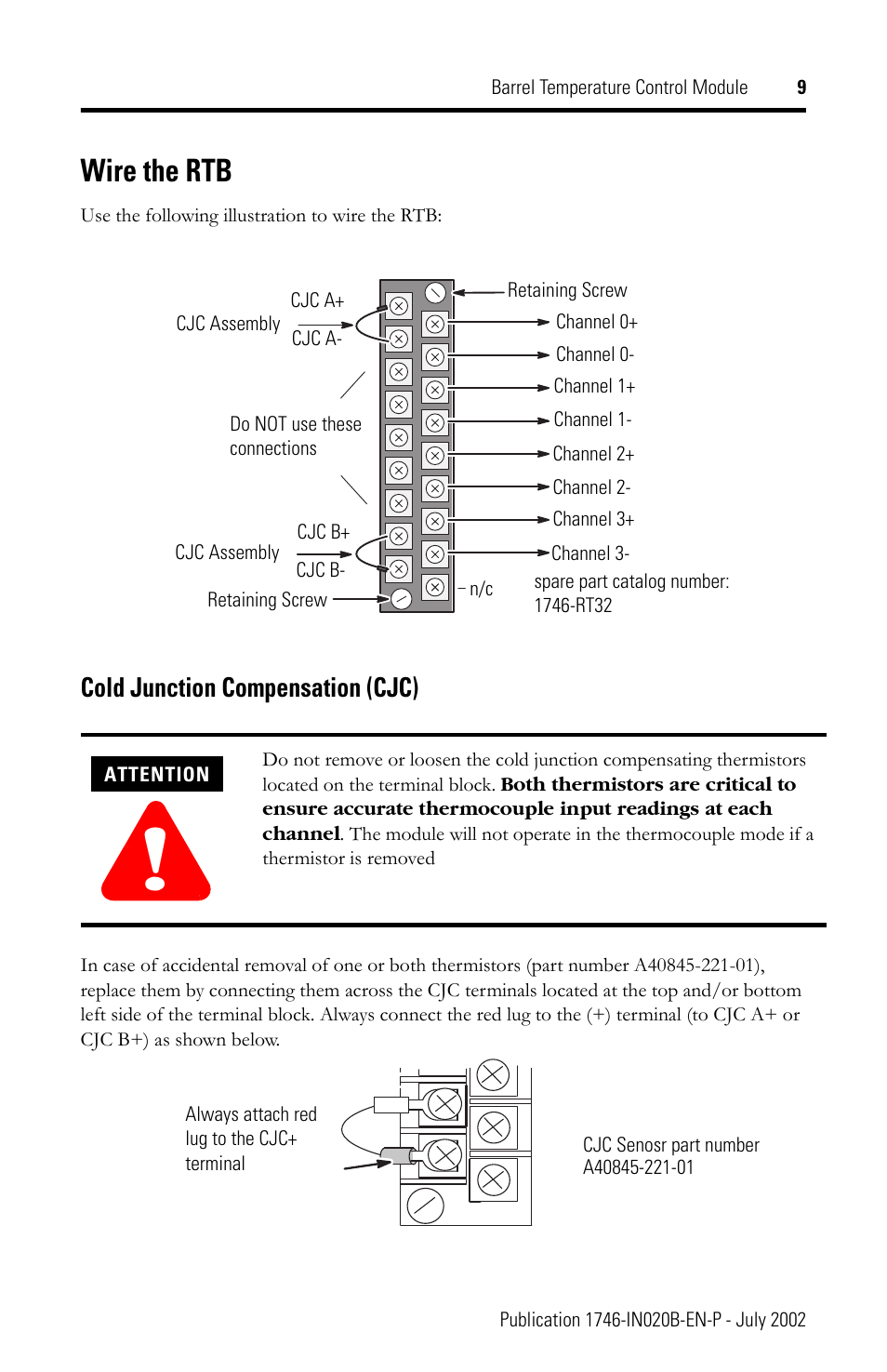

Page 9
