CP13 Cable 2
Publication 1784Ć5.26 - May 1996

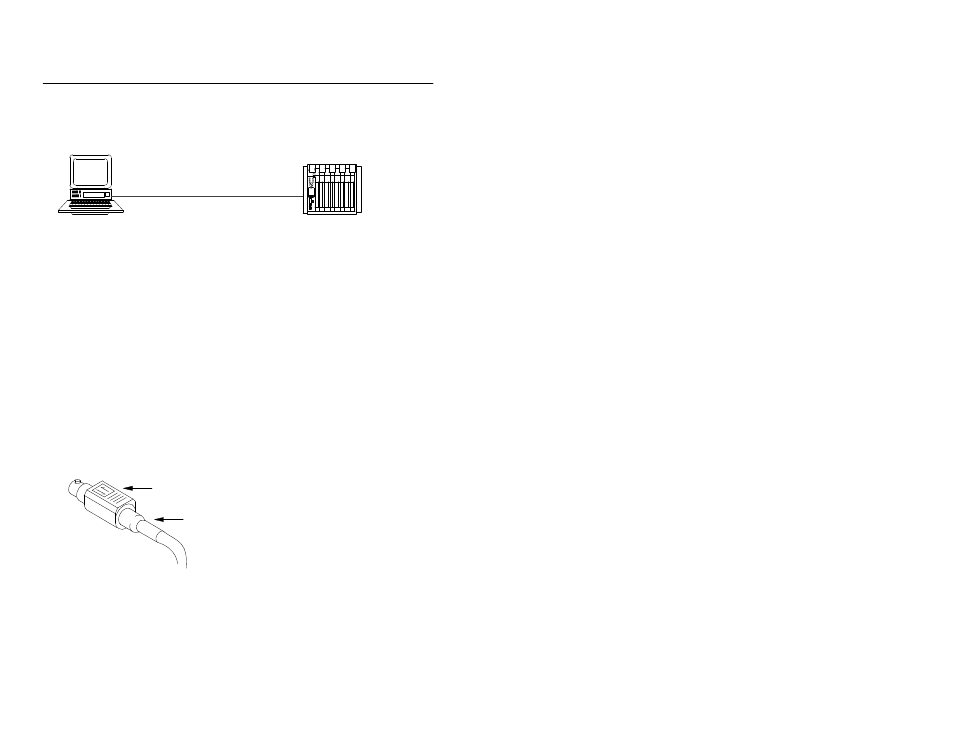

Figure 2
Enhanced PLCĆ5 connection
1784ĆCP13 cable
personal computer PLCĆ5 processor
For additional information, refer to the 1784-KTx Communication
Interface Card User Manual, publication 1784-6.5.22, or the
documentation for your enhanced PLC-5 processor.
Disconnecting the Locking Connector
The 8-pin mini-DIN connector locks in place. To remove the connector
from its mating socket, follow these steps:
1. Hold the connector in place by the strain relief.
connector body
strain relief
20757M(i)
2. Pull back on the connector body to release the lock.
3. Pull the connector from its mating socket on the processor.
