2-6 Set Up the Hardware
Install the I/O Modules
For more information, see the installation instructions or user manual
for the specific module you are installing.
Power Up the System
Power up the system. Check the LED display on the processor. If
your system is operating properly, the PROC LED should be steady
red. If the PROC LED is not red, check operation of power or power
supply.
Connect the Personal
Computer to the
PLC-5 Processor
To connect the personal computer to the PLC-5 processor, refer to the
following publications:
• ControlNet PLC-5 Programmable Controllers User Manual,
publication number 1785-UM022
• Enhanced and Ethernet PLC-5 Programmable Controllers User
Manual, publication number 1785-6.5.12
• the documentation provided with your communication card
• Data Highway/Data Highway Plus/Data Highway II/Data
Highway 485 Cable Installation Manual, publication 1770-6.2.2
If you insert or remove the module while backplane
power is on, an electrical arc can occur. This could
cause an explosion in hazardous location
installations. Be sure that power is removed or the
area is nonhazardous before proceeding.

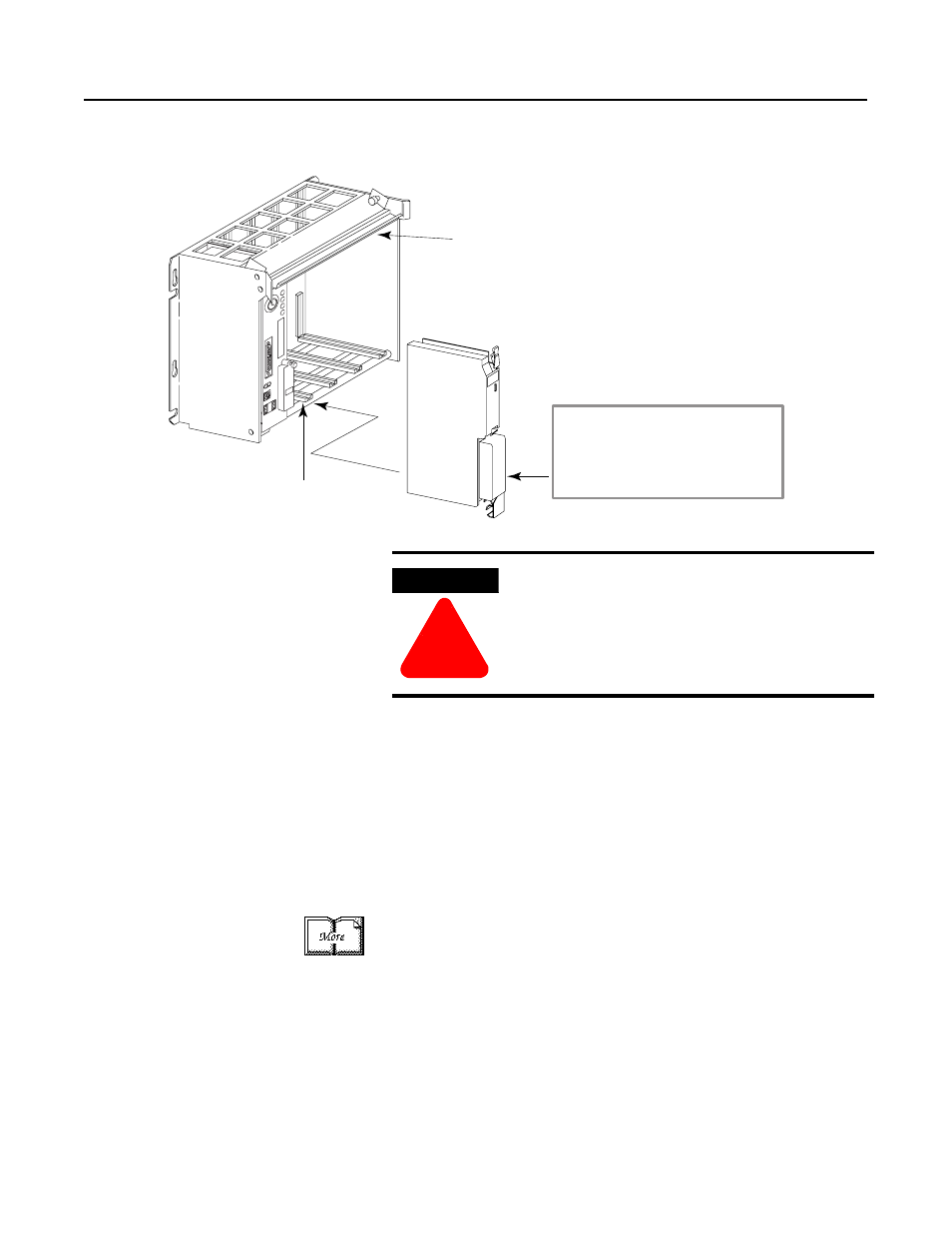

Locking
Bar
Card Guides
20618-M
Install each I/O module and connect
the wiring arm. Refer to the user
documentation you recieved with
the I/O module for more detailed
installation requirements.
WARNING
!
