Compact 32-point Solid-state 24V dc Source Output Module 3
Publication 1769-IN031A-EN-P - April 2003

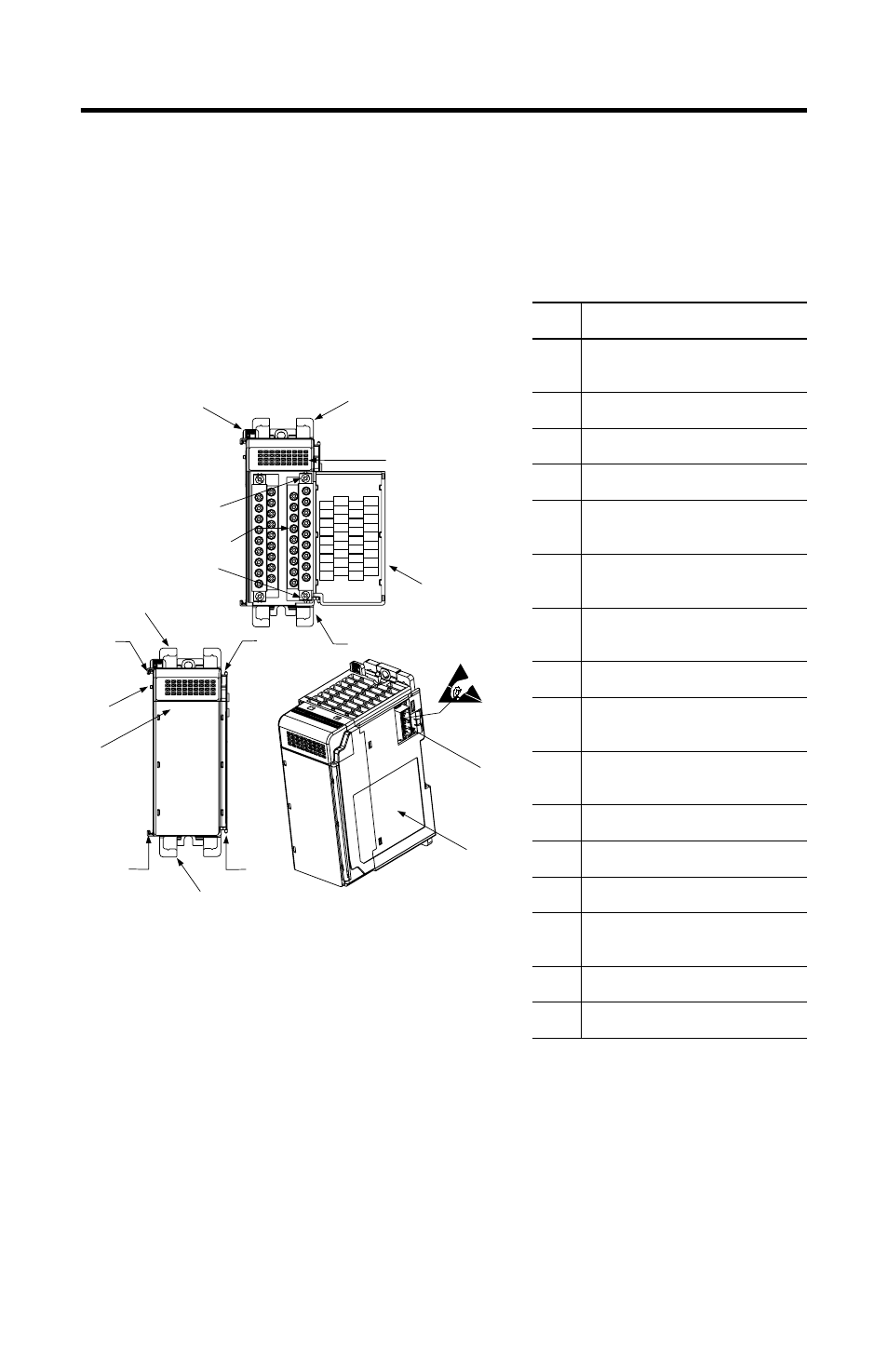

Module Description
Item Description
1 bus lever
(with locking function)
2a upper panel mounting tab
2b lower panel mounting tab
3 I/O diagnostic LEDs
4 module door with terminal
identification label
5a movable bus connector
with female pins
5b stationary bus connector
with male pins
6 nameplate label
7a upper
tongue-and-groove slots
7b lower
tongue-and-groove slots
8a upper DIN rail latch
8b lower DIN rail latch
9 write-on label (user ID tag)
10 removable terminal block (RTB)
with finger-safe cover
10a RTB upper retaining screw
10b RTB lower retaining screw
10a
10b
4
10
3
2a
1
2b
5a
9
7a
7b
8b
7b
8a
7a
5b
6
1769-OB32
WARNING -Do Not
Remove RTB Unless
Area is Non-Hazardous
30537-M
DC
COM 1
OUT 14
OUT 12
OUT 10
OUT 8
OUT 6
OUT 4
OUT 2
OUT 0
OUT 15
OUT 13
OUT 11
OUT 9
OUT 7
OUT 5
OUT 3
OUT 1
+VDC 1
DC
COM 2
OUT 30
OUT 28
OUT 26
OUT 24
OUT 22
OUT 20
OUT 18
OUT 16
OUT 31
OUT 29
OUT 27
OUT 25
OUT 23
OUT 21
OUT 19
OUT 17
+VDC 2
