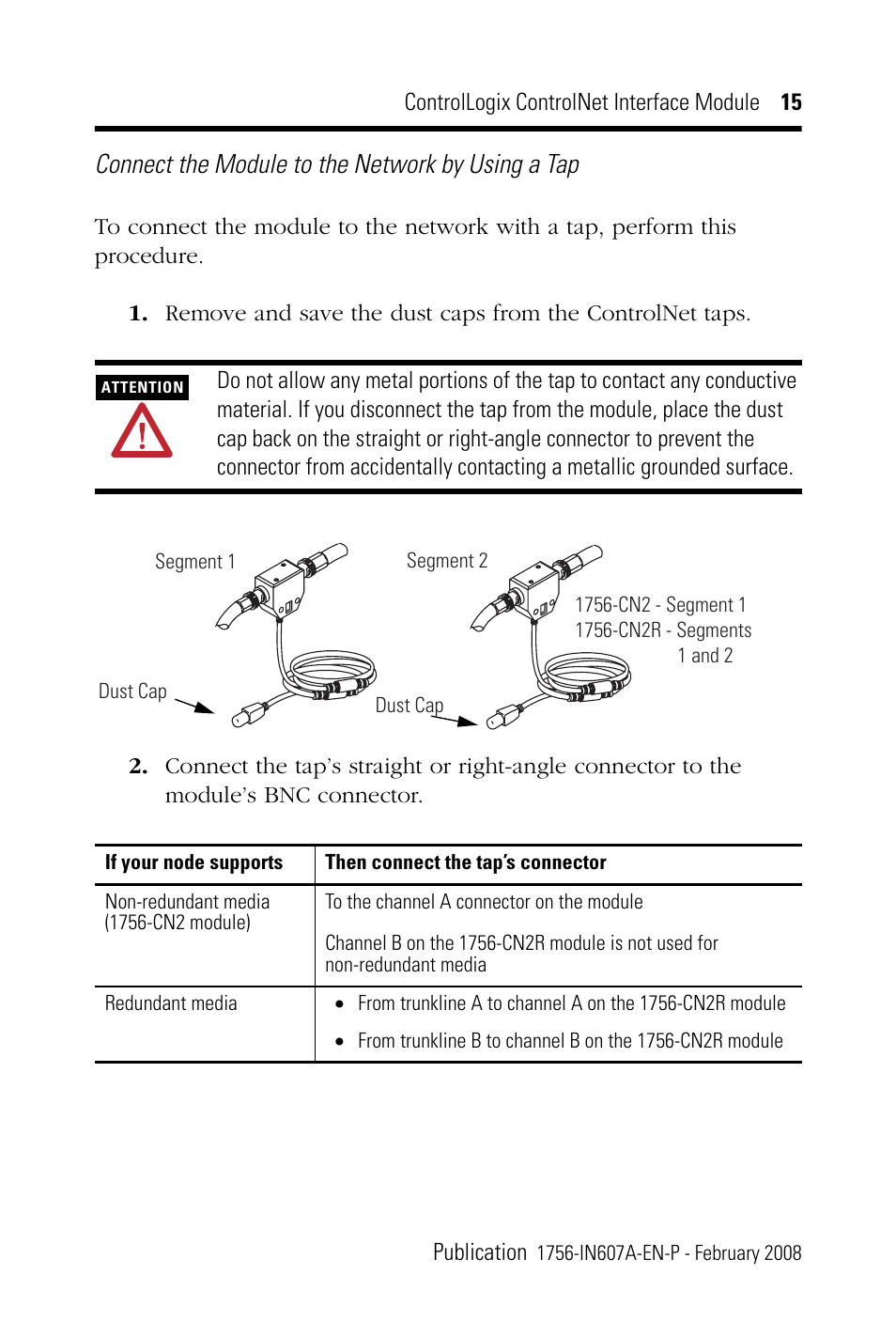

Connect the module to the network by using a tap – Rockwell Automation 1756-CN2_CN2R, Series B ControlLogix ControlNet Interface Module User Manual
Page 15
