Rockwell Automation 1734-ARM POINT I/O Address Reserve Module - Manual (Page 10)

10 POINT I/O Address Reserve Module
Publication 1734-IN019A-EN-E - May 2005

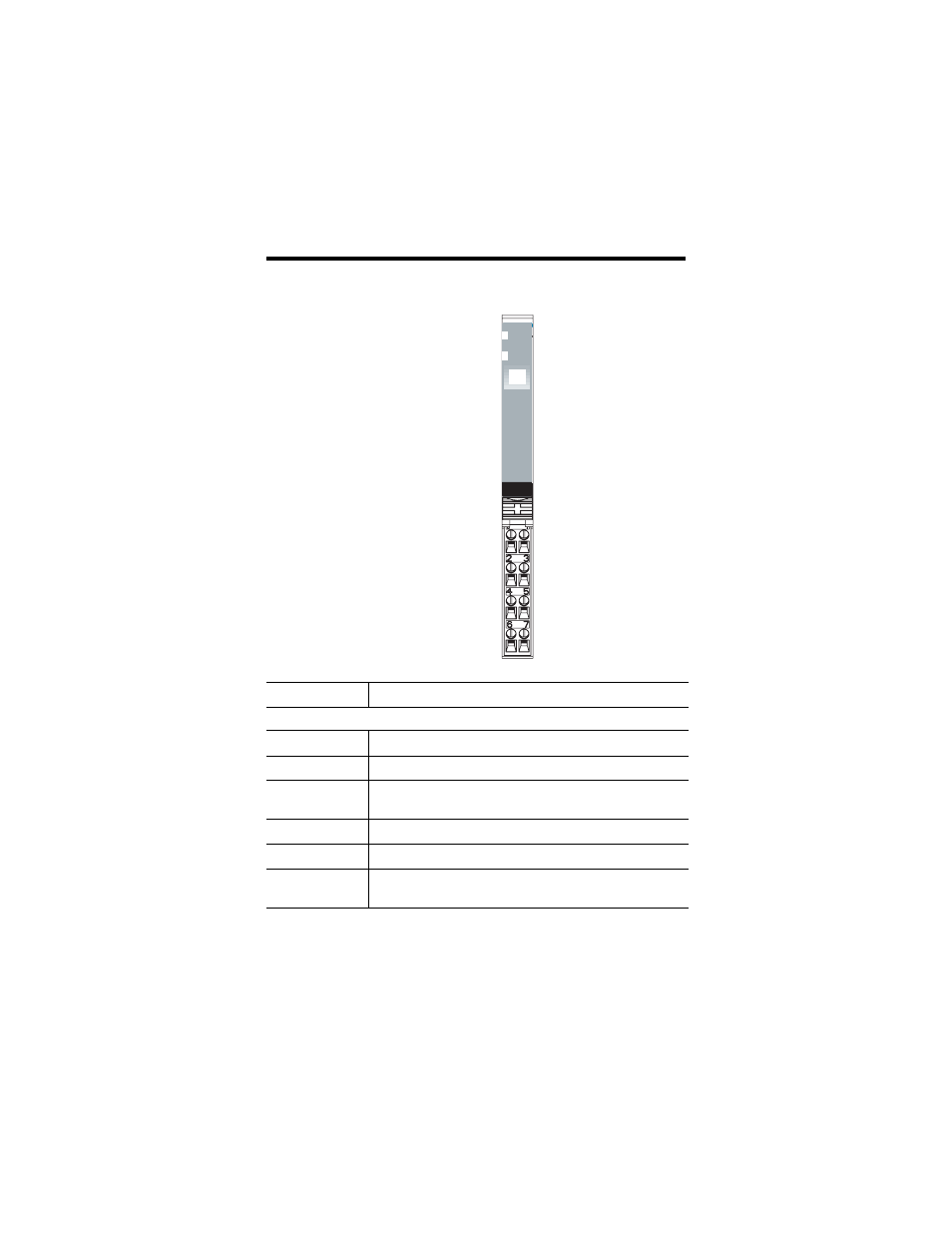

Troubleshoot with the Indicators
Indication Probable Cause
Module Status
Off No power applied to device.
Green Device operating normally.
Flashing Green Device needs commissioning due to configuration missing,
incomplete or incorrect.
Flashing Red Recoverable fault.
Red Unrecoverable fault may require device replacement.
Flashing Red/
Green Device is in self-test.
