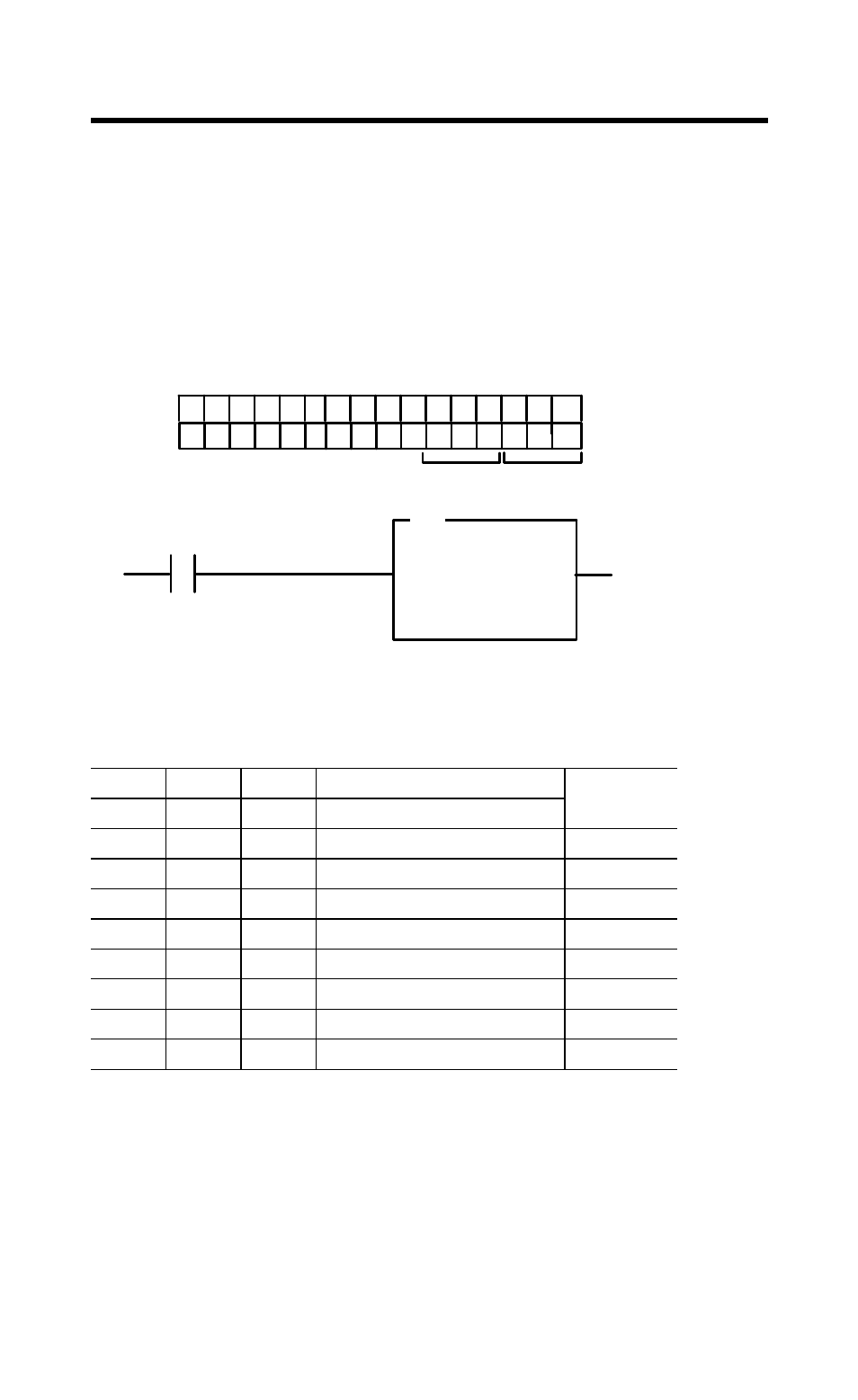

Setting the Input Delay Time
You can select the input delay time (DT) for channels 00 thru 11 and
channels 12 thru 15. Select the input delay time by setting the
corresponding bits in the output image table (complementary word) for the
module.
For example, to set a delay time of 4ms for an input module at address rack
1, module group 0, set bits 05, 04, 03, 02, 01 and 00 as shown below.
Input Delay Times
Important: Input and output wiring must be in accordance with Class I,
Division 2 wiring methods and in accordance with the
authority having jurisdiction
02 01 00 Filter Time for Inputs 00-11
Selected
Filter Time
05 04 03 Filter Time for Inputs 12-15
0 0 0 Filter Time 0 (default) 250
μs
0 0 1 Filter Time 1 500
μs
0 1 0 Filter Time 2 1ms
0 1 1 Filter Time 3 2ms
1 0 0 Filter Time 4 4ms
1 0 1 Filter Time 5 8ms
1 1 0 Filter Time 6 16ms
1 1 1 Filter Time 7 32ms
15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
1 0 0
= 44 Octal or 36 decimal
Write delay time on system startup.
Write DT to complement
of input module.
Fill File
Source
Destination
Length
3
#O:010
1
I:000
00
FLL
O:010
Dec.
41335B
1 0 0
DT 00-11 DT 12-15
