10 SLC 500™ RTD/Resistance Input Module

Publication 1746-IN007C-EN-P - December 2002

Terminal Block Wiring and Removal

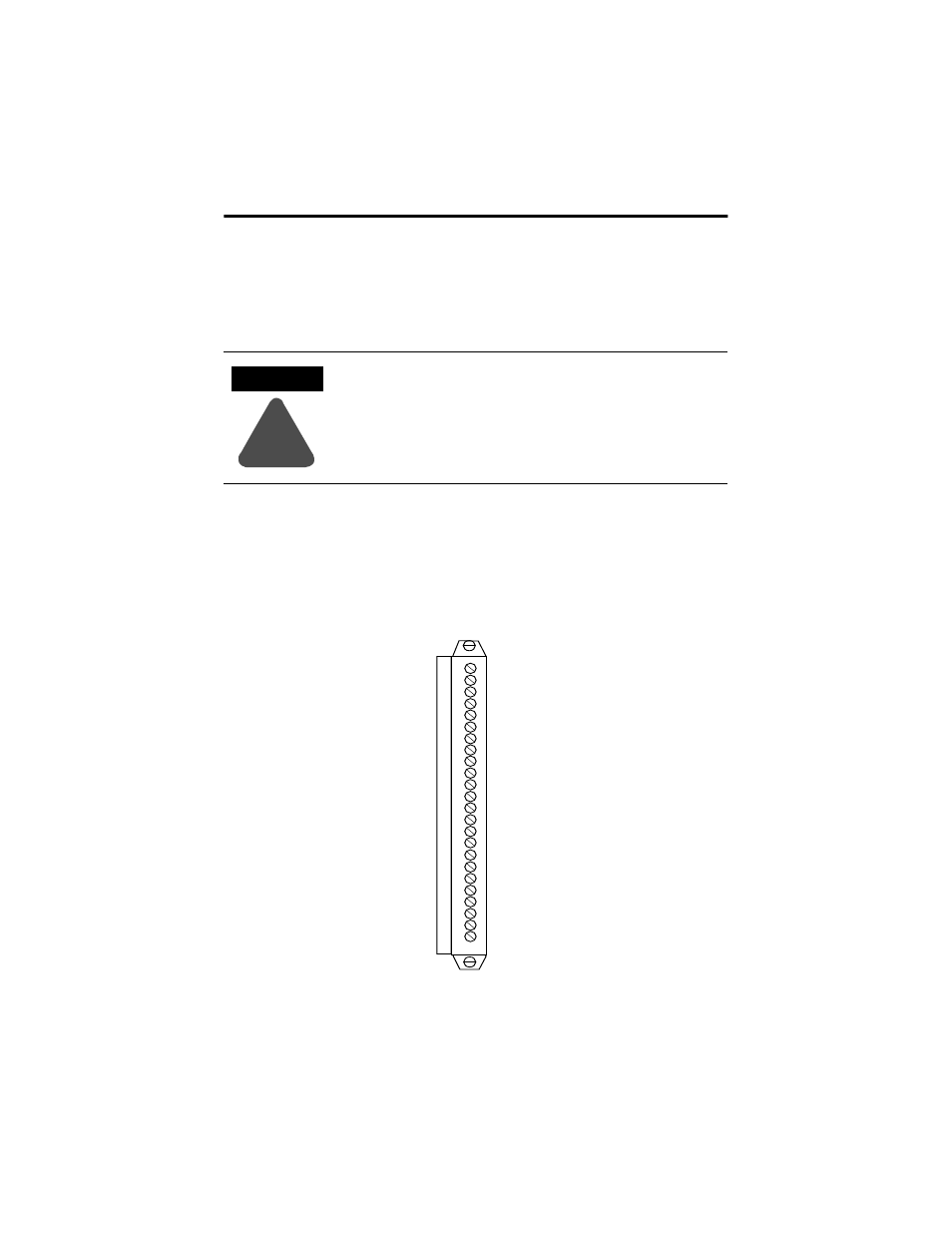

The RTD module contains an 24-position, removable terminal block. The terminal
pin-out is shown below.

Terminal Wiring

Terminal screws accept a maximum of one #14 AWG (2 mm

2

) wire. Tighten

terminal screws only tight enough to immobilize wires. Maximum torque on
terminal screws is 0.25 Nm (2.25 in-lb.).

ATTENTION

!

Disconnect power to the SLC before attempting to install,
remove, or wire the removable terminal wiring block.
To avoid cracking the removable terminal block, alternate the
removal of the terminal block release screws.

Release Screw Max Torque = 0.25 Nm (2.25 in-lb)

RTD 0
Sense 0
Return 0
RTD 1
Sense 1
Return 1
RTD 2
Sense 2
Return 2
RTD 3
Sense 3
Return 3
RTD 4
Sense 4
Return 4
RTD 5
Sense 5
Return 5
RTD 6
Sense 6
Return 6
RTD 7
Sense 7
