Connect the Wiring to the ArmorBlock Module
The block module uses quick disconnect, screw-on style connectors
for:
•
I/O input wiring
•
the DeviceNet connector
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

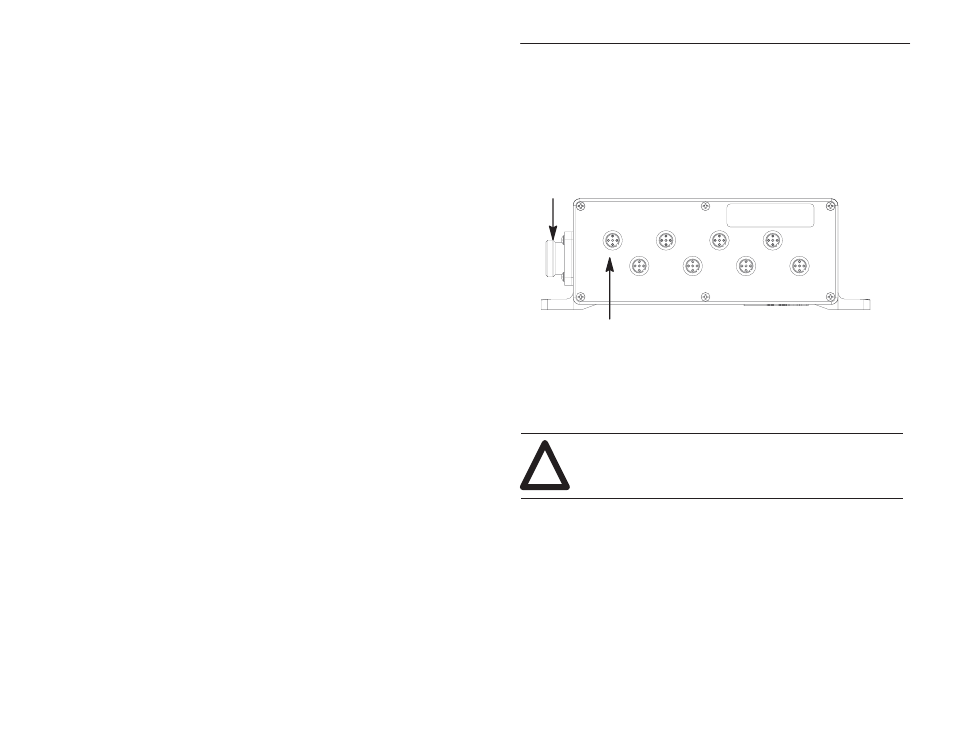

8 micro connectors for 16 input signal wiring
DeviceNet mini connector
Micro plugs are included with your module. Use these plugs to cover
and seal unused ports.
Pinout diagrams for these connectors are shown below.
!
ATTENTION: All connectors must be securely
tightened to properly seal the connections against leaks
and maintain NEMA 4X and 6P requirements.
