Rockwell Automation 1757-SWKIT5100 ProcessLogix R510.0 Server Installation Instructions User Manual
Page 10

10 ProcessLogix R510.0 Server Installation Instructions
Publication 1757-IN951B-EN-P - March 2006
Configuring RSLinx Drivers for ControlNet Supervisory Network
Complete the following steps to configure the ControlNet PCIC drivers for RSLinx.
If you are using Ethernet for your Supervisory Network, skip
to Configuring RSLinx Drivers for Ethernet Supervisory Network in
Chapter 3 of the R510.0 I&UG.
1. Click Start ⇒ Programs ⇒ Rockwell Software ⇒ RSLinx ⇒
RSLinx to call up
the Rockwell Software RSLinx window.

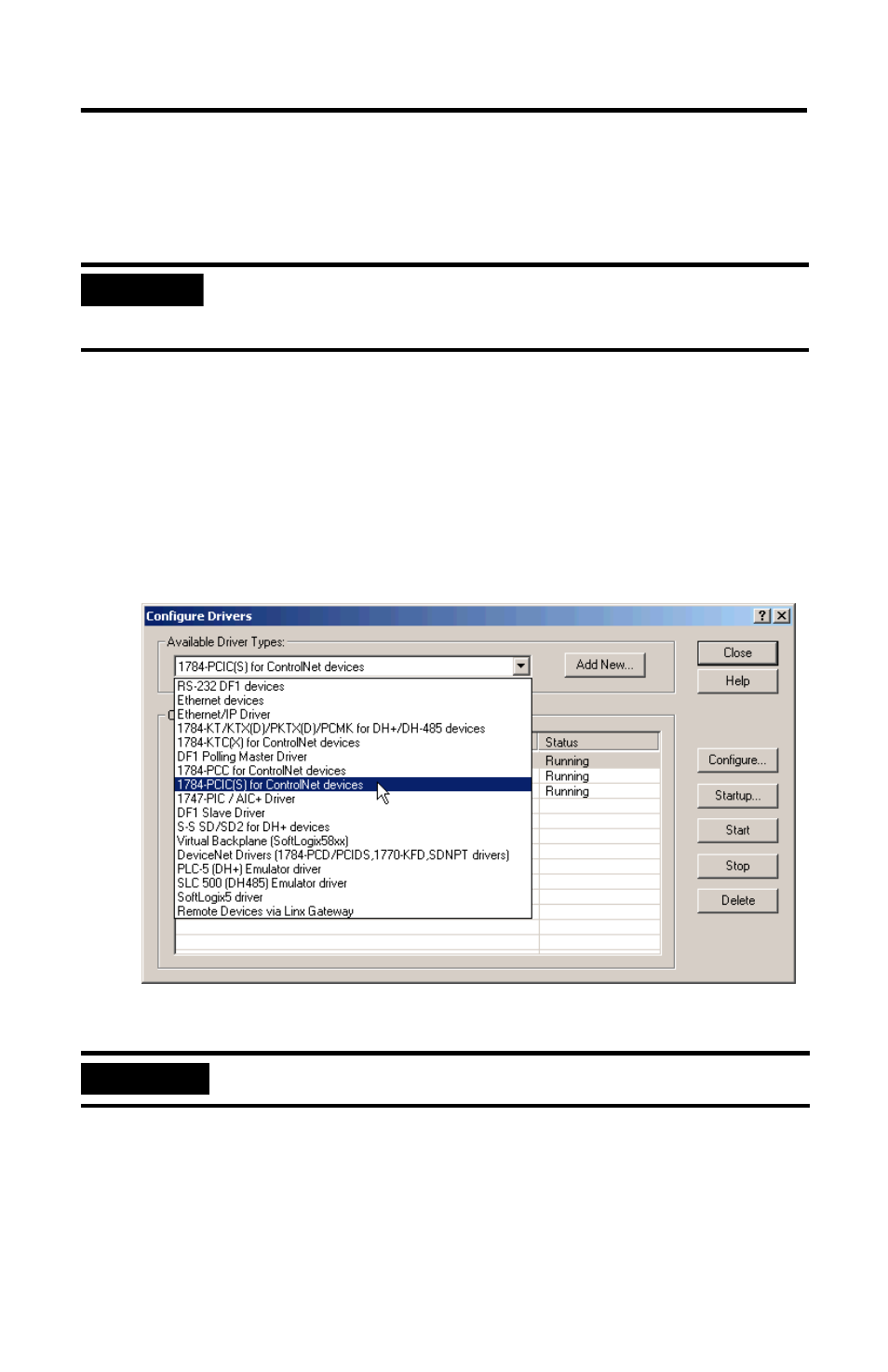

2. Click Communications ⇒ Configure Drivers to call up the Configure Drivers
dialog box.
3. Select 1784-PCIC(S) for ControlNet devices in the Available Drivers drop-down
list and click Add New to call up the Add New RSLinx Driver dialog box.
4. Click OK to accept the default name AB_PCIC-1 for the driver.
The driver name MUST be AB_PCIC-1.
IMPORTANT
IMPORTANT
