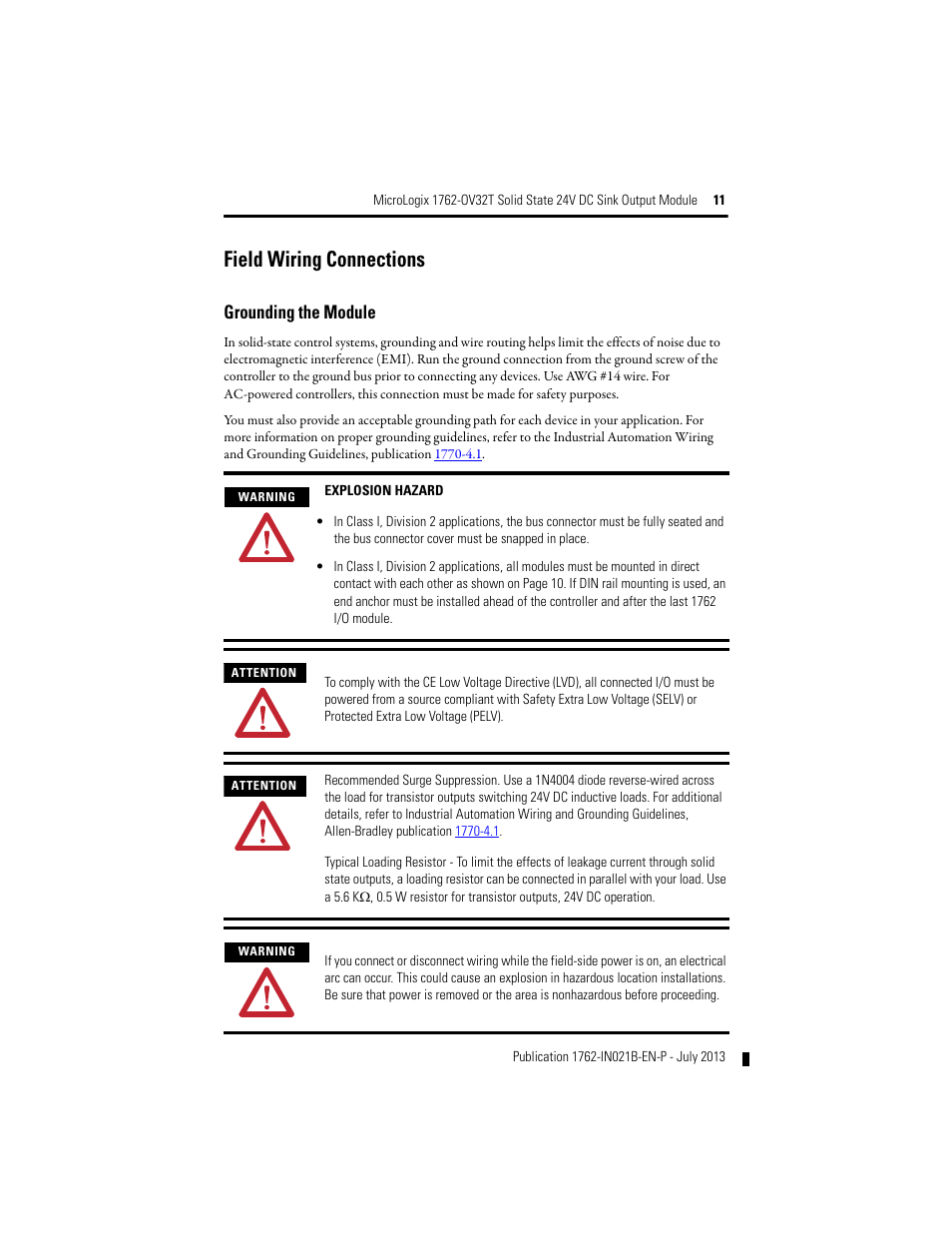

Field wiring connections, Grounding the module – Rockwell Automation 1762-OV32T MicroLogix Solid State 24V DC Sink Output User Manual
Page 11
