Setting the node address, Gsd file requirements – Rockwell Automation 1734-APB POINT I/O Profibus Adapter Module Installation Instructions User Manual
Page 6
6 POINT I/O PROFIBUS Adapter
Publication 1734-IN014C-EN-P - March 2002
Setting the Node Address
Set the node address using the 2-position thumbwheel switch. Valid settings
range from 01 to 99. Press either the + or - buttons to change the number.
GSD File Requirements
Current functionality of PROFIBUS adapters requires GSD files. These files
are easy to install and are available online at:
www.ab.com/networks/gsd/
.
Adapter
Status
PROFIBUS
Status
PointBus
Status
1734-APB
System
Power

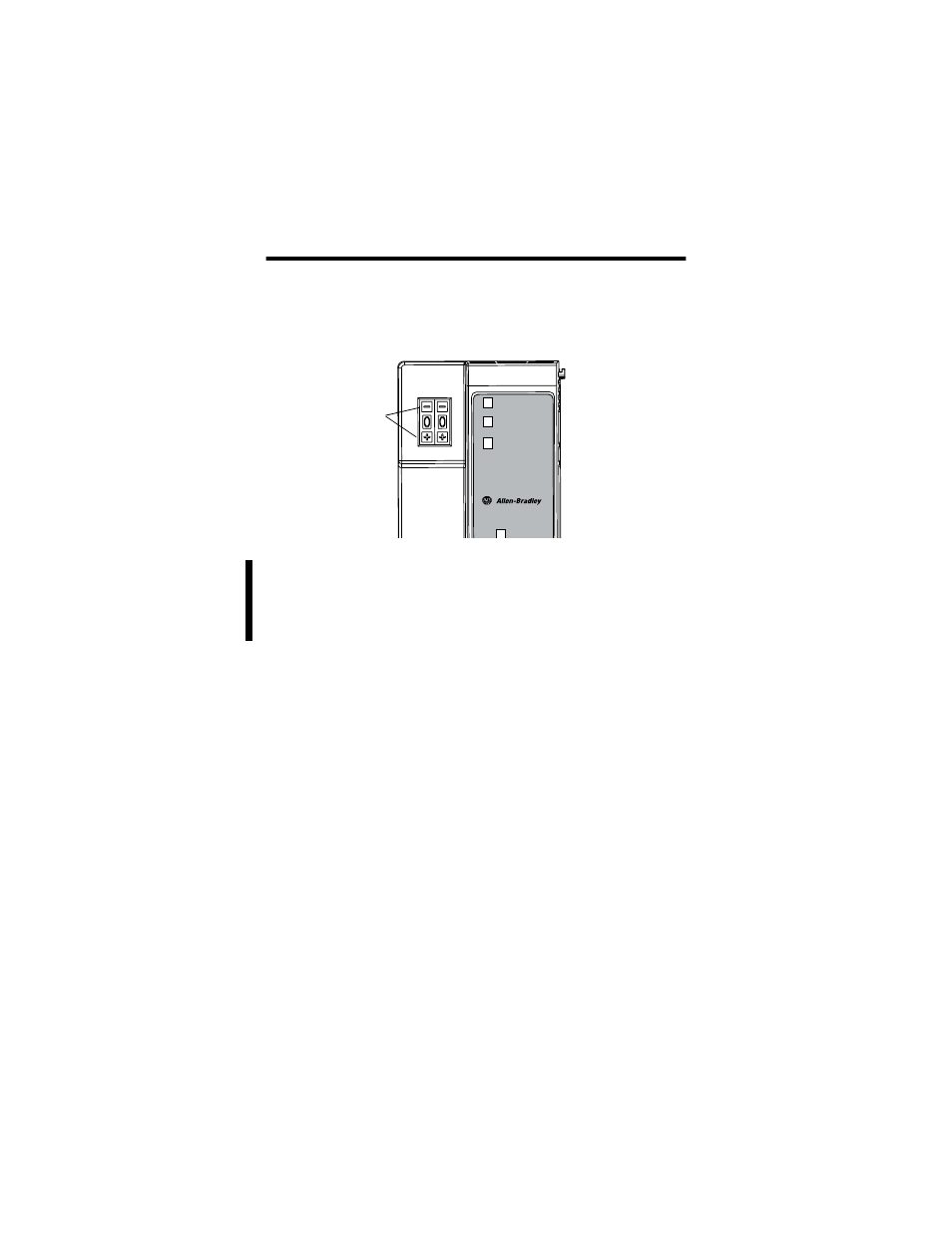

Network Node
Address Thumbwheel
Press either the + or -
buttons to change the
number
1734-2
