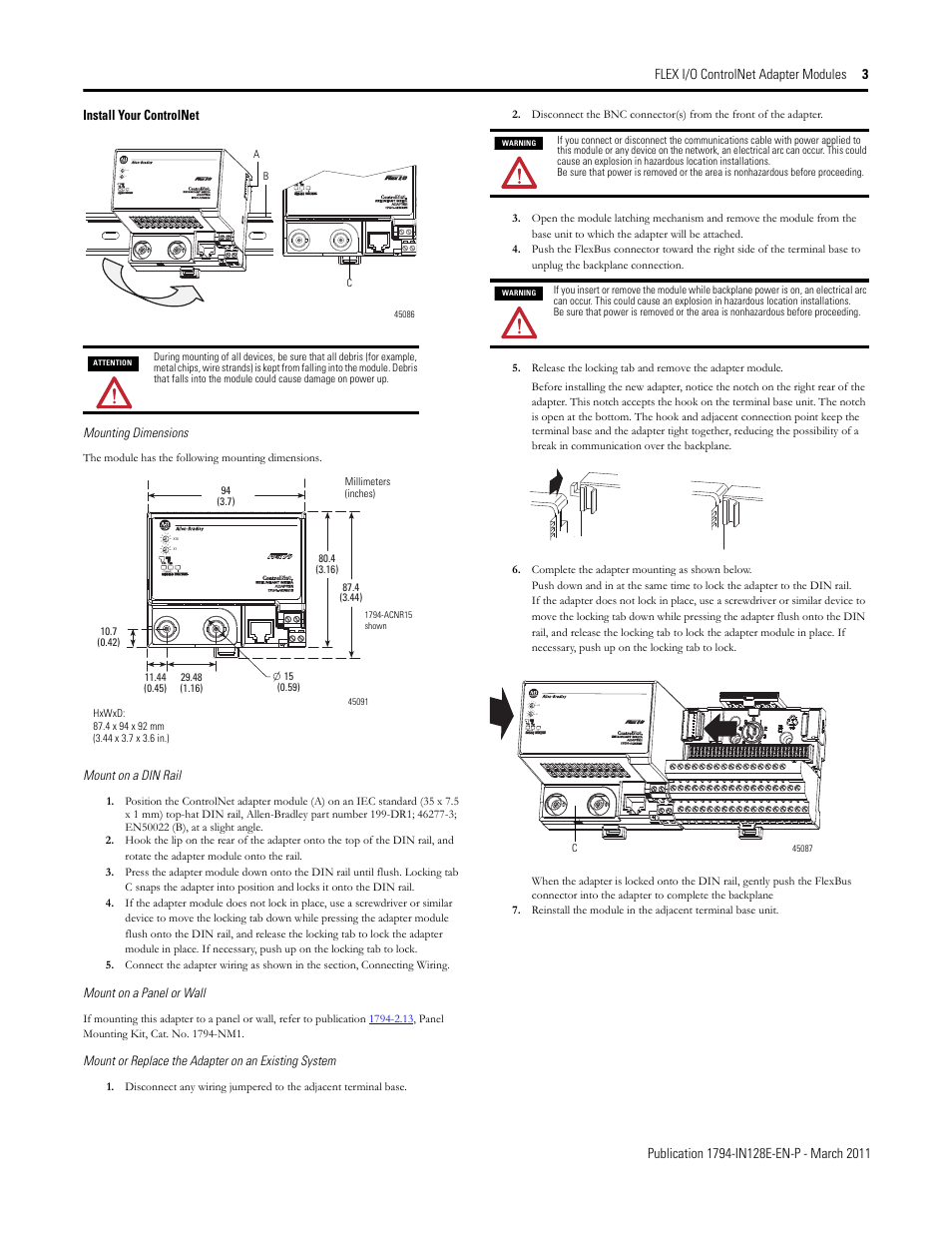

Install your controlnet, Mounting dimensions, Mount on a din rail – Rockwell Automation 1794-ACN15_ACN15K_ACNR15_ACNR15XT, Series D FLEX I/O ControlNet Adapter Modules User Manual
Page 3: Mount on a panel or wall, Mount or replace the adapter on an existing system
