ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 5
Publication
1792D-IN054B-EN-P - April 2003
Install Your ArmorBlock Cable Base
To install the cable base:
•
Mount the cable base
•
Attach the module to the base
•
Attach the cables
These procedures are explained in detail in the following sections.

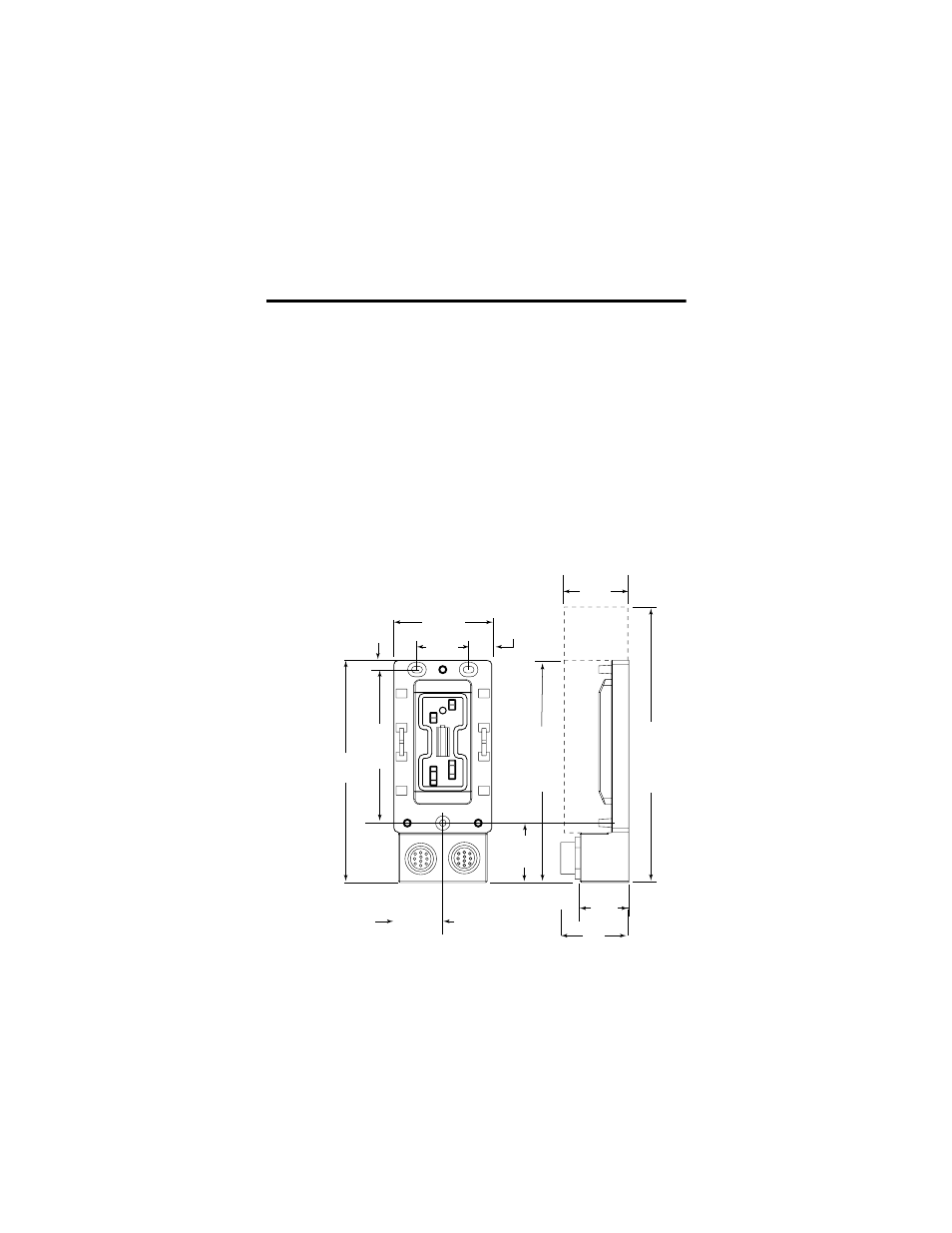

Mount the Cable Base
The cable base can be mounted either vertically or horizontally, using
3 screws. Cable bases accommodate 4 or 8 point ArmorBlock MaXum
modules. You must allow additional space for installation of 8 point
ArmorBlock MaXum module, which are longer than 4 point modules.
43332
When
installing a
cable base
with an 8
connector
module,
allow for
the
additional
length.
1792D-CB23
1.34in
34mm
1.63in
41.5mm
6.10in
155mm
4 connector
module
8.23in
209mm
8 connector
module
1.90in
48.18mm
2.70in
68.5mm
1.42in
36mm
0.64in
16.25mm
0.26in
6.5mm
4.21in
107mm
2.27in
57.6mm
6.10in
155mm
1.35in
34.25mm
