Connect the cable – Rockwell Automation 1784-PCM5/B CABLE Installation Instructions User Manual
Page 4

1784-PCM5/B Cable
4
Publication 1784Ć5.23 - January 1997
!
ATTENTION: The adhesive on the wedge is very strong.
Once you remove the protective paper and attach the
wedge to the computer, you cannot remove the wedge.
Be sure you are confident about the position of the wedge
before you secure it.

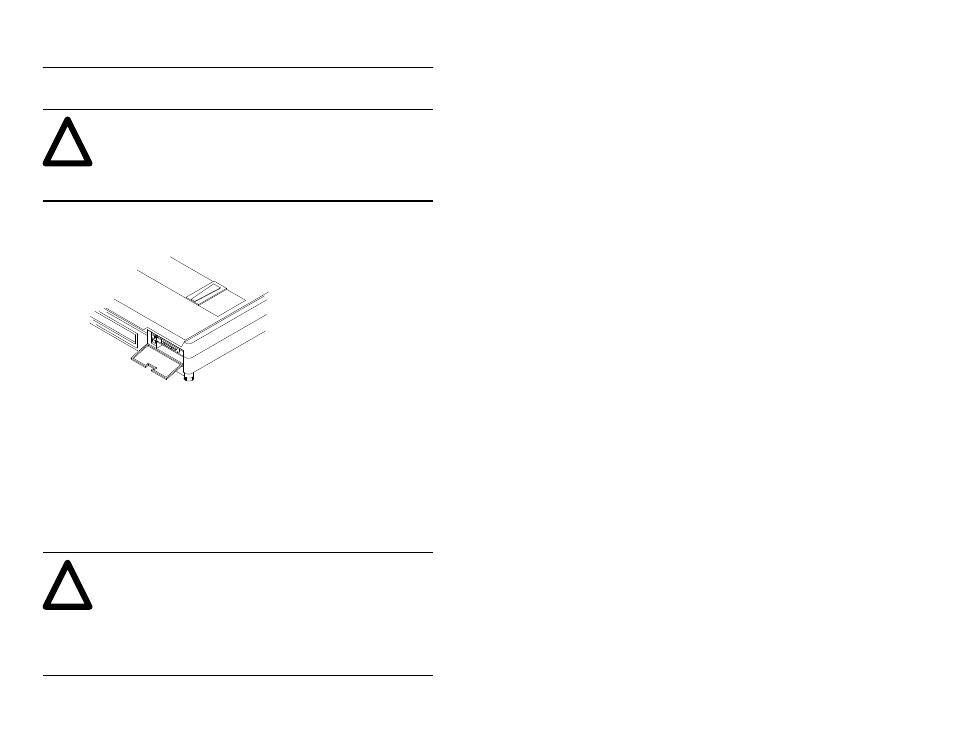

5. Place the wedge on the computer where you marked the location.
19873
Connect the Cable
Important: When installing your 1784-PCM5/B cable, make sure you:
•
securely attach the cable connector to the 1784-PCMK/B card (check
this connection if you are experiencing communication problems)
•
use the wedges to support the weight of the pod
•
do not bump the cable or connected hardware and inadvertently
disconnect the cable
!
ATTENTION: The 1784-PCM5/B cable does not have a
loopback connector. When you run the loopback
diagnostic test, connect the 1784-PCM5/B cable to the
1784-PCMK card; DO NOT connect the cable to your
DH+ link. Connecting the 1784-PCM5/B cable to your
DH+ link will cause the test to fail and result in possible
noise on your network.
