Installation Instructions 7
Publication 1746-IN004B-EN-P - March 2008

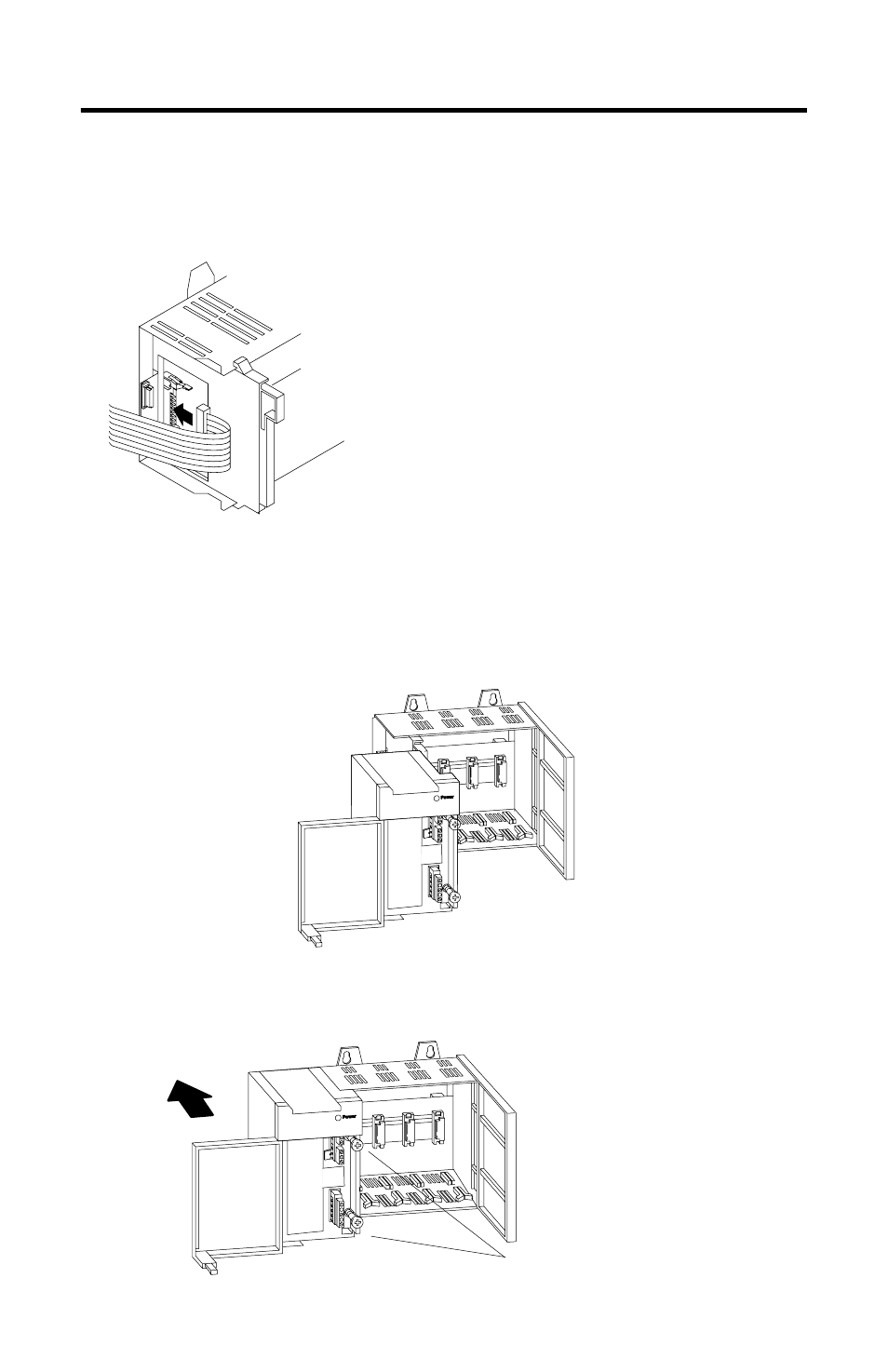

Install the Chassis Interconnect Cable (optional)
To connect up to three SLC 500 chassis together, install the chassis interconnect
cable before installing the power supply.
Power Supply Installation
1. Align the circuit board of the power supply with the card guides on the left
side of the chassis.
2. Slide the power supply in until it is flush with the chassis. Then fasten the
power supply to the chassis.
SLC 500 Chassis/A
For more information, see the SLC 500
Modular Hardware Style User
Manual, publication 1747-UM011.
Use these screws to fasten the power supply
to the chassis with 1.2 Nm (11 lb-in) torque,
max.
