Rockwell Automation 1494C-xxx Cable Operated 30A / 60A / 100A Disconnect Switch User Manual
Page 2
PN-133645
DIR 42052-151 (Version 03)
Copyright © 2013 Rockwell Automation, Inc. All Rights Reserved. Printed in USA.

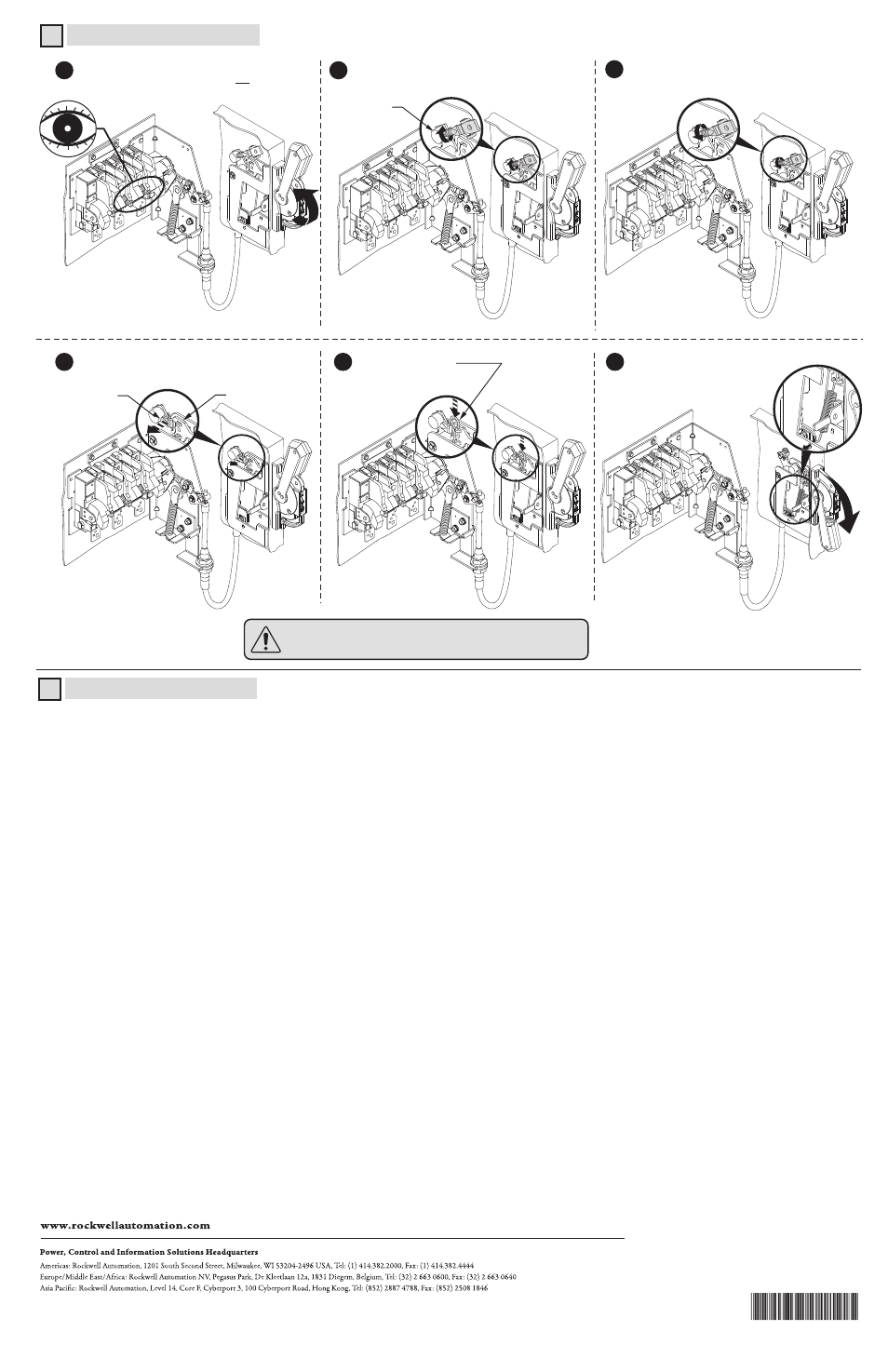

Cable Mechanism Installation
3
1
2
Rotate connecting rod (clockwise) into drive bar
until it bottoms out.
Verify that disconnect switch and handle are in
"ON" position. (Switch blades will not be visible).
4
Align connecting rod with primary link.
5
Install hitch pin clip.
6
Turn disconnect handle "OFF" and
install handle mechanism spring.
Connecting
Rod
Primary Link
Rotate connecting rod (counter-clockwise)
1 full turn.
3
Drive
Bar
ATTENTION: Check for proper operation. Upon successful completion of the
installation instructions no further adjustment of the cable mechanism is required.
Go to Installation Instruction Sheet 42052-123-01.
Trailer Fuse Block Installation
4
Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Publication 1494C-IN001C-EN-E - January 2013
