Rockwell Automation 1336S Language Module Installation/Replacement User Manual
Page 3

1336 PLUS Language Module Installation/Replacement
3

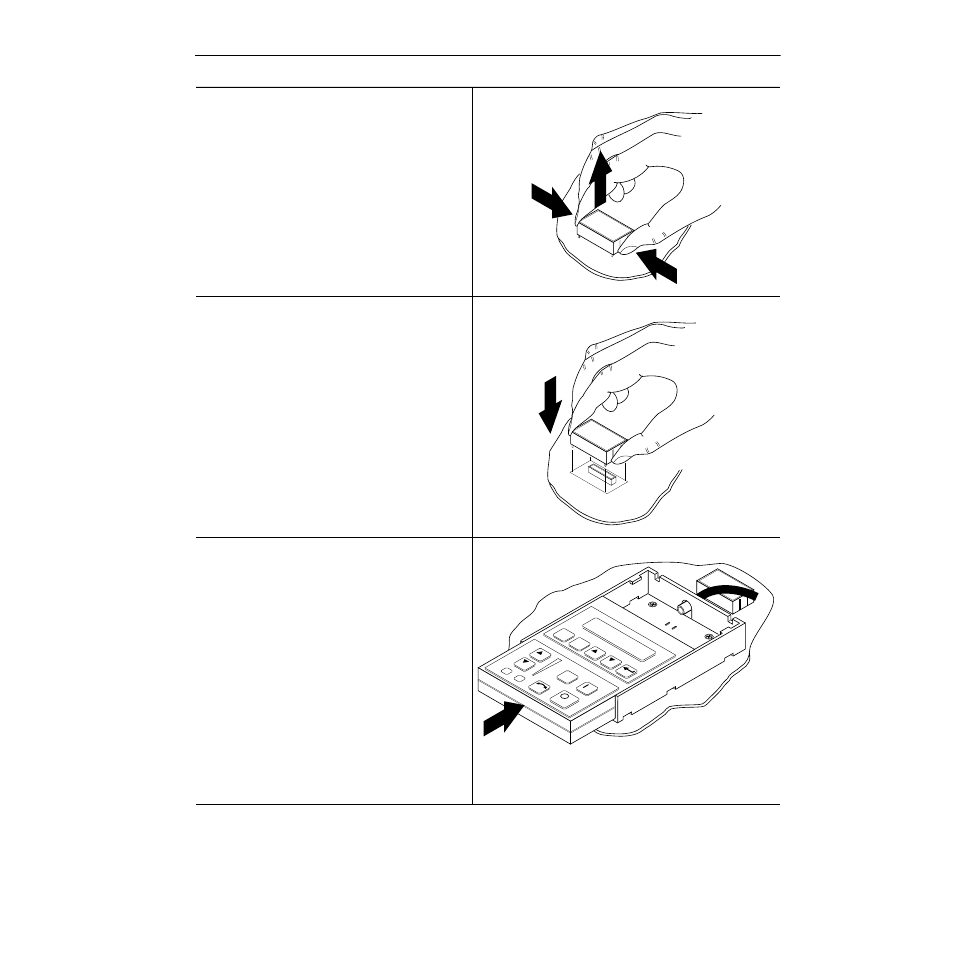

4. Remove the module by squeezing the sides-
in, and pulling outward. Discard module.
5. Position the new Language Module on the
Main Control Board, using the silk screen
outline on the board as a guide.
6. Carefully align the module connector with
the Main Control Board connector. Firmly
press the module onto the Main Control
Board until fully seated. The module will
“snap” (lock) in place.
7. Replace HIM and cradle (if removed).
Replace drive cover and restore power to the
drive. An
F53, F54
or
F66
fault will occur.
Reset parameters to the factory default values
– then, clear the fault by pressing the Stop
key or cycling power. The drive may now be
programmed as required.
Important:
Each module contains English
and an alternate language. The
factory default setting for the
[Language] parameter is
“English.” To program and
operate the drive in the alternate
language, the [Language]
parameter must be programmed
to the alternate language.
LANGUAGE MODULE
ALLEN-BRADLEY
LANGUAGE MODULE
ALLEN-BRADLEY
LANGUAGE MODULE
ALLEN-BRADLEY
JOG
ESC
SEL
