Control-Pak Replacement (Cont'd)
42052-088-01 (1)
Printed in U.S.A.
PART
NO.
MATERIAL
CHG.
CHAR. SIZE
FLAT FOLD
-01 1
TWO SIDES PRINTED
8-1/2" W x 11" H
BODY STOCK WHITE
BODY INK BLACK
4-1/4" W x 5-1/2" H

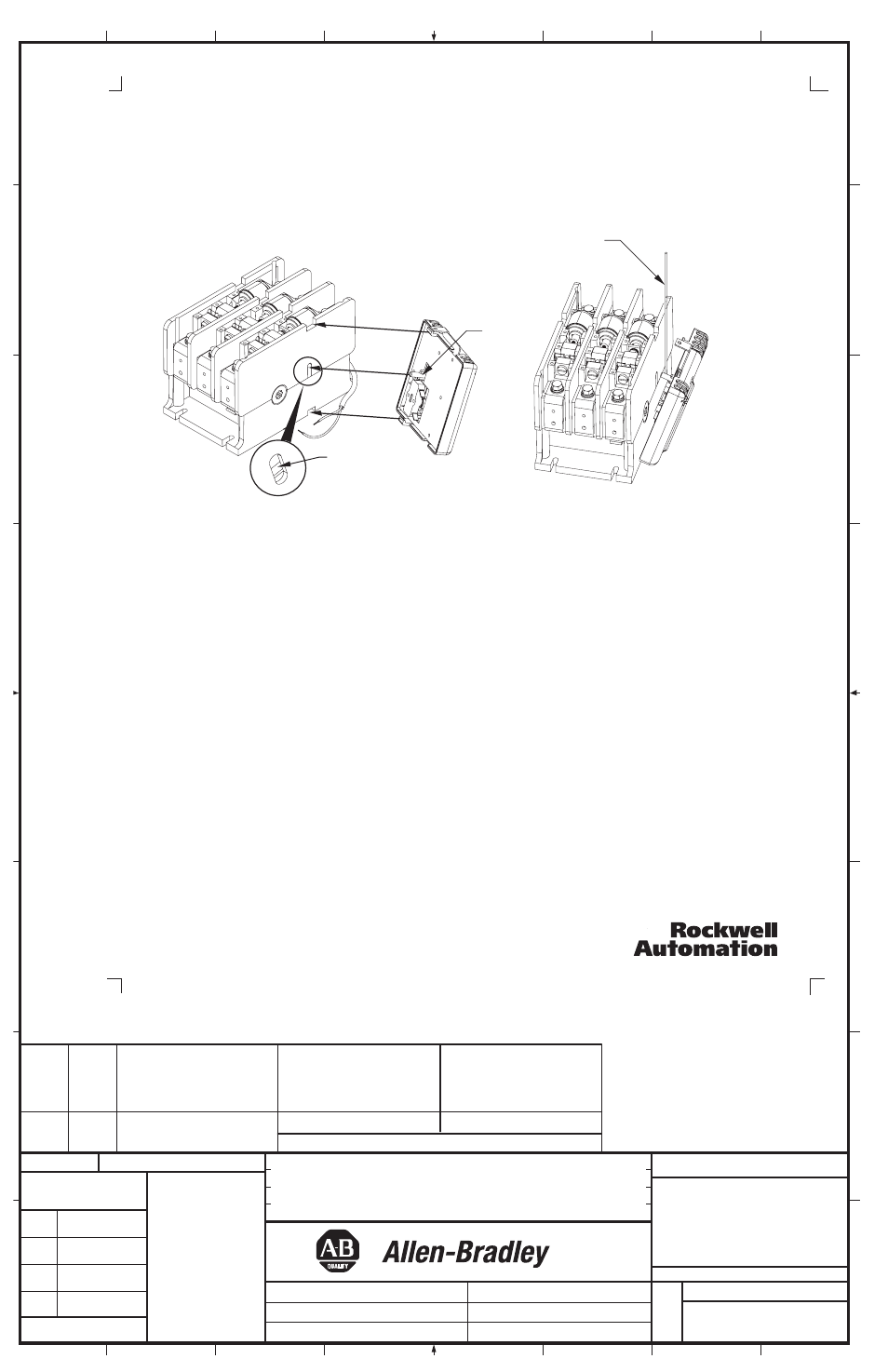

6. Install the new Control-Pak (Figures 3A & 3B). First, insert the lower tab into the recess on the side of the contactor
base. With proper installation, the Actuator will fit into the hole in the slot in the side of the contactor housing. Using a
thin rod or flat blade, push the Actuator up or down as necessary to insert it into the slot mentioned
7. Confirm position of retainer (adjust if necessary) (See Figure 1).
8. Reinstall the cover and secure it with the original mounting hardware. NOTE: Cover must fit under metal bracket on
Control-Pak. Tighten the four screws in a diagonal pattern to 5 lb-inches (Figure 1).
9. Reattach the coil wire leads and any auxiliary control wires to the Control-Pak (tighten to 7 lb-inches).
10.Reinstall the contactor.
11.Reconnect the line and load conductors and tighten the main terminal hardware and bolts to 150 - 180 lb-inches.
Control-Pak
Actuator
Actuator
must fit into slot
shown
Figure 3A Figure 3B
Thin rod or flat blade
