Disconnect Switch Kit
Handle
Switch
Fuse
Block
Fuse
Clips
Cat No.
Switch for Right Hand Mechanism
1494F-D400 (400A)
Switch for Left Hand Mechanism
1494F-DX400 (400A)
1494F-M2 (7-1/2" Painted Metal) (400A - 600A)
1494F-S2 (7-1/2" Stainless Steel) (400A - 600A)
1494V-FS400 (400A)
1401-N45 (Class H,J, 200A - 250V, 200A - 600V)
1401-N46 (Class H,J, 400A - 250V, 400A - 600V)
1401-N54 (Class R, 200A - 250V, 200A - 600V)
1401-N55 (Class R, 400A - 250V, 400A - 600V)
Cable with Right Hand Mechanism
1494C-CM9: 400A (4 Ft Cable)
1494C-CM10: 400A (5 Ft Cable)
1494C-CM11: 400A (6 Ft Cable)
1494C-CM12: 400A (10 Ft Cable)
Cable with Left Hand Mechanism
1494C-CMX9: 400A (4 Ft Cable)
1494C-CMX10: 400A (5 Ft Cable)
1494C-CMX11: 400A (6 Ft Cable)
1494C-CMX12: 400A (10 Ft Cable)
Cable
Mechanism

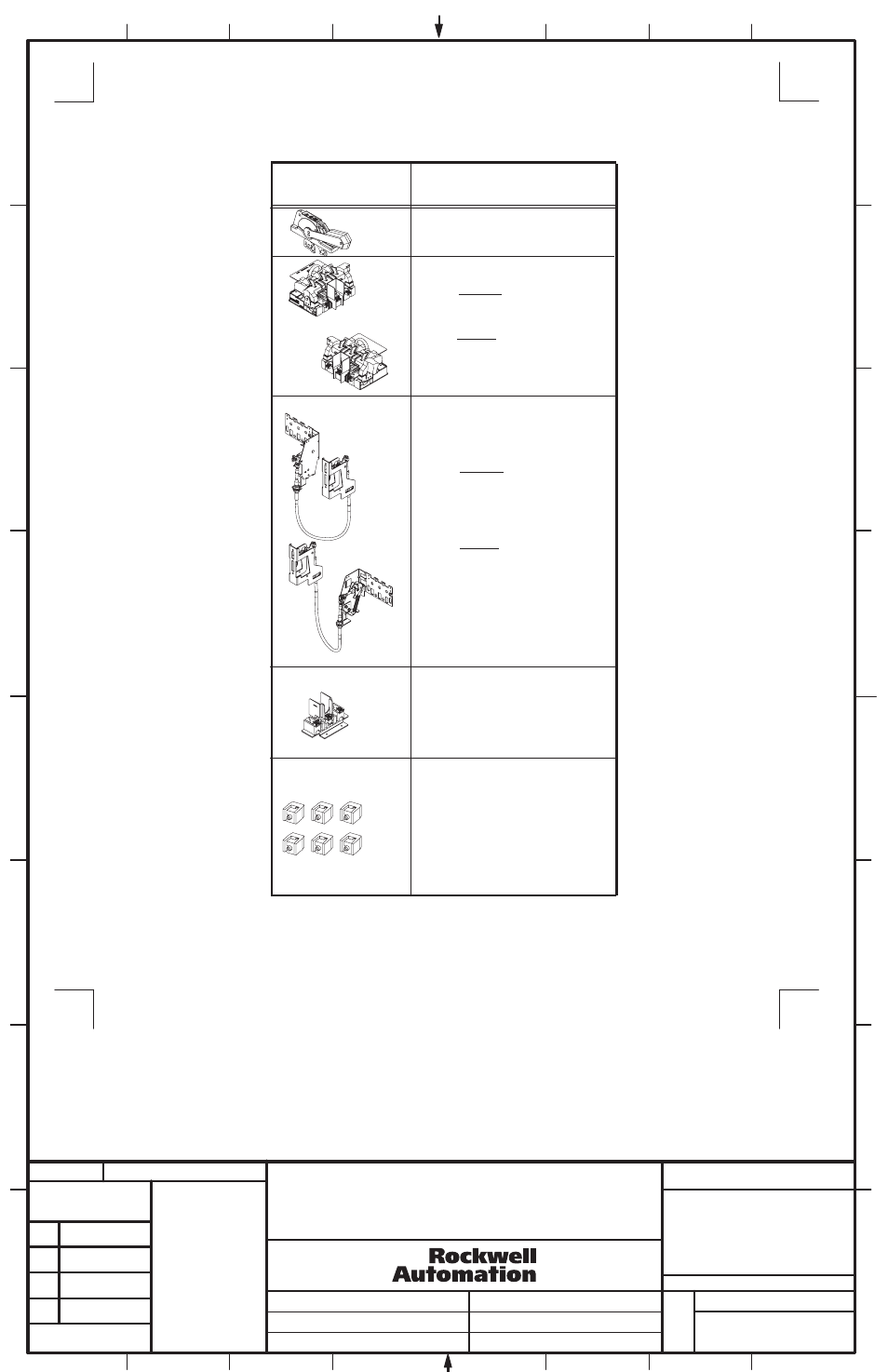

Bulletin 1494C Cable Operated Disconnect Switch Kit Components
