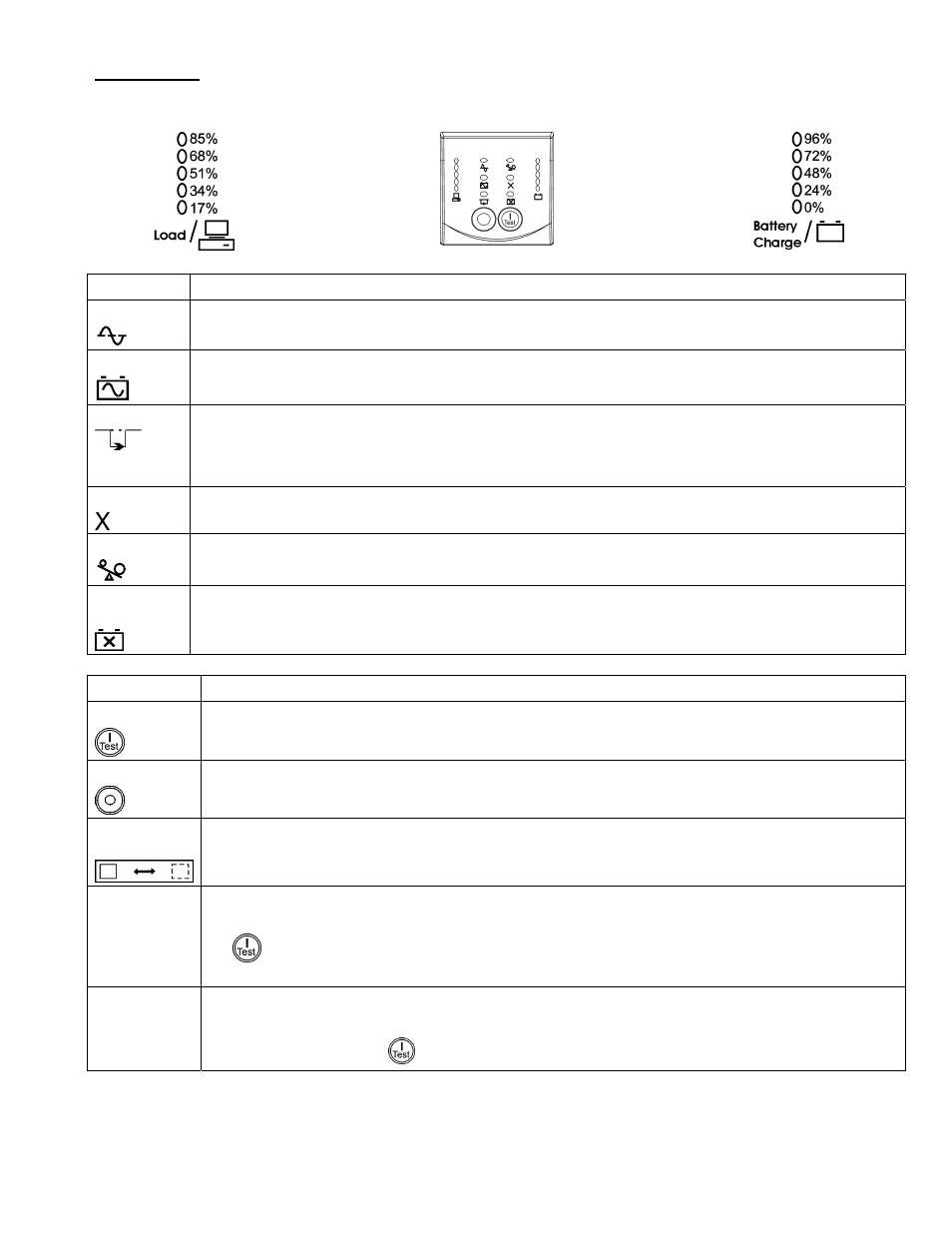

5

O

PERATION

F

RONT

D

ISPLAY

P

ANEL

Indicator Description

Online

The UPS is drawing utility power and performing double conversion to supply power to connected equipment
(see Troubleshooting).

On Battery

The UPS is supplying battery power to the connected equipment.

Bypass

The UPS is in bypass mode, sending utility power directly to connected equipment.
Bypass mode operation is the result of an internal UPS fault, an overload condition or a user initiated command
either through an accessory or the manual bypass switch. Battery operation is not available while the UPS is in
bypass mode (see Troubleshooting).

Fault

The UPS detects an internal fault (see Troubleshooting).

Overload

The connected loads are drawing more power than the UPS power rating (see Troubleshooting).

Replace
Battery

The battery is disconnected or must be replaced (see Troubleshooting).

Feature Function

Power On

Press this button to turn on the UPS. (Read on for additional capabilities.)

Power Off

Press this button to turn off the UPS.

Normal /
Bypass

Manually switch connected equipment to bypass mode, so that utility power is sent directly to connected
equipment. Battery operation is not available while the UPS is in bypass mode. (See Troubleshooting.)

Cold Start

This is not a normal condition.

Supply immediate battery power to the UPS and connected equipment (see Troubleshooting). Press and hold

the

button to power up the UPS and connected equipment. The UPS will emit two beeps. During the

second beep, release the button.

Self-Test

Automatic: The UPS performs a self-test automatically when turned on, and every two weeks thereafter (by
default). During the self-test, the UPS briefly operates the connected equipment on battery.

Manual: Press and hold the

button for a few seconds to initiate the self-test.
