All parameters are specified at 24V, 0.63A, 230Vac input, 25°C ambient and after a 5 minutes run-in time, unless noted otherwise.
2 Rockwell Automation Publication 1606-RM004A-EN-P - January 2014

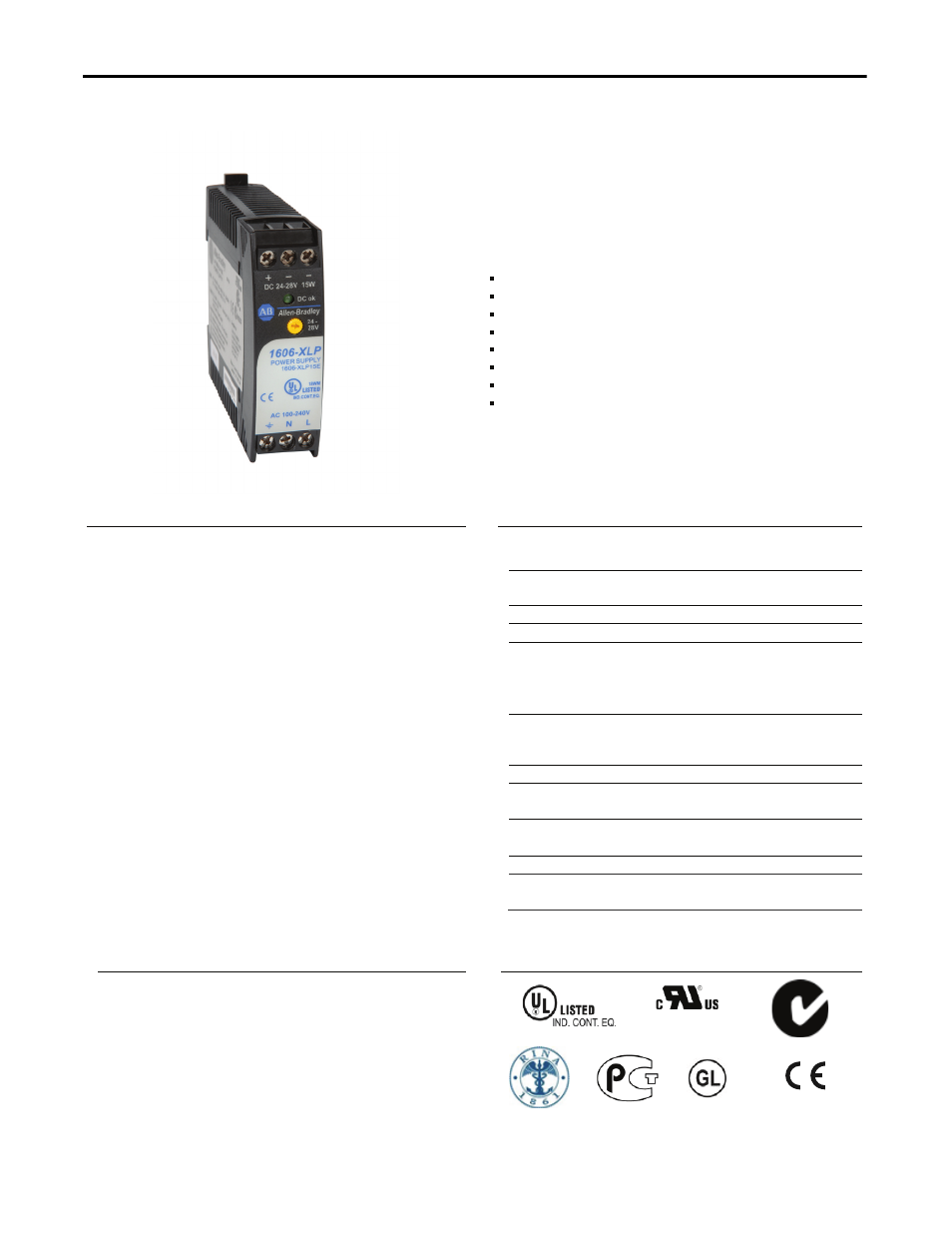

Bulletin 1606 Switched Mode Power Supplies
Power Supply
100-240V Wide Range Input
NEC Class 2 Compliant
Adjustable Output Voltage
Efficiency up to 86.1%
Compact Design, Width only 22.5mm
Full Output Power Between -10°C and +60°C
Large International Approval Package
3 Year Warranty
Description
A compact size, light weight, simple mounting onto the
DIN rail and the utilization of only quality components
are what makes the XLP power supplies do easy to use
and install within seconds.
A rugged electrical and mechanical design as well as a
high immunity against electrical disturbances on the
mains provides reliable output power. This offers
superior protection for equipment which is connected
to the public mains network or is exposed to a critical
industrial environment.
The XLP series offers output voltages from 5 to 56Vdc
and a power rating from 15W to 120W.
Specification Quick Reference
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 0.63A at 24V
0.54A at 28V
Output power 15W
Output ripple < 50mVpp 20Hz to 20MHz
Input voltage AC 100-240V -15% / +10%
Mains frequency 50-60Hz ±6%
AC Input current 0.28 / 0.17A at 120 / 230Vac
Power factor 0.51 / 0.44 at 120 / 230Vac
AC Inrush current typ. 16 /31A peak value at
120/230Vac, 40°C
and cold start
DC Input 88-375Vdc
Efficiency 86.1 / 85.1% at 120 / 230Vac
Losses 2.5 / 2.7W at 120 / 230Vac
Temperature range -10°C to +70°C operational
Derating 0.4W/°C +60 to +70°C
Hold-up time typ. 47 / 196ms at 120 / 230Vac
Dimensions 22.5x75x91mm WxHxD
Weight 130g / 0.29lb
Catalog Numbers
Power Supply 1606-XLP15E 24-28V Standard unit
Certifications
UL 508
UL 60950-1
NEC Class 2
Marine
EMC, LVD, RoHS
GOST R RINA
C-TICK
