8. Cleaning Air Duct
Location of the air filters

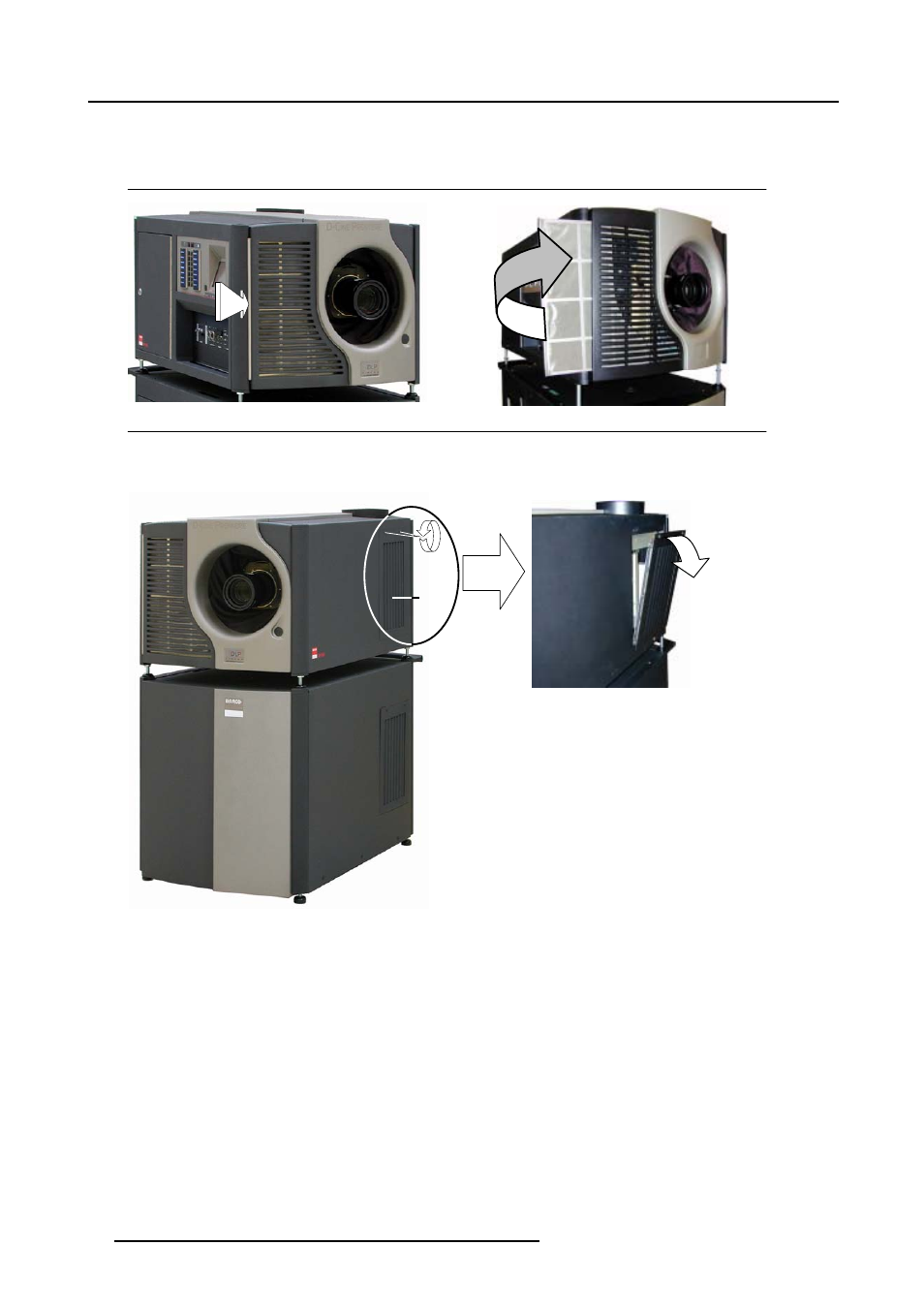

Air filters are placed at the front (A) and at the right side (B) of the projector head.
A
Image 8-2
Air filter at the front of the projector
B
Image 8-3
Air filter at the side of the projector
Removing the air filters
1. Front air filter: grasp the decorative bar of the filter (A) and pull out the air filter of the projector front cover.
2. Side air filter projector head (A): loosen the 2 screws securing the air filter frame to the side cover and remove the filter.
How to clean the air filters
1. Remove most contamination with a vacuum cleaner.
2. Blow remaining dust away with compressed air in an other room or outside.
