5. Non-Cinema Operation
The macro will be executed, resulting in a full image display of the source connected to the respective input module of the ACSAR
2.
Because these macros are also assigned to a button on the control panel, the LED associated to the button will be On.

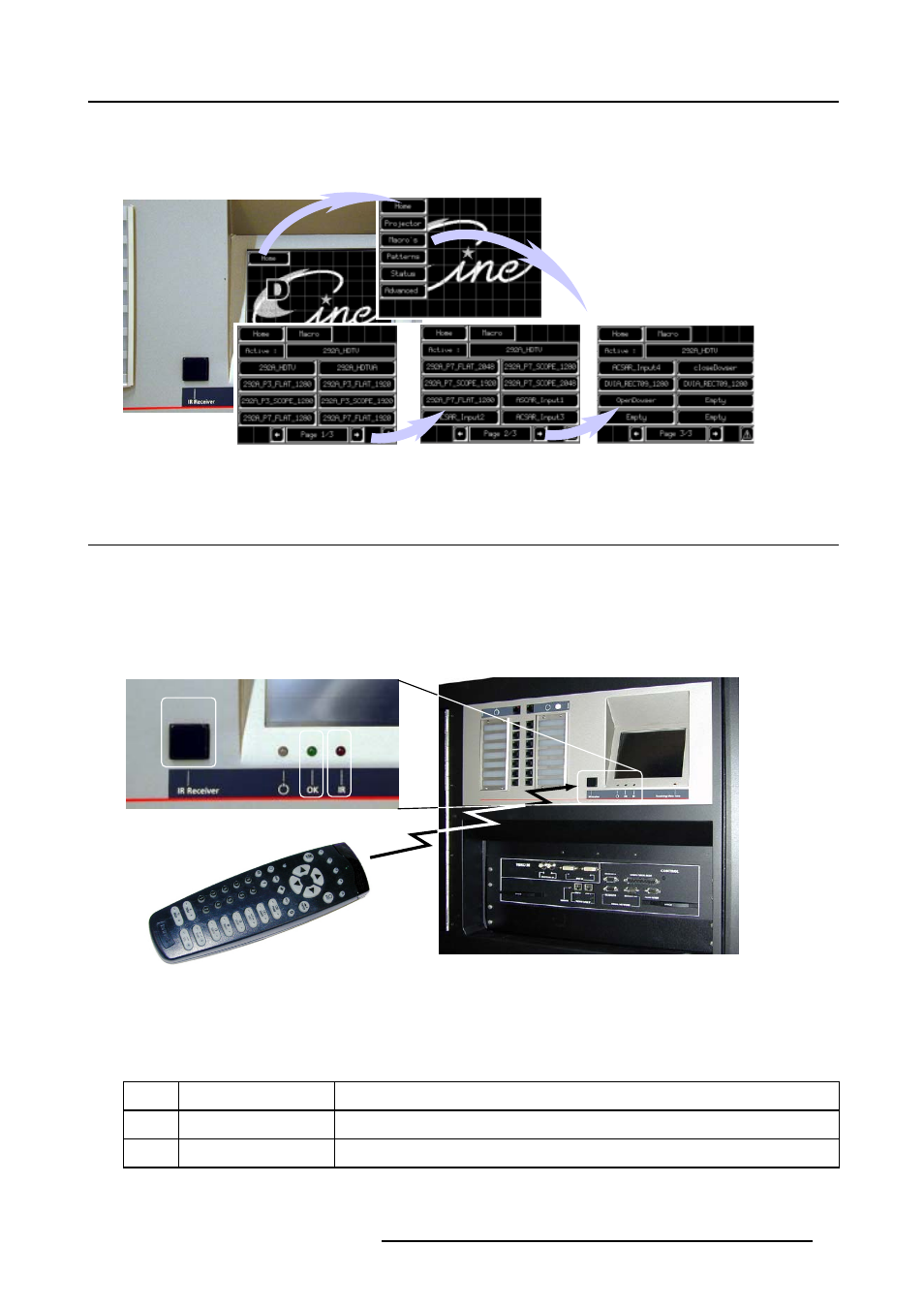

Image 5-4
Macros selection
5.4 Remote Control Functionality
5.4.1
Infra Red Reception on D-Cine Premiere DP100
Operation of the RCU
On the front of the button panel, a window (A) is provided behind which an infra red reception diode is mounted.
To send commands to the projector head, point the front of the Remote Control to that window.
A
B
C
Image 5-5
Pointing the Remote Control
Function of the control LED’s below touch button panel
Ref.
LED name
Description
B
OK
Lighting up of the LED indicates acknowledge of the sent command
C
IR
Blinking of the LED indicates infra red reception
