1305 Dynamic Brake 8
1305-5.11 May, 1999
C
H
(SIDE) (BOTTOM)
G
F
Outer Conduit Entry
28.5mm (1.12") Dia. Inner Conduit Entry
22.2mm (0.87") Dia.
(FRONT)
D
A
B
CAT 1305–MOD–KB005 SER A
BULLETIN 1305 DYNAMIC BRAKE DC POWER
INPUT 680–750 VDC. 2.5 ADC (RMS) BRAKE ON
A–B P\N 151076 REV 01
MADE IN U.S.A.
FOR USE WITH 380/460 VAC BULL. 1336 A.F. DRIVES
(OUTPUT) HEAT DISSIPATION 375 WATTS MAXIMUM
E
Optional
(NEMA Type 1)
KBA09

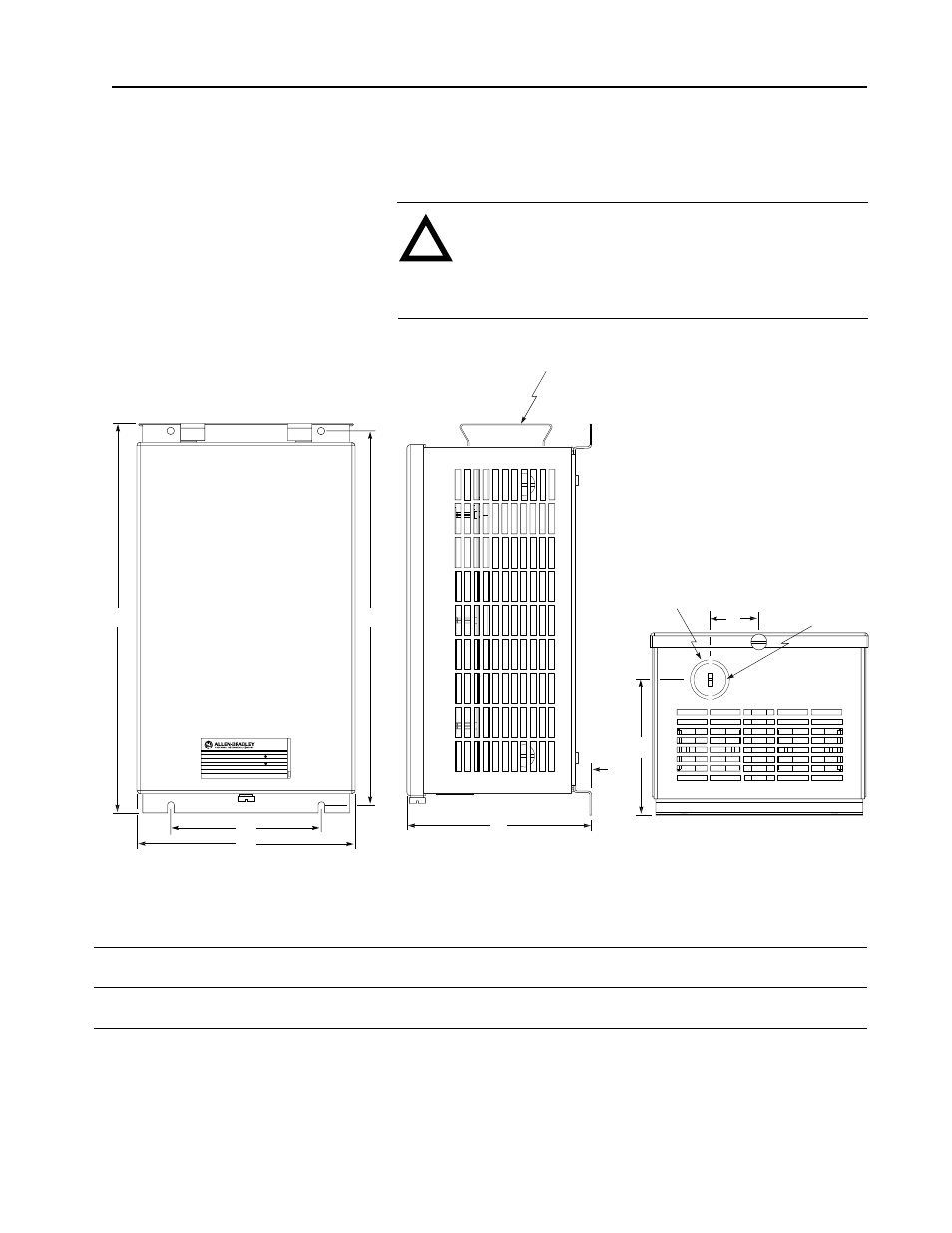

Dimensions, Weights, and
Conduit Entry Locations Important: Dynamic brakes KAA12, KBA03 and KBA06 can be used
with any 1305 drive.
ATTENTION: Use Dynamic Braking Model KBA09 with
Series B of later 1305 Drives only. Component damage or
drive failure will occur if Model KBA09 is used with Series
A 1305 Drives. Braking Model KBA06 may be used on a
5HP Series A 1305 Drive (3HP braking torque maximum).
!
HP Voltage
Catalog
Number Approximate
Shipping Wt. A
Width B
Height C
Depth
D E F G H
5 460V AC 1305-KBA09 5.9
(13) 184.2
(7.25) 327.7
(12.90) 153.9
(6.06) 127.0
(5.00) 315.0
(12.40) 114.6
(4.51) 41.4
(1.63) 12.7
(0.50)
