Chapter 3
Installation
3-7
Enclosed Style Communications
Module Dimensions

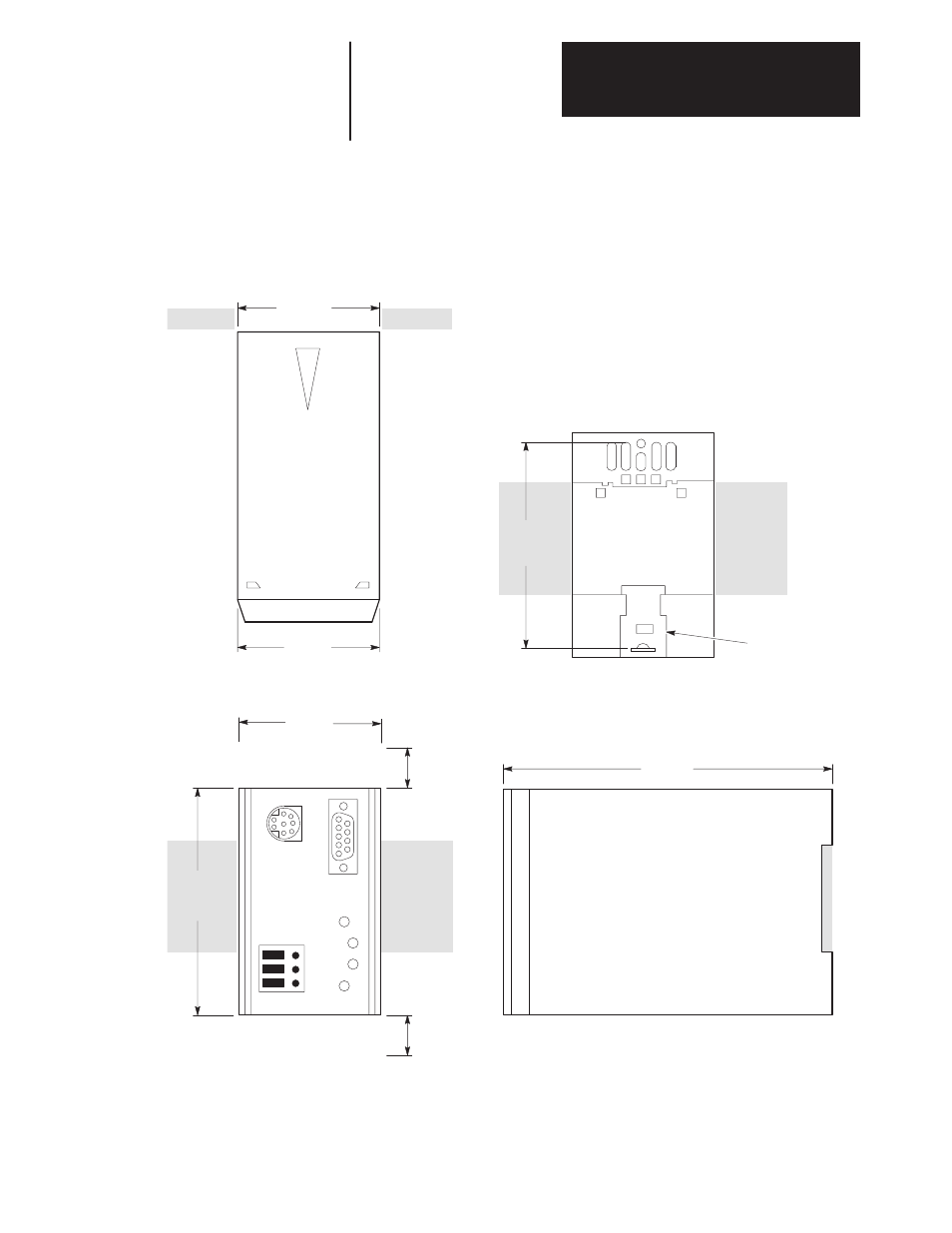

Figure 3.1
Enclosed Style Communications Module Dimensions
DIN RAIL
45mm
(1.8)
BACK VIEW
(4.8)
123mm
SIDE VIEW
(1.8)
45mm
(1.75)
44mm
NOTES:
1. The enclosure requires clearance at the top and bottom
for proper cooling. Additional space is required if access
to DIP switches is desired without having to remove the
device.
2. All dimensions in millimeters and (inches).
FRONT VIEW
TOP VIEW
25mm
(1)
DIN Rail
Mounting Clip
25mm
(1)
70mm
(2.7)
DIN RAIL
76mm
(3.0)
DIN
RAIL
AB0406A
DIN RAIL
DIN RAIL
