5
O
PERATION
Load

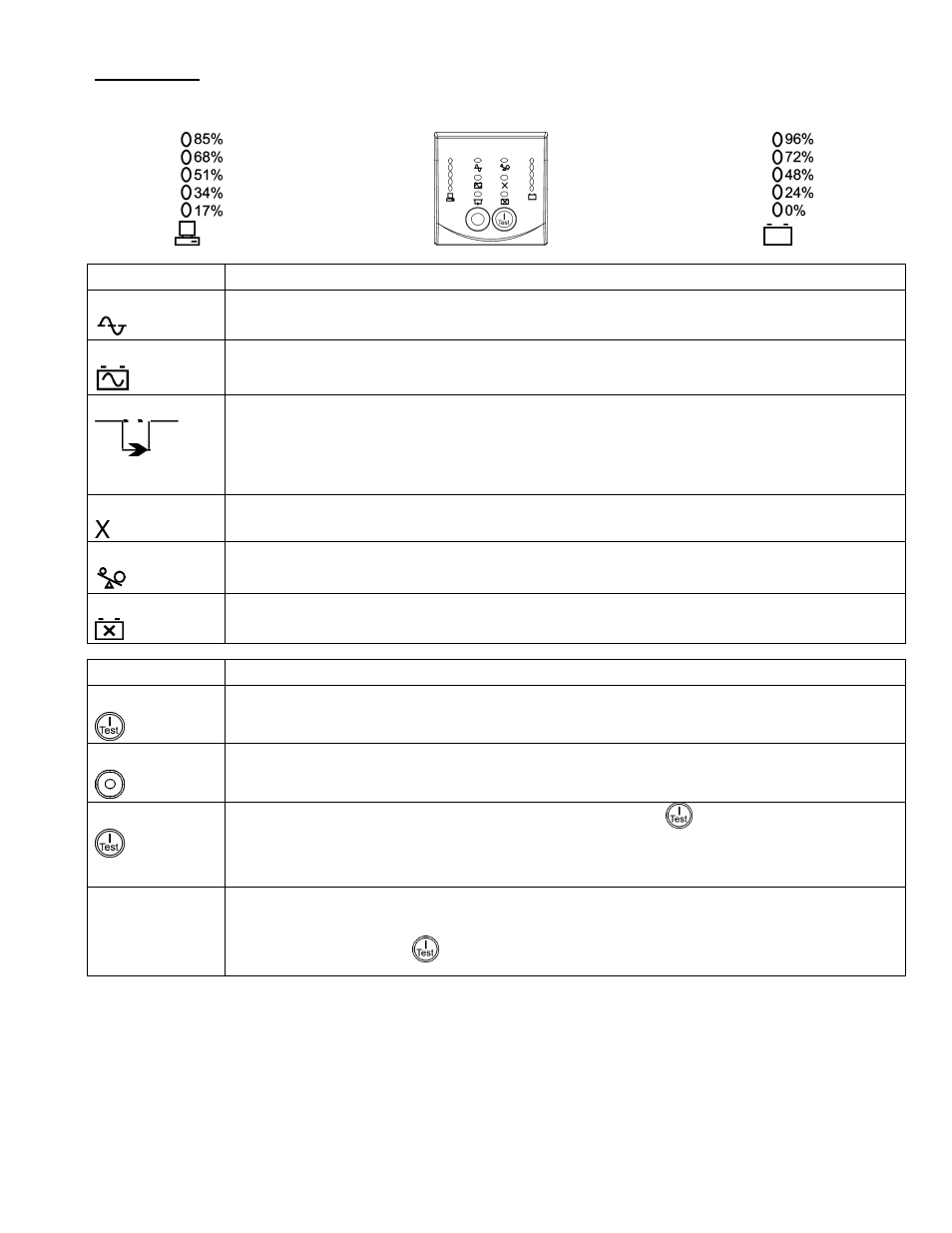

F RONT D ISPLAY
Battery Charge
Indicator Description
Online
The Online LED illuminates when the UPS is drawing utility power and performing double conversion to
supply power to connected equipment.
On Battery
The UPS is supplying battery power to the connected equipment.
Bypass
The Bypass LED illuminates indicating that the UPS is in bypass mode. Utility power is sent directly to
connected equipment during bypass mode operation. Bypass mode operation is the result of an internal
UPS fault, an overload condition or a user initiated command either through an accessory or the manual
bypass switch. Battery operation is not available while the UPS is in bypass mode. Refer to
Troubleshooting in this manual.
Fault
The UPS detects an internal fault.
Refer to Troubleshooting in this manual.
Overload
An overload condition exists. See Troubleshooting.
Replace Battery
The battery is disconnected or must be replaced. See Troubleshooting.
Feature Function
Power On
Press this button to turn on the UPS. (See below for additional capabilities.)
Power Off
Press this button to turn off the UPS.
Cold Start
When there is no utility power and the UPS is off, press and hold the button to power up the UPS and
connected equipment.
The UPS will emit two beeps. During the second beep, release the button.
Self-Test Automatic: The UPS performs a self-test automatically when turned on, and every two weeks thereafter
(by default). During the self-test, the UPS briefly operates the connected equipment on battery.
Manual: Press and hold the button for a few seconds to initiate the self-test.
